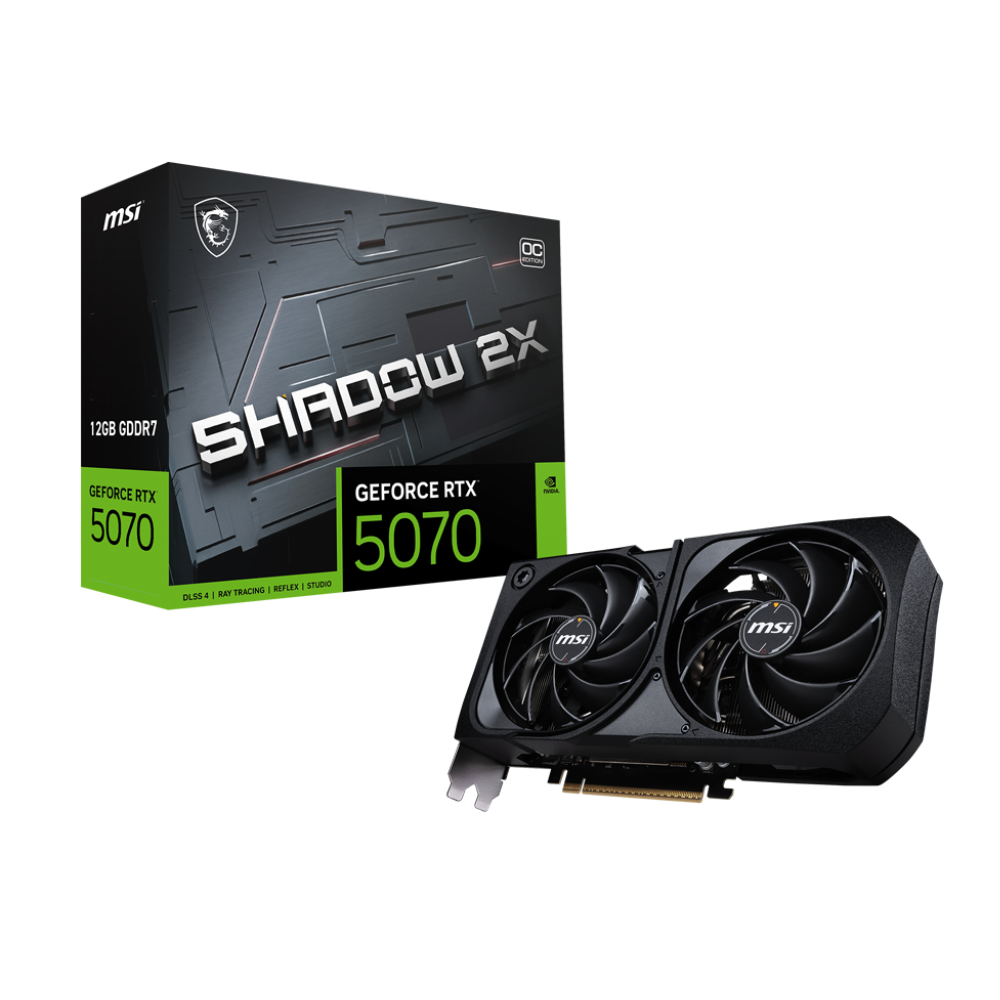

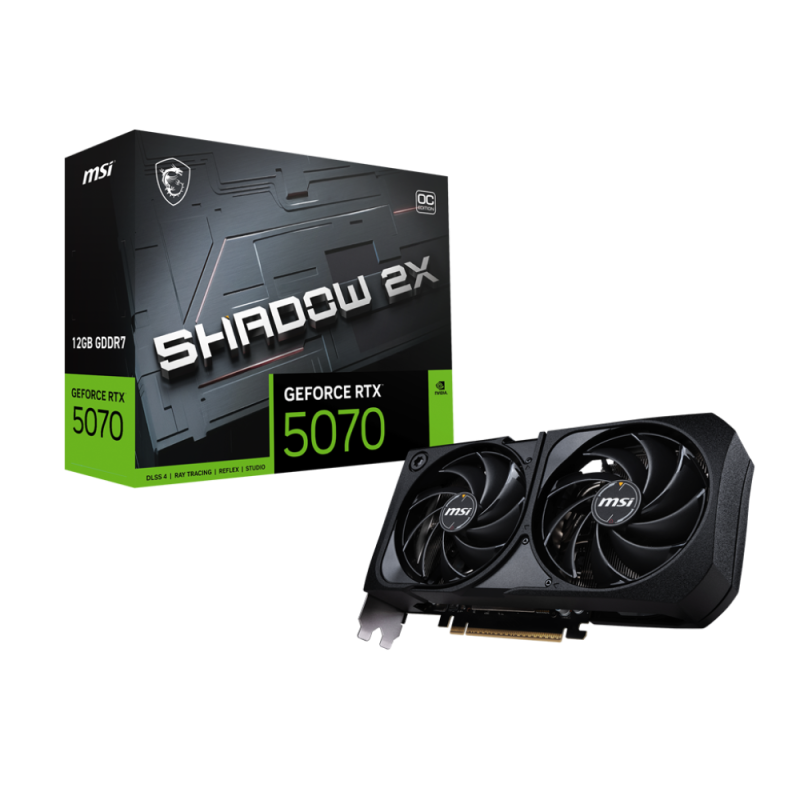

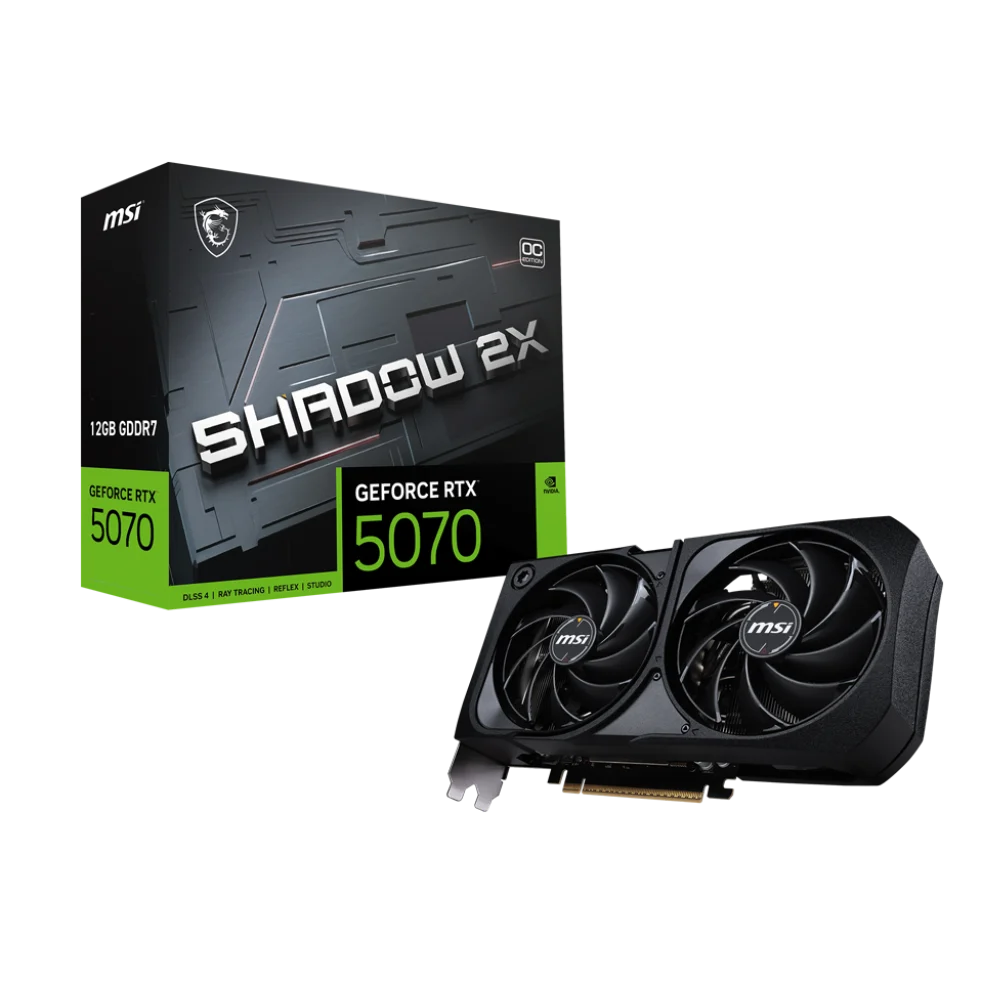

MSI GeForce RTX 5070 Shadow 2X OC 12GB Nvidia Graphic Card

The MSI GeForce RTX 5070 Shadow 2X OC 12GB is a performance-focused graphics card built on the NVIDIA Blackwell architecture and powered by DLSS 4 technology. Carrying MSI model number G5070-12S2C, it targets gamers and creators who want capable mid-to-high-tier GPU performance in a compact form factor that is SFF-Ready Enthusiast GeForce certified, meaning it is designed to fit smaller chassis that support the SFF-Ready Enthusiast standard. At the heart of the card sit 6,144 CUDA cores running at a boost clock of 2,542 MHz, with an Extreme Performance mode reachable via MSI Center pushing the clock to 2,557 MHz. The 12 GB GDDR7 frame buffer operates across a 192-bit memory bus at 28 Gbps, delivering substantial memory bandwidth for high-resolution gaming and content workloads. MSI’s thermal solution centres on a dual-fan design using TORX Fan 5.0 technology. Ring arcs link three sets of 22-degree-tilted fan blades per fan, which MSI states increases airflow by 23% compared to standard axial fans. A solid nickel-plated copper baseplate rapidly captures heat from the GPU die and memory modules, channelling it into square-profile Core Pipes that maximise contact surface area against the baseplate before dispersing heat across the aluminium heatsink. A vented reinforcing backplate allows exhaust air to pass directly through rather than recirculating inside the case. The Zero Frozr feature halts both fans entirely when the GPU temperature is low, resulting in silent operation during light workloads or desktop use. Connectivity is handled by three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous displays with a maximum digital resolution of 7680×4320 (8K). The HDMI port supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, and HDR. The card interfaces with the motherboard via PCI Express Gen 5, draws power through a single 16-pin connector, carries a TDP of 250 W, and MSI recommends a minimum 650 W power supply unit. Additional feature support includes DirectX 12 Ultimate, OpenGL 4.6, G-SYNC, and HDCP. Card dimensions are 231 × 126 × 50 mm with a card weight of 724 g. MSI Center software enables real-time monitoring and tuning, while MSI Afterburner is supported for advanced overclocking. Verified Specifications: • GPU: NVIDIA GeForce RTX 5070 (Blackwell architecture) • CUDA Cores: 6,144 • Memory: 12 GB GDDR7, 192-bit bus, 28 Gbps • Boost Clock: 2,542 MHz | Extreme Performance: 2,557 MHz (MSI Center) • Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 7680×4320 | Max Displays: 4 • TDP: 250 W | Power Connector: 16-pin × 1 | Recommended PSU: 650 W • Interface: PCIe Gen 5 • DirectX: 12 Ultimate | OpenGL: 4.6 • Dimensions: 231 × 126 × 50 mm | Weight: 724 g • Model: G5070-12S2C
