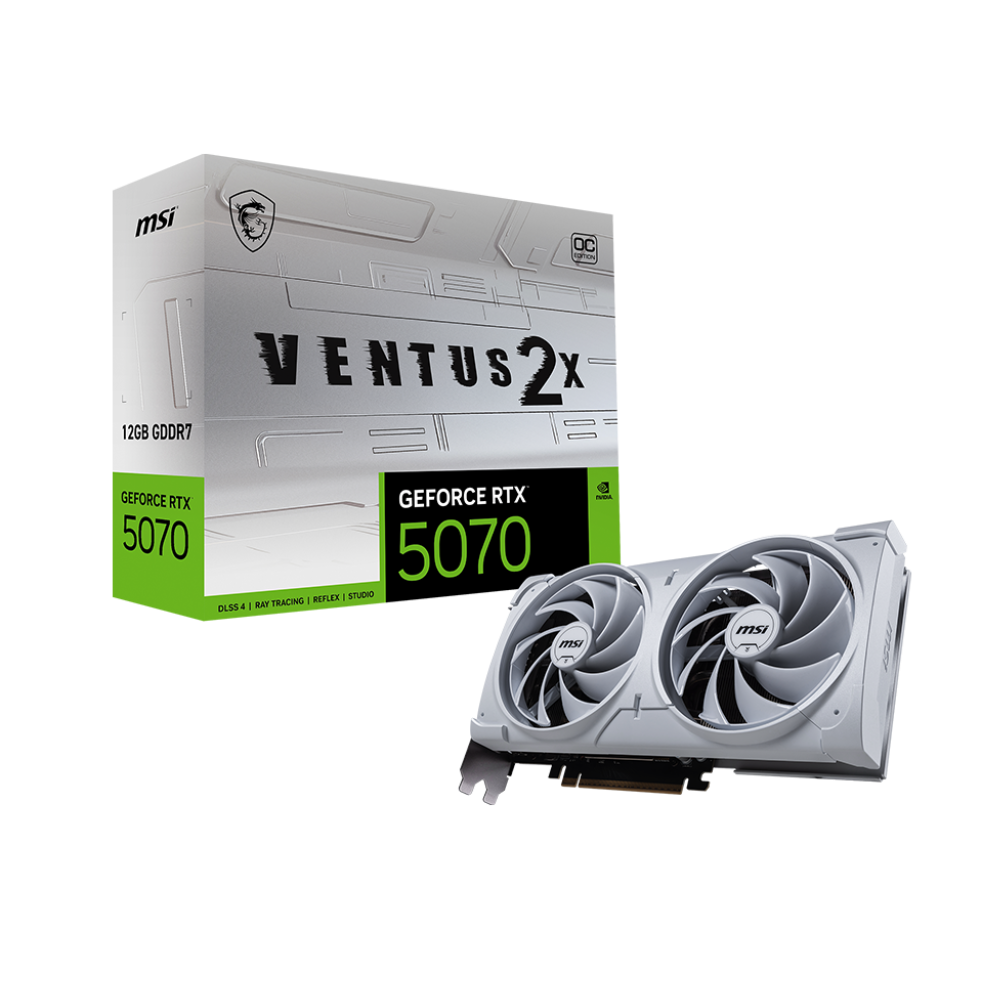

MSI GeForce RTX 5070 Ventus 2X OC 12GB White Nvidia Graphic Card
MPN MSI-GEFORCE-RTX-5070-VENTUS-2X-OC-WHITE · Brand MSI
The MSI GeForce RTX 5070 Ventus 2X OC 12GB White delivers 6,144 CUDA cores, 12 GB GDDR7 memory at 28 Gbps, DLSS 4, and full ray tracing in a compact dual-fan white design — ideal for high-refresh-rate 1440p and 4K gaming
Inclusive of GST · GST invoice available
Overview
The MSI GeForce RTX 5070 Ventus 2X OC 12GB White is a mid-to-high-range graphics card built on the NVIDIA Blackwell architecture. It is designed for enthusiast gamers and content creators who want capable ray tracing performance, AI-accelerated rendering, and a clean white aesthetic in a dual-fan, compact form factor. At the heart of the card sits the NVIDIA GeForce RTX 5070 GPU with 6,144 CUDA cores and 12 GB of GDDR7 memory running at 28 Gbps over a 192-bit memory bus. The PCIe Gen 5 interface ensures maximum bandwidth compatibility with current-generation platforms. The card draws 250 W via a single 16-pin connector and MSI recommends pairing it with at least a 650 W power supply. The Ventus 2X cooler uses a dual-fan design housed in a white shroud measuring 236 × 126 × 50 mm — compact enough for most mid-tower and some small-form-factor cases. MSI Center software lets you monitor temperatures, tweak fan curves, and leverage the AI Tuning feature without leaving the desktop. On the display side, the card provides three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous displays, a maximum digital resolution of 7680 × 4320 (8K), and refresh rates as high as 4K 480 Hz or 8K 120 Hz with DSC. NVIDIA G-SYNC, HDR, and Gaming VRR are all supported natively. Software features include NVIDIA DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp for reduced system latency in competitive titles, full ray tracing with neural rendering powered by fourth-gen RT Cores and fifth-gen Tensor Cores, and the ninth-generation NVIDIA Encoder for streaming and video capture. NVIDIA Studio drivers and the NVIDIA app provide stability for creative workloads in video editing, 3D rendering, and graphic design applications. Verified Specifications: • GPU: NVIDIA GeForce RTX 5070 (Blackwell architecture) • CUDA Cores: 6,144 • Memory: 12 GB GDDR7, 28 Gbps, 192-bit bus • Interface: PCI Express Gen 5 • Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 7680 × 4320 • TDP: 250 W | Power Connector: 16-pin ×1 • Recommended PSU: 650 W • Dimensions: 236 × 126 × 50 mm • DirectX 12 Ultimate | OpenGL 4.6 | G-SYNC supported • Model Number: G5070-12V2CW

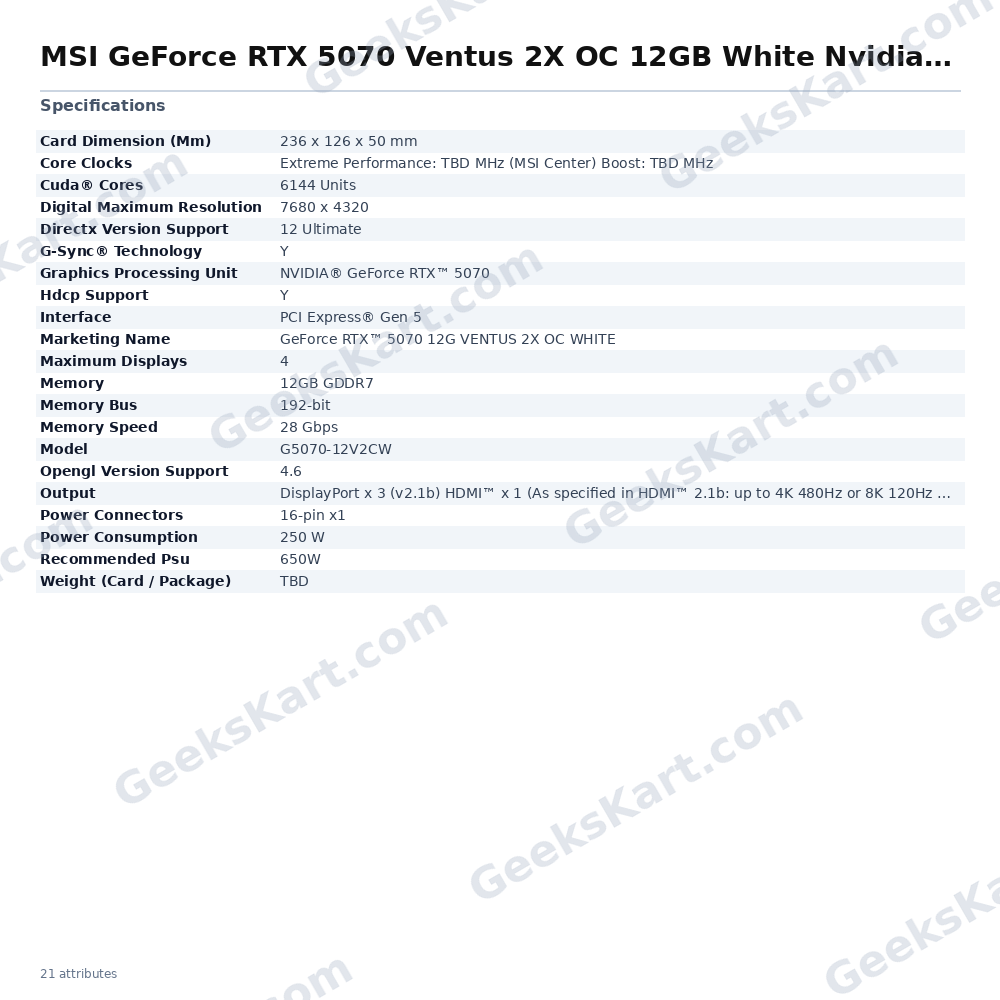

Datasheet
| Memory Speed | 28 Gbps |
|---|---|
| Interface | PCI Express® Gen 5 |
| Recommended PSU | 650W |
| Power Consumption | 250 W |
| Memory | 12GB GDDR7 |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| Memory Bus | 192-bit |
| Model | G5070-12V2CW |
| Core Clocks | Extreme Performance: TBD MHz (MSI Center) Boost: TBD MHz |
| Cuda® Cores | 6144 Units |
| Hdcp Support | Y |
| Marketing Name | GeForce RTX™ 5070 12G VENTUS 2X OC WHITE |
| Maximum Displays | 4 |
| Power Connectors | 16-pin x1 |
| Card Dimension (Mm) | 236 x 126 x 50 mm |
| G-Sync® Technology | Y |
| Opengl Version Support | 4.6 |
| Directx Version Support | 12 Ultimate |
| Weight (Card / Package) | TBD |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 |
| Digital Maximum Resolution | 7680 x 4320 |
