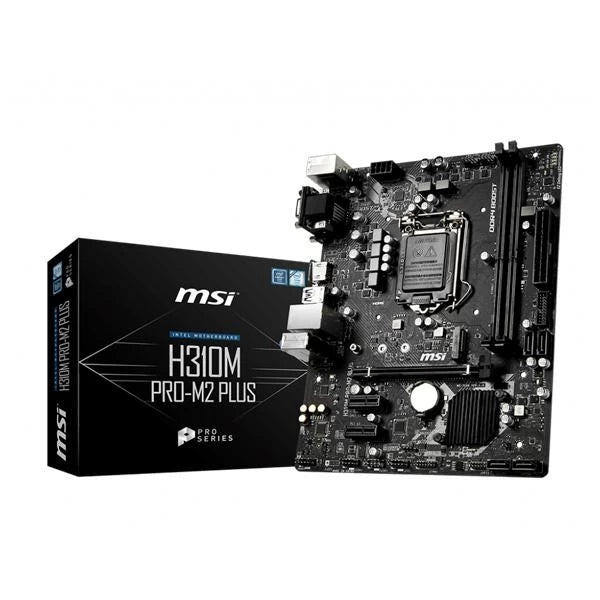

MSI H310M Pro-M2 Plus DDR4 Intel Motherboard
MPN MSI-H310M-PRO-M2-PLUS · Brand MSI
The MSI H310M Pro-M2 Plus is an Intel H310 mATX motherboard for LGA 1151 8th/9th Gen processors, featuring DDR4 up to 32 GB, M.2 NVMe/SATA storage, and triple display output via VGA, DVI-D, and HDMI 1.4
Inclusive of GST · GST invoice available
Overview
The MSI H310M Pro-M2 Plus is a Micro-ATX motherboard built on the Intel H310 chipset, designed to support 8th and 9th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA 1151 socket. Its compact 9.1 x 7.3 inch (23.0 x 18.5 cm) form factor makes it well-suited for space-efficient builds without sacrificing essential connectivity. The board features two DDR4 memory slots supporting speeds of 2133, 2400, and up to 2666 MHz in dual-channel configuration, with a maximum capacity of 32 GB. Intel Extreme Memory Profile (XMP) support allows compatible RAM kits to run at their rated speeds via a simple BIOS toggle. For storage, a single M.2 Key-M slot supports both PCIe 2.0 x4 (up to 20 Gb/s) and SATA 6 Gb/s drives in 2242, 2260, and 2280 form factors. Note that installing an M.2 SATA SSD will disable the SATA1 port. Four additional SATA 6 Gb/s ports accommodate traditional drives for expanded capacity. Display output is handled through three integrated graphics ports on the rear panel: VGA (up to 2048x1536 @ 50 Hz), DVI-D (up to 1920x1200 @ 60 Hz), and HDMI 1.4 (up to 4096x2160 @ 30 Hz), with support for up to two simultaneous displays. Note that processors with an 'F' suffix do not support integrated graphics. Audio is managed by a Realtek ALC887 codec delivering 7.1-channel High Definition audio. The isolated audio circuit design with separated PCB layers and de-pop protection helps reduce signal interference and audio noise. Connectivity includes an Intel I219-V Gigabit LAN controller, four USB 3.1 Gen1 ports and six USB 2.0 ports (a mix of rear panel and internal headers), plus a PS/2 combo port. Two fan headers (4-pin CPU and 4-pin system) support both DC and PWM control for flexible thermal management. MSI's EZ Debug LED simplifies troubleshooting by indicating POST failure points, while the reinforced PCIe Steel Slot adds mechanical protection to the primary x16 slot. Verified Specifications: Chipset: Intel H310 | Socket: LGA 1151 | CPU Support: 8th/9th Gen Intel Core, Pentium Gold, Celeron | Memory: 2x DDR4 slots, max 32 GB, DDR4-2133/2400/2666, Dual Channel, XMP | Expansion: 1x PCIe 3.0 x16, 2x PCIe 2.0 x1 | Storage: 4x SATA 6 Gb/s, 1x M.2 (PCIe 2.0 x4 / SATA) | Display: VGA, DVI-D, HDMI 1.4 | Audio: Realtek ALC887, 7.1-CH HD | LAN: Intel I219-V Gigabit | USB: 4x USB 3.1 Gen1, 6x USB 2.0 | Form Factor: mATX, 9.1 x 7.3 in | OS: Windows 10 64-bit | Warranty: 3 Years

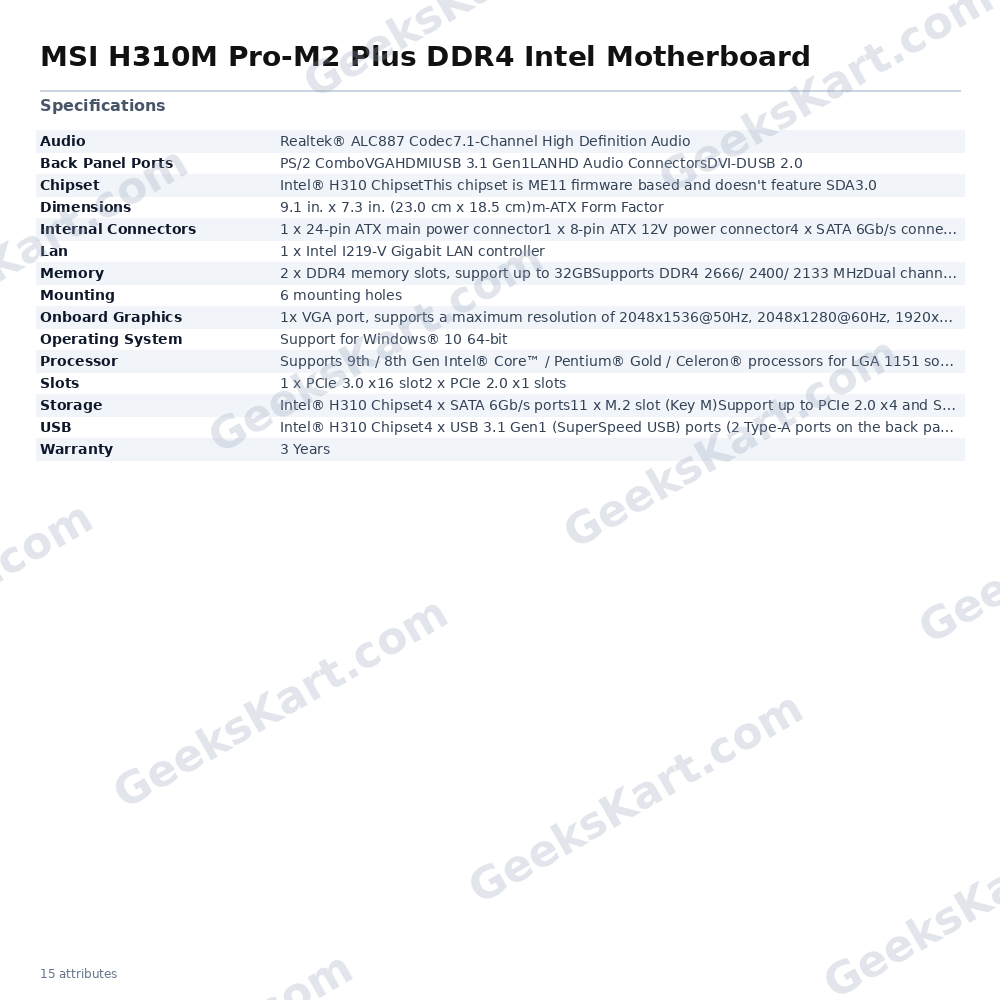

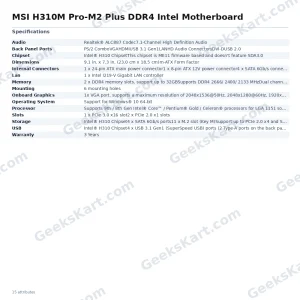

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® H310 ChipsetThis chipset is ME11 firmware based and doesn't feature SDA3.0 |
| Lan | 1 x Intel I219-V Gigabit LAN controller |
| USB | Intel® H310 Chipset4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
| Audio | Realtek® ALC887 Codec7.1-Channel High Definition Audio |
| Slots | 1 x PCIe 3.0 x16 slot2 x PCIe 2.0 x1 slots |
| Memory | 2 x DDR4 memory slots, support up to 32GBSupports DDR4 2666/ 2400/ 2133 MHzDual channel memory architectureSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® H310 Chipset4 x SATA 6Gb/s ports11 x M.2 slot (Key M)Support up to PCIe 2.0 x4 and SATA 6Gb/sSupports 2242/ 2260 /2280 storage devicesSATA1 port will be unavailable when an M.2 SATA SSD is installed in the M2_1 slot |
| Mounting | 6 mounting holes |
| Processor | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Dimensions | 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)m-ATX Form Factor |
| Back Panel Ports | PS/2 ComboVGAHDMIUSB 3.1 Gen1LANHD Audio ConnectorsDVI-DUSB 2.0 |
| Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz11x DVI-D port, supports a maximum resolution of 1920×1200@60Hz11x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz1*No Display support when using the Processor model with suffix “F”Supports up to 2 displays simultaneously |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)1 x 4-pin CPU fan connector1 x 4-pin system fan connector1 x Front panel audio connector1 x Serial port connector2 x Front panel connectors1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper |
