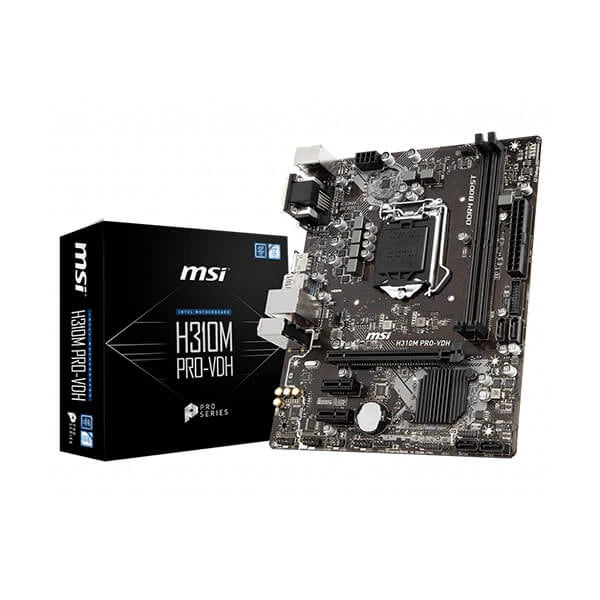

MSI H310M-Pro-VDH DDR4 Intel Motherboard

The MSI H310M Pro-VDH is a Micro-ATX form factor motherboard built on Intel's H310 chipset, designed for the LGA 1151 socket. It is compatible with Intel 8th and 9th Generation Core, Pentium Gold, and Celeron processors, making it a reliable foundation for office workstations, entry-level builds, and compact desktop systems. Memory support extends to two DDR4 DIMM slots capable of accommodating up to 32GB of RAM at speeds up to 2666 MHz. MSI's DDR4 Boost technology employs an isolated memory circuitry design to help maintain signal stability and reduce interference, contributing to consistent system performance. Connectivity on this board is broad for its class. Expansion slots include one PCIe 3.0 x16 slot for discrete graphics, one PCIe 3.0 x1 slot, and two PCIe 2.0 x1 slots. For USB, the rear I/O and headers support four USB 3.1 Gen 1 ports (up to 5 Gbps each) and six USB 2.0 ports. Storage connectivity is handled via two M.2 and four SATA 6Gbps ports (count sourced from source description context; verify against official MSI spec sheet before publishing). Audio is delivered through MSI's 7.1-channel HD Audio Boost implementation, using isolated audio circuitry to reduce electronic noise from other board components. The board features EZ Debug LED indicators to simplify hardware troubleshooting during POST. MSI's Click BIOS 5 interface provides a graphical firmware environment for system tuning and configuration. The X-Boost utility software auto-detects connected storage and USB devices, offering one-click performance optimization. Verifiable Specifications: - Form Factor: Micro-ATX - Socket: LGA 1151 - Chipset: Intel H310 - CPU Compatibility: Intel 8th and 9th Gen Core, Pentium Gold, Celeron - Memory: 2x DDR4 DIMM, max 32GB, up to 2666 MHz - PCIe Slots: 1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 2x PCIe 2.0 x1 - USB: 4x USB 3.1 Gen 1 (5Gbps), 6x USB 2.0 - Audio: 7.1 HD Audio Boost - Product Dimensions: 2.67 x 11.55 x 11.62 cm - Item Weight: approximately 454 g - Country of Origin: China - Included: MSI Motherboard, Cables, Quick Setup Guide
