MSI H410M-VH Pro DDR4 Intel Motherboard

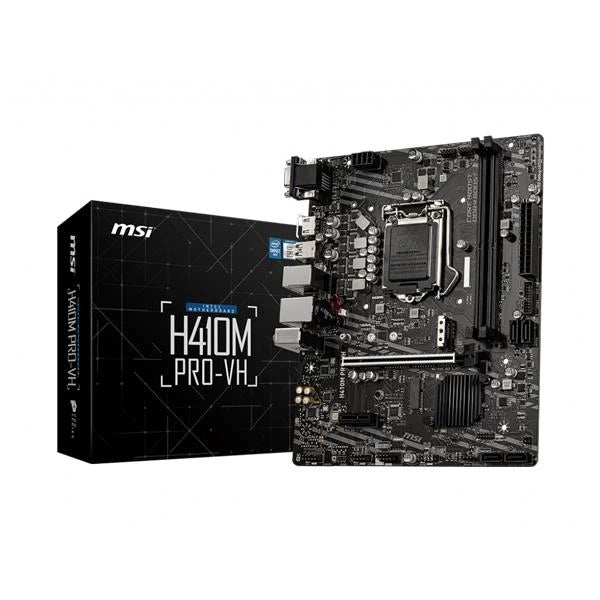

The MSI H410M PRO-VH is a Micro-ATX motherboard built around Intel’s H410 chipset and the LGA 1200 socket, making it a reliable foundation for 10th Generation Intel Core, Pentium Gold, and Celeron processor-based desktop systems. Its compact 9.3 × 7.5 in (23.6 × 19.0 cm) footprint fits into a wide range of mid-tower and small-form-factor cases that accept Micro-ATX boards. Memory support centres on two DDR4 DIMM slots capable of holding up to 64 GB of non-ECC, unbuffered RAM. Systems running Intel Core i7 or i9 processors can reach DDR4-2933 MHz, while Core i5 and below platforms run at up to DDR4-2666 MHz. The board supports Dual-Channel mode and is compatible with Intel Extreme Memory Profile (XMP) kits. For graphics, the board provides one PCIe 3.0 x16 slot routed from the CPU, ideal for a discrete graphics card, and one PCIe 3.0 x1 slot from the H410 PCH for expansion cards. Onboard video output is available via a VGA port (up to 2048×1536 @ 50 Hz or 1920×1200 @ 60 Hz) and an HDMI 1.4 port (up to 4096×2160 @ 30 Hz), supporting Intel processor-integrated graphics. Storage is handled by four SATA 6 Gb/s ports plus a Key-M M.2 slot that accepts PCIe 3.0 x4 or SATA 6 Gb/s drives in 2242, 2260, and 2280 form factors. A separate Key-E M.2 slot accommodates optional Wi-Fi module cards. Connectivity on the rear IO includes two USB 3.2 Gen 1 (5 Gbps) Type-A ports, four USB 2.0 Type-A ports, PS/2 keyboard and mouse, Gigabit Ethernet via Intel I219V controller, HDMI, VGA, and multi-channel audio jacks. Two additional USB 3.2 Gen 1 ports and two USB 2.0 ports are available via internal headers. Audio is powered by a Realtek ALC892/ALC897 codec delivering 7.1-channel High Definition Audio, with the audio circuitry isolated on a dedicated PCB layer. Fan management supports DC and PWM fan detection on one 4-pin CPU header and one 4-pin system fan header. Four onboard EZ Debug LEDs assist with hardware troubleshooting. Additional internal connectors include a 24-pin ATX main power, 8-pin ATX 12 V power, TPM module header, chassis intrusion header, serial port header, front panel audio header, and a clear CMOS jumper. The board ships with a three-year warranty and carries Windows 10 64-bit support. Verified Specifications: • Socket: LGA 1200 • Chipset: Intel H410 • Form Factor: Micro-ATX (23.6 × 19.0 cm) • Memory: 2× DDR4 DIMM, max 64 GB, up to DDR4-2933 (i7/i9) / DDR4-2666 (i5 and below), Dual-Channel, XMP support • Expansion: 1× PCIe 3.0 x16 (CPU), 1× PCIe 3.0 x1 (PCH), 1× M.2 Key-E (Wi-Fi only) • Storage: 4× SATA 6 Gb/s, 1× M.2 Key-M (PCIe 3.0 x4 / SATA, 2242/2260/2280) • Display Output: 1× VGA, 1× HDMI 1.4 • USB: 2× USB 3.2 Gen 1 rear + 2× via header; 4× USB 2.0 rear + 2× via header • LAN: Intel I219V Gigabit Ethernet • Audio: Realtek ALC892/ALC897, 7.1-channel HD Audio • OS Support: Windows 10 64-bit • Warranty: 3 Years
