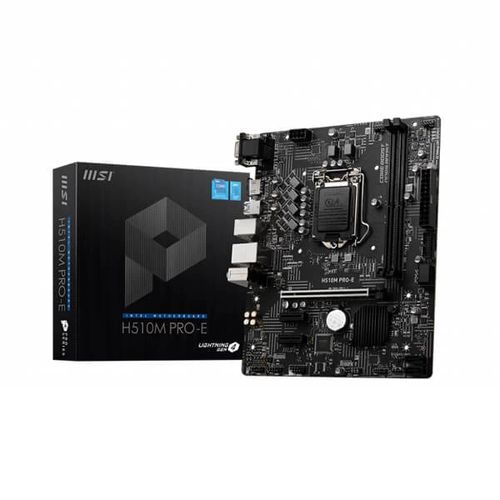

MSI H510M Pro-E DDR4 Intel Motherboard

The MSI H510M Pro-E is a Micro-ATX motherboard built on Intel's H510 chipset, designed to support both 10th and 11th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA 1200 socket. It is a practical choice for home office builds, entry-level workstations, and compact productivity systems where reliability and stable daily performance matter most. Memory options are flexible: two DDR4 DIMM slots accept up to 64 GB of non-ECC, unbuffered RAM with dual-channel support. Speeds reach up to 2933 MHz (JEDEC) with 10th Gen processors and up to 3200 MHz with 11th Gen processors, with Intel Extreme Memory Profile (XMP) also supported. MSI's DDR4 Boost technology isolates memory traces on the PCB to deliver cleaner signal integrity. For discrete graphics, a single PCIe x16 slot runs at PCIe 4.0 bandwidth when paired with an 11th Gen CPU, or PCIe 3.0 with a 10th Gen CPU. Two additional PCIe 3.0 x1 slots from the PCH provide room for expansion cards. If a dedicated GPU is not installed, onboard display output is available via a VGA port (up to 2048×1536 at 60 Hz) and an HDMI 1.4 port (up to 4K at 30 Hz). Storage is handled by four SATA 6 Gb/s ports routed through the H510 chipset. USB connectivity includes four USB 3.2 Gen 1 (5 Gbps) ports and six USB 2.0 ports split between the rear panel and internal headers. Audio is delivered by a Realtek ALC897 codec supporting 7.1-channel high-definition output. Networking is provided by a Realtek RTL8111 Gigabit LAN controller. MSI's FROZR AI Cooling feature monitors CPU and GPU temperatures and automatically adjusts system fan duty cycles via MSI AI Engine. Fan headers include one 4-pin CPU fan connector and one 4-pin system fan connector. The board also carries a TPM module connector, chassis intrusion header, serial port connector, and a clear CMOS jumper for straightforward maintenance. Verified Specifications: - Form Factor: mATX — 9.3 × 7.5 in (23.6 × 19.0 cm), 6 mounting holes - Socket: LGA 1200 - Chipset: Intel H510 - CPU Support: 10th & 11th Gen Intel Core, Pentium Gold, Celeron - Memory: 2× DDR4, dual-channel, up to 64 GB; up to 3200 MHz (11th Gen / XMP) - Expansion: 1× PCIe x16 (PCIe 4.0/3.0 from CPU) + 2× PCIe 3.0 x1 (from PCH) - Storage: 4× SATA 6 Gb/s - Display: 1× VGA (2048×1536@60Hz) + 1× HDMI 1.4 (4K@30Hz) - USB: 4× USB 3.2 Gen 1 5Gbps + 6× USB 2.0 - Audio: Realtek ALC897, 7.1-channel HD - LAN: Realtek RTL8111 Gigabit - OS: Windows 10 64-bit - Warranty: 3 Years
