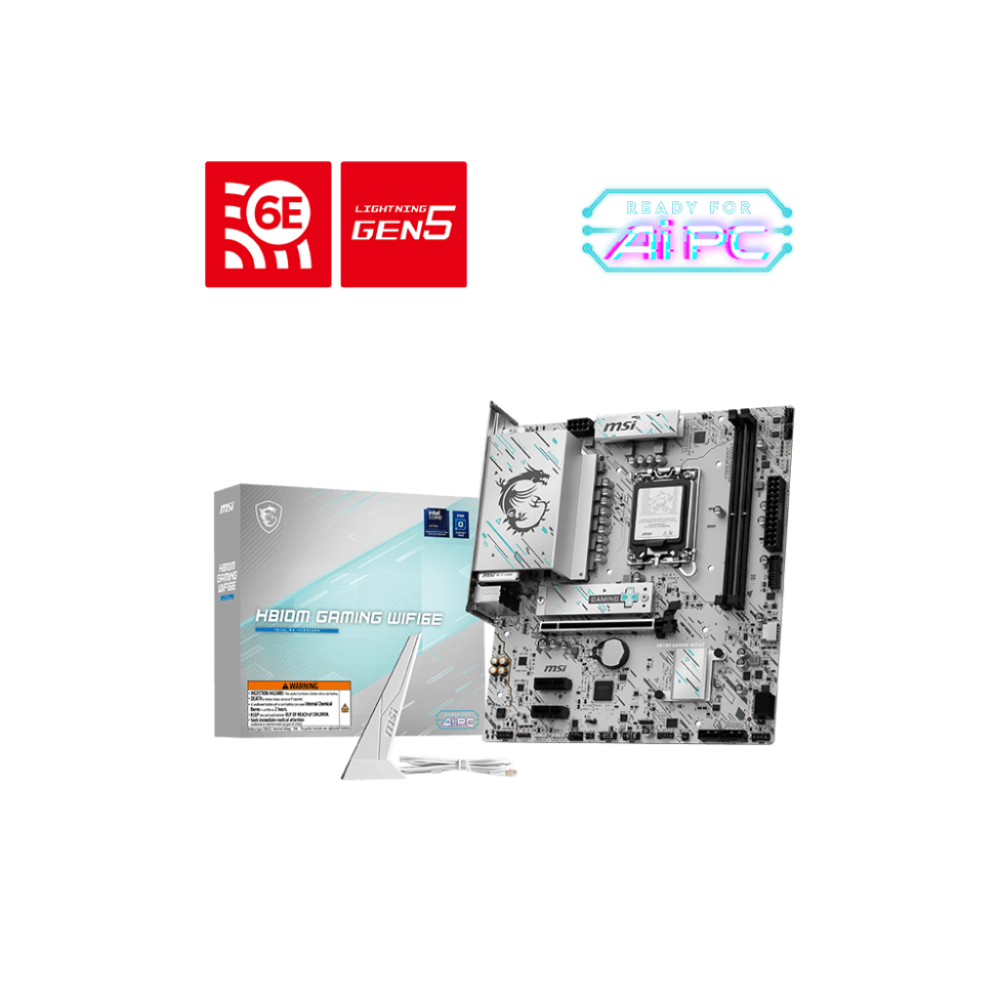

MSI H810M Gaming Wifi6E DDR5 Intel Motherboard ( White )

The MSI H810M Gaming WiFi 6E is a Micro-ATX motherboard built on Intel’s H810 chipset, designed to support Intel Core Ultra Series 2 processors in the LGA 1851 socket. Its clean white aesthetic with geometric accents makes it a natural fit for white-themed builds, while its feature set targets gamers and content creators who need reliable connectivity and storage performance without moving to a full-size board. Memory support is a clear highlight: two DDR5 UDIMM slots accommodate up to 128 GB of non-ECC unbuffered DDR5, with JEDEC-rated speeds at 4800 MT/s and overclocked profiles reaching 6400+ MT/s. Both 1DPC single-rank and 1DPC dual-rank configurations top out at 6400+ MT/s. Intel XMP 3.0 profiles and MSI’s Memory Extension Mode let enthusiasts fine-tune latency and frequency with minimal manual intervention, and CUDIMM support broadens compatibility with the latest memory modules. For expansion and storage, the primary PCIe x16 slot runs at PCIe 5.0 bandwidth from the CPU — enough headroom for today’s fastest discrete GPUs. Two additional PCIe 4.0 x1 slots come from the chipset. The single M.2 slot (2242/2260/2280) operates at up to PCIe 4.0 x4 via the chipset, and four SATA 6 Gb/s ports round out the storage options. An M.2 Shield Frozr heatsink helps keep the NVMe drive thermally stable under sustained workloads. Connectivity is broad for a compact board. Networking is handled by a Realtek 8126 5 Gbps wired LAN controller paired with an integrated Wi-Fi 6E module (802.11 a/b/g/n/ac/ax) capable of up to 2.4 Gbps on the 6 GHz band at 160 MHz channel width, plus Bluetooth 5.3. The rear I/O includes a USB 20 Gbps Type-C port, two USB 5 Gbps Type-A ports, and two USB 2.0 ports. Internally, headers add four USB 2.0 ports, two USB 5 Gbps Type-A ports, and one USB 10 Gbps Type-C port for front-panel connectivity. Display output supports HDMI 2.1 and DisplayPort 1.4, both capable of 4K 60 Hz when an iGPU-equipped processor is installed. The power delivery section features a 6+1+1+1 digital phase VRM fed by an 8-pin CPU power connector, supported by MOSFET thermal pads rated at 7 W/mK and additional choke thermal pads. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD audio output. Debugging is simplified by four EZ Debug LEDs and an EZ Memory Detection LED. Three addressable ARGB V2 headers and one standard RGB header allow lighting synchronisation across compatible MSI peripherals via MSI Center. Verified Specifications: – Chipset: Intel H810 – Socket: LGA 1851 (Intel Core Ultra Series 2) – Form Factor: Micro-ATX, 220 mm x 243.84 mm – Memory: 2x DDR5 UDIMM, max 128 GB, DDR5-4800 JEDEC / up to DDR5-6400+ (OC), XMP 3.0, CUDIMM support – PCIe Slots: 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x1 (Chipset) – Storage: 1x M.2 PCIe 4.0 x4 (2242/2260/2280), 4x SATA 6 Gb/s – LAN: Realtek 8126 5 Gbps – Wireless: Wi-Fi 6E (2.4/5/6 GHz, 160 MHz, up to 2.4 Gbps), Bluetooth 5.3 – USB Rear: 1x USB 20 Gbps Type-C, 2x USB 5 Gbps Type-A, 2x USB 2.0 – Display: HDMI 2.1 (4K 60Hz), DisplayPort 1.4 (4K 60Hz) – Audio: Realtek ALC897, 7.1-channel HD – RGB: 3x ARGB V2, 1x RGB header
