MSI MAG B460M Mortar Wifi DDR4 Intel Motherboard
MPN MSI-MAG-B460M-MORTAR-WIFI · Brand MSI · mATX

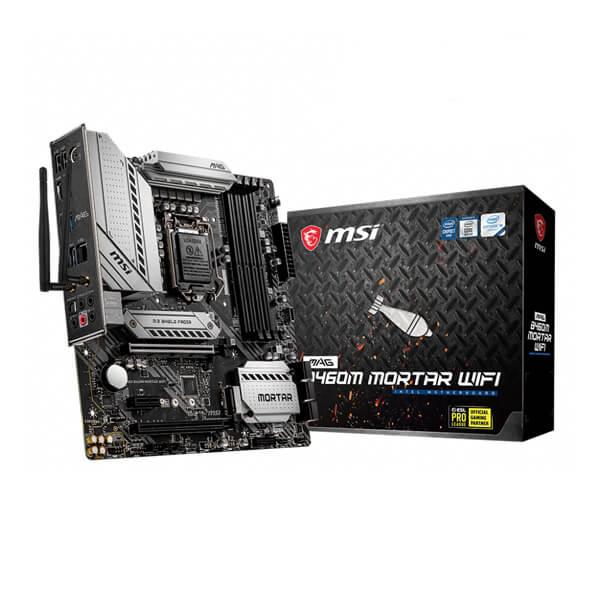

The MSI MAG B460M Mortar WiFi is a Micro-ATX LGA1200 motherboard featuring Intel Wi-Fi 6 (AX200), 2.5G LAN, dual M.2 slots, and a 12+1+1 power stage design for 10th Gen Intel Core processors
Inclusive of GST · GST invoice available
Overview
The MSI MAG B460M Mortar WiFi is a Micro-ATX motherboard built on the Intel B460 chipset, designed for 10th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1200 socket. Measuring 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm), its compact form factor suits a wide range of mid-tower and mini-tower builds. Power delivery is handled by a 12+1+1 Duet Rail Power System, supported by MSI's Core Boost and DDR4 Boost technologies. The extended PWM heatsink and M.2 Shield Frozr thermal solutions help maintain stable temperatures during sustained workloads. A 24-pin ATX main power connector and 8-pin ATX 12V power connector are provided board. Four DDR4 DIMM slots support up to 128 GB of memory in dual-channel configuration. Core i7 and i9 processors support DDR4-2933 (max), while Core i5 and below are limited to DDR4-2666 (max). XMP profiles are supported; only non-ECC, unbuffered modules are compatible. Storage is handled by six SATA 6Gb/s ports and two M.2 Key-M slots. M2_1 supports PCIe 3.0 x4 and SATA 6Gb/s in 2242/2260/2280 lengths, while M2_2 supports PCIe 3.0 x4 in the same lengths. Intel Optane Memory Ready and Intel Smart Response Technology are also supported. Networking is a standout feature: a Realtek RTL8125B 2.5G LAN controller delivers wired speeds up to 2.5 Gbps, while the pre-installed Intel AX200 module provides Wi-Fi 6 (802.11ax) on 2.4 GHz and 5 GHz bands with up to 2.4 Gbps throughput via 160 MHz channels, MU-MIMO Rx, and Bluetooth 5.1. Displays are supported via one HDMI port (up to 4096x2160 @ 30 Hz) and one DisplayPort (up to 4096x2304 @ 60 Hz) when using a processor with integrated graphics. Audio is managed by a Realtek ALC1200 codec delivering 7.1-channel HD audio with optical S/PDIF output. USB connectivity includes two USB 3.2 Gen 1 Type-C ports, five USB 3.2 Gen 1 Type-A ports, and six USB 2.0 ports across rear panel and internal headers. RGB headers include one 4-pin RGB connector and one 3-pin RAINBOW LED connector for lighting customisation. The board ships with a pre-installed I/O shield. BIOS is UEFI AMI with 128 Mb flash, ACPI 6.2, SMBIOS 3.2, and multi-language support. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) - Socket: LGA1200 | Chipset: Intel B460 - CPU Support: 10th Gen Intel Core / Pentium Gold / Celeron - Memory: 4x DDR4 DIMM, up to 128 GB, DDR4-2933 max (i7/i9), DDR4-2666 max (i5 and below), Dual-Channel, XMP - Storage: 6x SATA 6Gb/s, 2x M.2 (PCIe 3.0 x4); M2_1 also supports SATA - Expansion: 1x PCIe 3.0 x16 (CPU), 1x PCIe 3.0 x16 (PCH, x4 mode), 1x PCIe 3.0 x1 - LAN: Realtek RTL8125B 2.5G - Wi-Fi: Intel AX200 Wi-Fi 6 (802.11ax), up to 2.4 Gbps, 160 MHz - Bluetooth: 5.1 - Audio: Realtek ALC1200, 7.1-CH HD, S/PDIF optical out - USB (rear + internal): 2x USB 3.2 Gen 1 Type-C, 5x USB 3.2 Gen 1 Type-A, 6x USB 2.0 - Power Design: 12+1+1 Duet Rail - BIOS: UEFI AMI, 128 Mb flash - Warranty: 3 Years

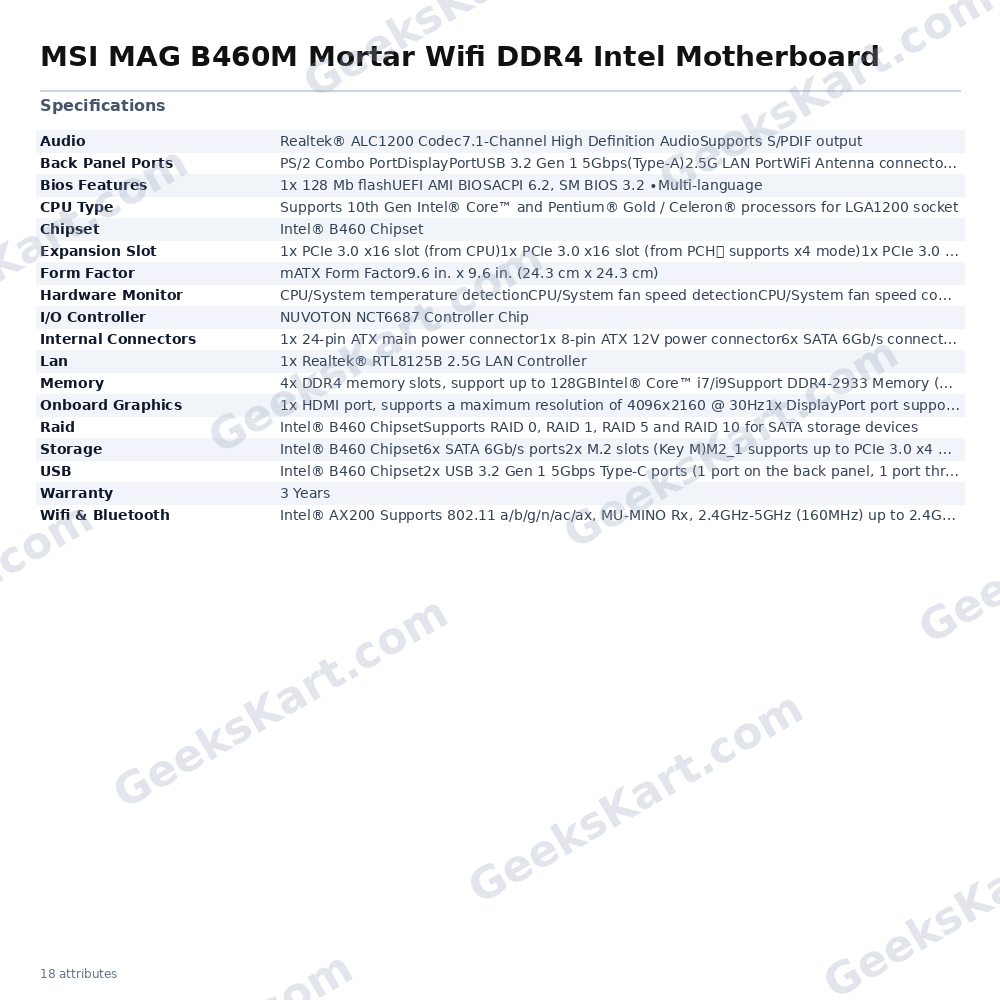

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B460 Chipset |
| CPU Type | Supports 10th Gen Intel® CoreTM and Pentium® Gold / Celeron® processors for LGA1200 socket |
| Lan | 1x Realtek® RTL8125B 2.5G LAN Controller |
| USB | Intel® B460 Chipset2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector)5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector)6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Raid | Intel® B460 ChipsetSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Memory | 4x DDR4 memory slots, support up to 128GBIntel® Core™ i7/i9Support DDR4-2933 Memory (Max.)Intel® Core™ i5 (Below)Supports DDR4-2666 Memory (Max.)Supports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® B460 Chipset6x SATA 6Gb/s ports2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devicesM2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devicesIntel® Optane™ Memory ReadySupports Intel® Smart Response Technology for Intel Core™ processors |
| Bios Features | 1x 128 Mb flashUEFI AMI BIOSACPI 6.2, SM BIOS 3.2 ∙Multi-language |
| Expansion Slot | 1x PCIe 3.0 x16 slot (from CPU)1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)1x PCIe 3.0 x1 slot (from PCH) |
| I/O Controller | NUVOTON NCT6687 Controller Chip |
| Back Panel Ports | PS/2 Combo PortDisplayPortUSB 3.2 Gen 1 5Gbps(Type-A)2.5G LAN PortWiFi Antenna connectorsHD Audio ConnectorsUSB 2.0 PortsHDMI PortUSB 3.2 Gen 1 5Gbps(Type-C)USB 3.2 Gen 1 5Gbps(Type-A)Optical S/PDIF OUT |
| Hardware Monitor | CPU/System temperature detectionCPU/System fan speed detectionCPU/System fan speed control |
| Onboard Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| Wifi & Bluetooth | Intel® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4GbpsWiFi 6 Pre-CertifiedSupports Bluetooth® 5.1 , FIPS, FISMAThe Wireless module is pre-install in the M2 (Key-E) slot |
| Internal Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector6x SATA 6Gb/s connectors1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)1x USB 3.2 Gen 1 5Gbps Type-C connector2x USB 2.0 connectors (support additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water pump connector2x 4-pin system fan connectors1x front panel audio connector2x system panel connectors1x TPM module connector1x Chassis Intrusion connector1x Clear CMOS jumper1x 4-pin RGB LED connector1x 3-pin RAINBOW LED connector1x TBT connector1x RTD3 connector |
