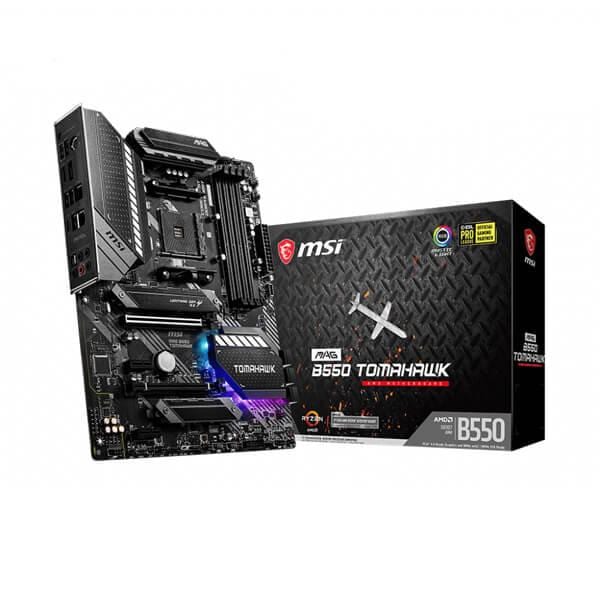

MSI MAG B550 Tomahawk AM4 DDR4 AMD Motherboard
MPN MSI-MAG-B550-TOMAHAWK-1 · Brand MSI
The MSI MAG B550 Tomahawk is an ATX motherboard for AMD AM4 Ryzen processors, offering PCIe 4.0, dual LAN (2.5G + 1G), 128 GB DDR4 support, and two M.2 slots with a Shield Frozr heatsink
Inclusive of GST · GST invoice available
Overview
The MSI MAG B550 Tomahawk is a full-size ATX motherboard built on the AMD B550 chipset and designed for the AM4 socket. It natively supports 3rd Gen AMD Ryzen processors and is forward-compatible with future AMD Ryzen AM4 processors through a BIOS update, giving builders room to upgrade without replacing the board. Memory flexibility is a key strength. Four DDR4 DIMM slots accommodate up to 128 GB of unbuffered memory, with JEDEC speeds from 1866 MHz up to 3200 MHz and A-XMP overclocked profiles reaching up to 4866 MHz in single-stick single-rank configurations. Dual-channel memory architecture is fully supported. For storage, the Tomahawk delivers two M.2 Key-M slots. The primary M.2 slot (M2_1) draws lanes directly from the AMD processor and supports PCIe 4.0/3.0 x4 as well as SATA 6Gb/s, accommodating 2242, 2260, 2280, and 22110 form factors. The secondary slot (M2_2) uses chipset lanes at PCIe 3.0 x4 and supports 2242, 2260, and 2280 drives. An M.2 Shield Frozr heatsink aids thermal management on the primary slot. Six SATA 6Gb/s ports round out storage connectivity, with RAID 0, 1, and 10 for SATA and RAID 0 and 1 for NVMe. Connectivity is handled by dual onboard LAN controllers: a Realtek RTL8125B for 2.5Gbps and a Realtek RTL8111H for 1Gbps. USB ports are plentiful, including two USB 3.2 Gen 2 (10Gbps) ports from the processor — one Type-A and one Type-C — alongside additional Gen 1 and USB 2.0 ports on the rear panel and internal headers. Audio is managed by a Realtek ALC1200 codec delivering 7.1-channel high-definition audio with optical S/PDIF output. RGB customization is handled through MSI Mystic Light, which controls up to 16.8 million colors across 29 effects, with two 4-pin RGB headers and two 3-pin RAINBOW LED headers for strip expansion. The board also features a Flash BIOS Button on the rear I/O panel and a pre-installed I/O shield for easier installation. Verified Specifications: - Socket: AM4 | Chipset: AMD B550 - Form Factor: ATX — 12 in. x 9.6 in. (30.5 cm x 24.4 cm) - Memory: 4x DDR4 slots, up to 128 GB; JEDEC up to 3200 MHz; A-XMP OC up to 4866 MHz - PCIe: 1x PCIe 4.0/3.0 x16; 1x PCIe 3.0 x16 (x4 speed); 2x PCIe 3.0 x1 - Storage: 2x M.2 (PCIe 4.0 x4 + PCIe 3.0 x4); 6x SATA 6Gb/s - LAN: Realtek RTL8125B 2.5Gbps + Realtek RTL8111H 1Gbps - USB: 2x USB 3.2 Gen 2 (Type-A + Type-C), 4x USB 3.2 Gen 1, 6x USB 2.0 - Audio: Realtek ALC1200, 7.1-CH HD Audio, S/PDIF optical out - Display out: 1x HDMI (4K@24Hz), 1x DisplayPort (4K@60Hz) - Fan headers: 1x CPU, 1x water-pump, 6x system - Multi-GPU: 2-Way AMD CrossFire - Warranty: 3 Years

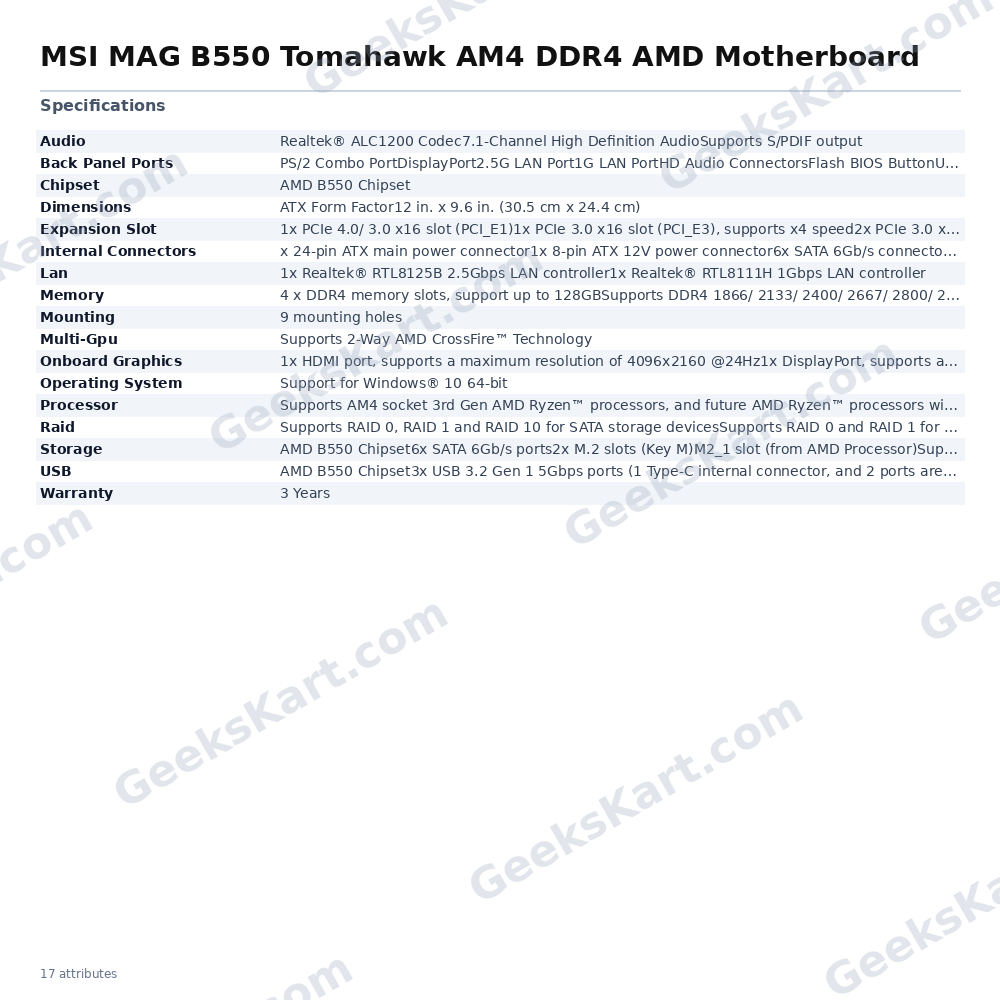

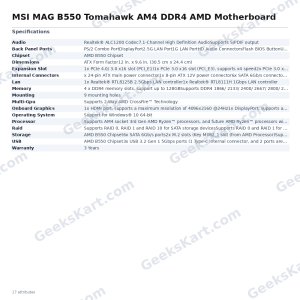

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD B550 Chipset |
| Lan | 1x Realtek® RTL8125B 2.5Gbps LAN controller1x Realtek® RTL8111H 1Gbps LAN controller |
| USB | AMD B550 Chipset3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Raid | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | Realtek® ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Memory | 4 x DDR4 memory slots, support up to 128GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866 MHz by A-XMP OC MODE1DPC 1R max speed 4866 MHZ1DPC 2R max speed 3866 MHZ2DPC 1R max speed 4000 MHZ2DPC 2R max speed 3600 MHZDual channel memory architectureSupports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode)Supports un-buffered memory |
| Storage | AMD B550 Chipset6x SATA 6Gb/s ports2x M.2 slots (Key M)M2_1 slot (from AMD Processor)Supports PCIe 4.0/ 3.0 x4Supports SATA 6Gb/sSupports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4Supports 2242/ 2260/ 2280 storage devices |
| Mounting | 9 mounting holes |
| Multi-Gpu | Supports 2-Way AMD CrossFire™ Technology |
| Processor | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |
| Dimensions | ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Expansion Slot | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed2x PCIe 3.0 x1 slots |
| Back Panel Ports | PS/2 Combo PortDisplayPort2.5G LAN Port1G LAN PortHD Audio ConnectorsFlash BIOS ButtonUSB 2.0 PortHDMI PortUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A Type-C)Optical S/PDIF OUT |
| Onboard Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz1x DisplayPort, supports a maximum resolution of 4096×2160 @60HzMaximum shared memory of 2048 MB |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | x 24-pin ATX main power connector1x 8-pin ATX 12V power connector6x SATA 6Gb/s connectors2x M.2 slots (M-Key)1x USB 3.2 Gen 1 5Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector6x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector2x 4-pin RGB LED connectors2x 3-pin RAINBOW LED connectors1x TPM module connector1x Clear CMOS jumper |
