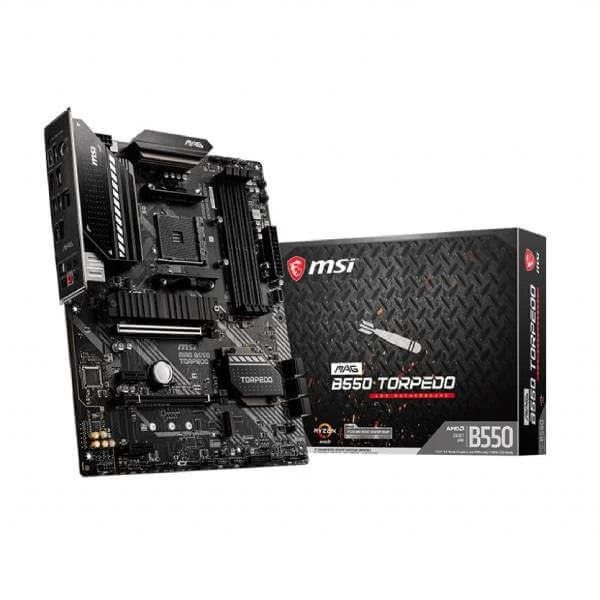

Feature of MSI MAG B550 Torpedo DDR4
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- Latest Network Solution: Onboard 2.5G LAN with LAN Manager deliver the best online experience without lag.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
ENHANCED THERMAL SOLUTION
Higher performance generates more heat. Thermal solution is very important to MSI MAG B550 Torpedo DDR4 chipset which featured latest Gen4 bandwidth. MSI motherboards featured extended heatsink, 7W/mK level thermal & choke pad, 2oz thickened copper and M.2 Shield Frozr to provide best performance for enthusiast gamers and prosumers.
CORE BOOST
MAG B550 TOMAHAWK has Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.
USB TYPE-C READY IN BOTH FRONT CASE PANEL & REAR IO
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.
MAXIMIUM DATA TRANSFER WITH 2.5G Plus Gibait LAN
MAG B550 TOMAHAWK does Features high-bandwidth and low-latency Ethernet networks for demanding creators and power users. Onboard 2.5Gbps plus Gigabit LAN connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
PRE-INSTALLED IO SHIELDING
Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation

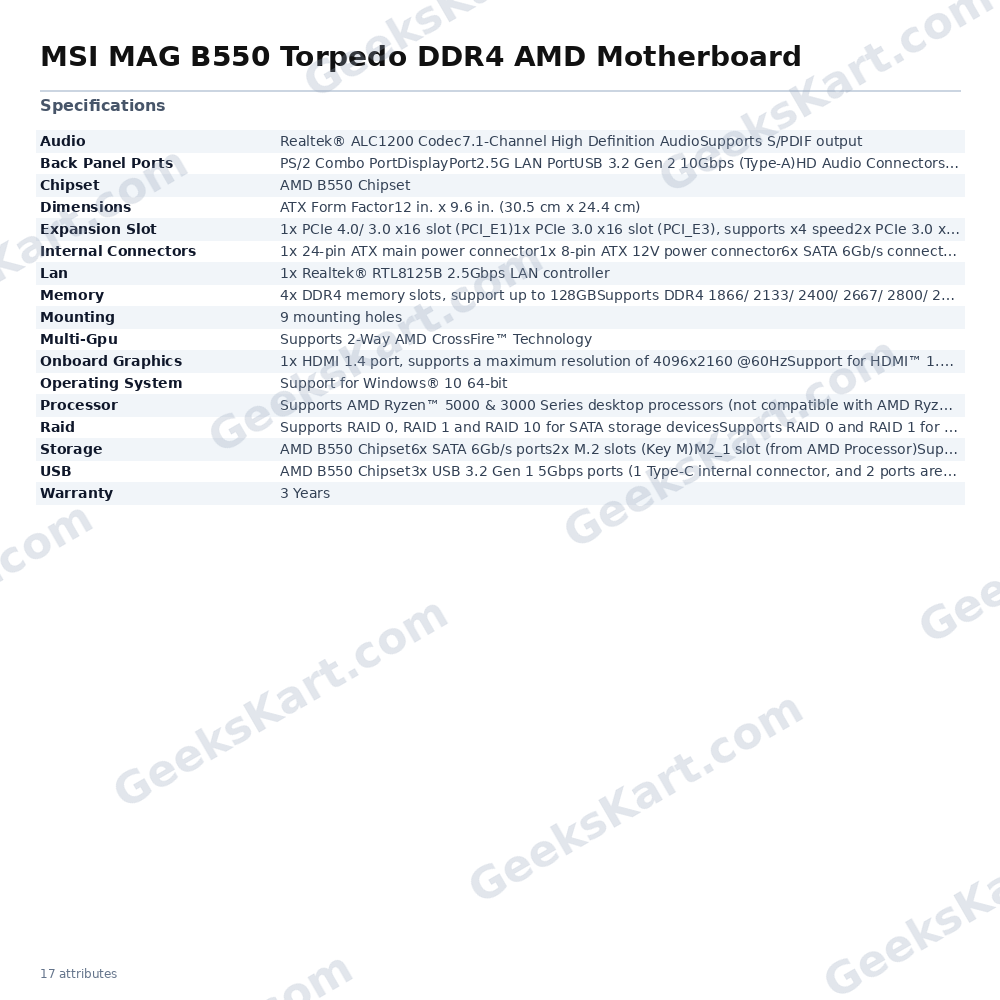

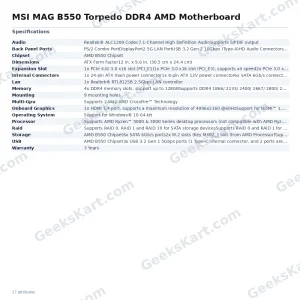

Specifications of MSI MAG B550 Torpedo DDR4
| Processor | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| CHIPSET | AMD B550 Chipset |
| MEMORY | 4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733/ 4800/ 4866+ MHz by A-XMP OC MODE 1DPC 1R max speed 4866 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| EXPANSION SLOT | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots PCIe specifications may vary depending on the CPU installed. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. Please refer to page 29 for details. |
| MULTI-GPU | Supports 2-Way AMD CrossFire™ Technology |
| ONBOARD GRAPHICS | 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @60Hz Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz Maximum shared memory of 16GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| STORAGE | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD Processor)Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset)Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices PCIe specifications may vary depending on the CPU installed. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| AUDIO | Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper |
| BACK PANEL PORTS | PS/2 Combo Port DisplayPort 2.5G LAN Port USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors Flash BIOS Button USB 2.0 Port HDMI Port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT |
| DIMENSIONS | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
