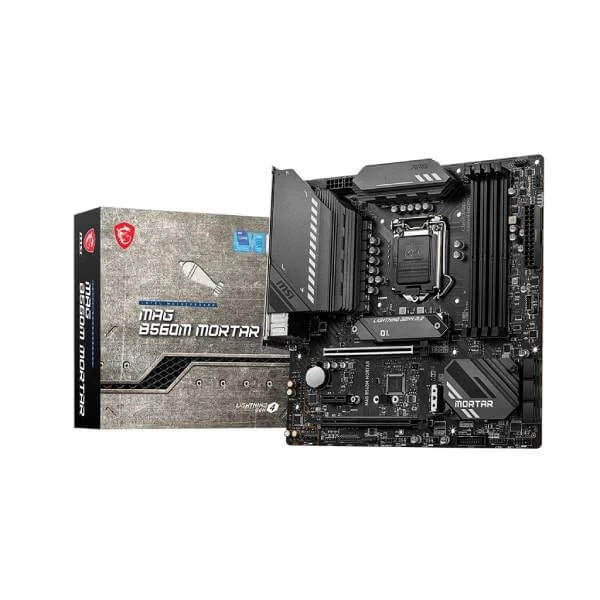

MSI MAG B560M Mortar DDR4 Intel Motherboard
MPN MSI-B560M-MORTAR · Brand MSI · mATX
The MSI MAG B560M Mortar DDR4 is a Micro-ATX motherboard for Intel LGA 1200 processors featuring PCIe Gen4 M.2, 2.5G LAN, USB 3.2 Gen2x2 at 20 Gbps, and support for up to 128 GB DDR4 across four DIMM slots
Inclusive of GST · GST invoice available
Overview
The MSI MAG B560M Mortar DDR4 is a Micro-ATX motherboard built on the Intel B560 chipset for the LGA 1200 socket, supporting 10th and 11th Generation Intel Core processors up to the i9, as well as Pentium Gold and Celeron variants. Its compact mATX form factor makes it an efficient choice for space-conscious builds without sacrificing connectivity or expandability. Memory flexibility is a standout attribute: the board accepts up to 128 GB of DDR4 RAM across four DIMM slots in dual-channel configuration, with support for JEDEC speeds up to 2933 MHz and overclocked profiles reaching up to 5066 MHz (OC). This breadth of memory support accommodates both everyday workloads and performance-tuned systems. Storage options are comprehensive. Two M.2 slots — with the primary slot running at PCIe Gen4 x4 — provide high-throughput pathways for NVMe SSDs, while six SATA III ports cater to additional drives. An M.2 Shield Frozr heatsink helps manage SSD temperatures under sustained workloads. Connectivity is equally thorough. A Realtek RTL8125B 2.5 Gbps LAN controller handles wired networking. USB connectivity includes a rear USB 3.2 Gen2x2 Type-C port at 20 Gbps, three rear USB 3.2 Gen1 Type-A ports, four rear USB 2.0 ports, a front-panel USB 3.2 Gen2 Type-C header, two front-panel USB 3.2 Gen1 Type-A headers, and four front-panel USB 2.0 headers. Display outputs on the rear I/O include one HDMI, one DisplayPort, and one VGA port, enabling integrated graphics use without a discrete card. Audio is handled by a Realtek ALC897 codec. Expansion slots include two PCIe x16 slots with Steel Armor reinforcement and one PCIe x1 slot; AMD CrossFire multi-GPU configurations are supported. The board ships with a 3-year manufacturer warranty. Key Verified Specifications: • Chipset: Intel B560 • Socket: LGA 1200 (10th/11th Gen Intel Core, Pentium Gold, Celeron) • Form Factor: Micro-ATX (mATX) • Memory: 4x DDR4 DIMM, dual-channel, max 128 GB, up to 5066 MHz (OC) • M.2 Slots: 2 (primary: PCIe Gen4 x4) • SATA III: 6 ports • LAN: 1x Realtek RTL8125B 2.5 Gbps • Rear USB: 1x USB 3.2 Gen2x2 Type-C (20 Gbps), 3x USB 3.2 Gen1 Type-A, 4x USB 2.0 • Front USB Headers: 1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen1 Type-A, 4x USB 2.0 • Display Outputs: 1x HDMI, 1x DisplayPort, 1x VGA • Audio: Realtek ALC897 codec • Expansion: 2x PCIe x16 (Steel Armor), 1x PCIe x1; AMD CrossFire supported • Warranty: 3 years

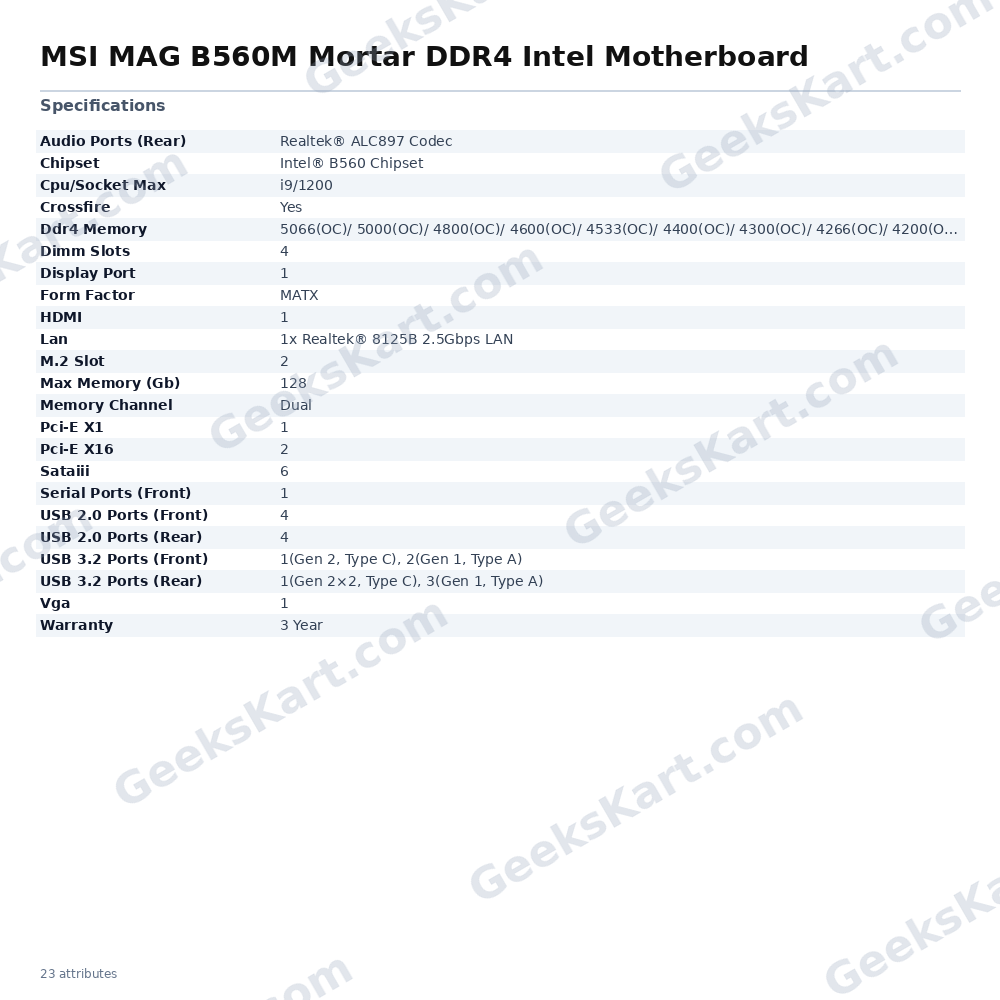

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B560 chipset |
| Lan | 1x Realtek® 8125B 2.5Gbps LAN |
| Vga | 1 |
| HDMI | 1 |
| Sataiii | 6 |
| M.2 Slot | 2 |
| Pci-E X1 | 1 |
| Crossfire | Yes |
| Pci-E X16 | 2 |
| Dimm Slots | 4 |
| Ddr4 Memory | 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Display Port | 1 |
| Cpu/Socket Max | i9/1200 |
| Memory Channel | Dual |
| Max Memory (Gb) | 128 |
| Audio Ports (Rear) | Realtek® ALC897 Codec |
| Serial Ports (Front) | 1 |
| USB 2.0 Ports (Rear) | 4 |
| USB 3.2 Ports (Rear) | 1(Gen 2×2, Type C), 3(Gen 1, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 3.2 Ports (Front) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
