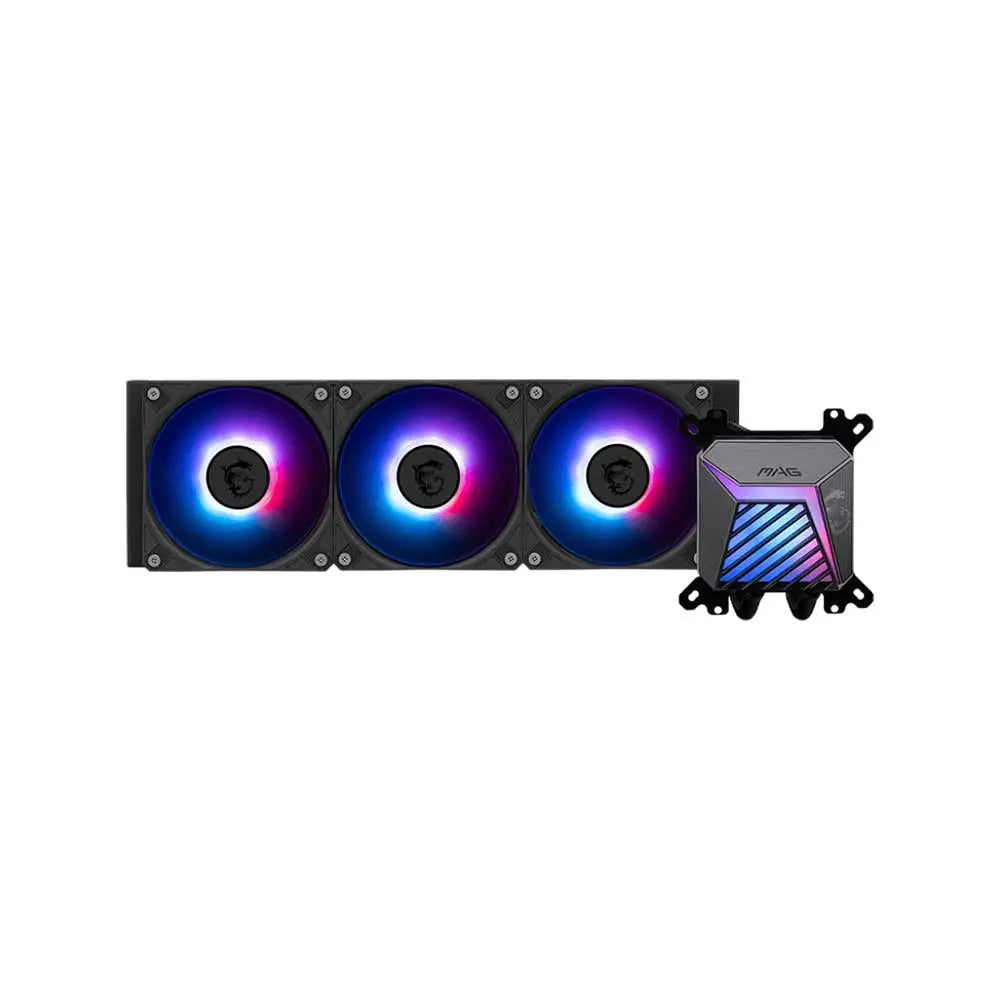

MSI MAG CoreLiquid A15 ARGB 360mm CPU Liquid Cooler (Black)
MPN MSI-MAG-CORELIQUID-A15-ARGB-360MM-BLACK · Brand MSI
The MSI MAG CoreLiquid A15 ARGB 360mm AIO liquid cooler features a 3400 RPM pump, three CycloBlade PWM fans with ARGB GEN2 lighting, and a pre-installed UNI Bracket supporting Intel LGA 1700/1851 and AMD AM4/AM5 sockets
Inclusive of GST · GST invoice available
Overview
The MSI MAG CoreLiquid A15 ARGB 360mm CPU Liquid Cooler in Black is a 360mm all-in-one liquid cooling solution engineered for enthusiast desktop builds. At its core is a high-performance pump running at up to 3400 RPM (±10%), paired with a copper cold plate that draws heat away from the CPU efficiently. The aluminum radiator measures 394 x 119.6 x 27.2 mm, providing ample surface area for heat dissipation across three pre-installed 120mm fans. The three CycloBlade fans are designed to focus airflow and reduce turbulence noise. They operate across a speed range of 500 to 2050 RPM (±150 RPM) and each deliver up to 62.89 CFM of airflow. With a rifle bearing design and a rated life expectancy of 40,000 hours at 40°C, the fans are built for long-term reliability. Fan power consumption is 1.68W (±0.336W) per fan and they connect via a 5V ARGB 3-PIN header with a 600mm PWM cable, supporting PWM speed control. Both the pump head block and fans feature ARGB GEN2 illumination, customisable through MSI Center software. The pump block dimensions are 71.23 x 69.47 x 75.05 mm, and the pump head connects via a 4-PIN header and a 5V ARGB 3-PIN (female) header. Coolant tubing is constructed from EPDM and IIR materials, selected for durability and resistance to coolant evaporation. Installation is simplified by the pre-installed UNI Bracket, which supports Intel LGA 1700 and LGA 1851 sockets as well as AMD AM4 and AM5 platforms — covering a broad range of current-generation CPUs. The package includes thermal paste and 12 mounting screws. Pump life expectancy is rated at 50,000 hours in typical use, and the average pump noise level is 20 dBA. Verified Specifications: — Radiator size: 360mm | Dimensions: 394 x 119.6 x 27.2 mm | Material: Aluminum — Fan count: 3 × 120 x 120 x 25 mm | Speed: 500–2050 ±150 RPM | Airflow: 62.89 CFM | Bearing: Rifle — Fan life: 40,000 hrs @ 40°C | Power: 1.68W ±0.336W per fan — Pump speed: 3400 RPM ±10% | Noise: 20 dBA avg. | Life: 50,000 hours — Pump power: 2.52W ±0.504W | Cold plate: Copper | Tubing: EPDM + IIR — Lighting: ARGB GEN2 (block + fans) | Connector: 5V ARGB 3-PIN — Socket support: Intel LGA 1700 / 1851; AMD AM4 / AM5 — Warranty: 1 Year

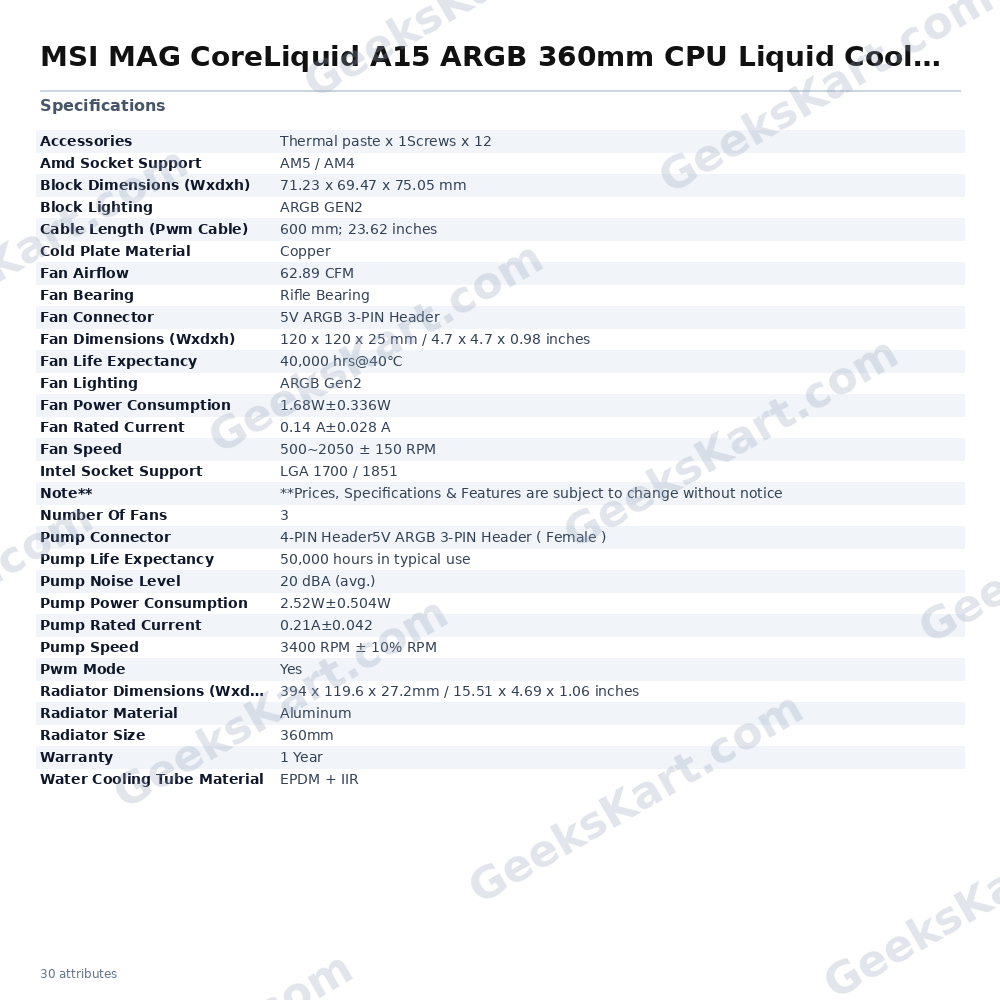

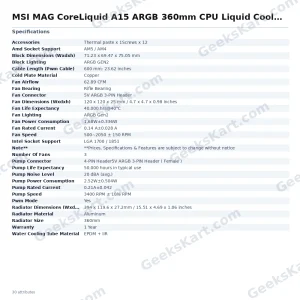

Datasheet
| Warranty | 1 Year |
|---|---|
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Pwm Mode | Yes |
| Fan Speed | 500~2050 ± 150 RPM |
| Pump Speed | 3400 RPM ± 10% RPM |
| Accessories | Thermal paste x 1Screws x 12 |
| Fan Airflow | 62.89 CFM |
| Fan Bearing | Rifle Bearing |
| Fan Lighting | ARGB Gen2 |
| Fan Connector | 5V ARGB 3-PIN Header |
| Radiator Size | 360mm |
| Block Lighting | ARGB GEN2 |
| Number Of Fans | 3 |
| Pump Connector | 4-PIN Header5V ARGB 3-PIN Header ( Female ) |
| Pump Noise Level | 20 dBA (avg.) |
| Fan Rated Current | 0.14 A±0.028 A |
| Radiator Material | Aluminum |
| Amd Socket Support | AM5 / AM4 |
| Pump Rated Current | 0.21A±0.042 |
| Cold Plate Material | Copper |
| Fan Life Expectancy | 40,000 hrs@40℃ |
| Intel Socket Support | LGA 1700 / 1851 |
| Pump Life Expectancy | 50,000 hours in typical use |
| Fan Power Consumption | 1.68W±0.336W |
| Fan Dimensions (Wxdxh) | 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches |
| Pump Power Consumption | 2.52W±0.504W |
| Block Dimensions (Wxdxh) | 71.23 x 69.47 x 75.05 mm |
| Cable Length (Pwm Cable) | 600 mm; 23.62 inches |
| Radiator Dimensions (Wxdxh) | 394 x 119.6 x 27.2mm / 15.51 x 4.69 x 1.06 inches |
| Water Cooling Tube Material | EPDM + IIR |
