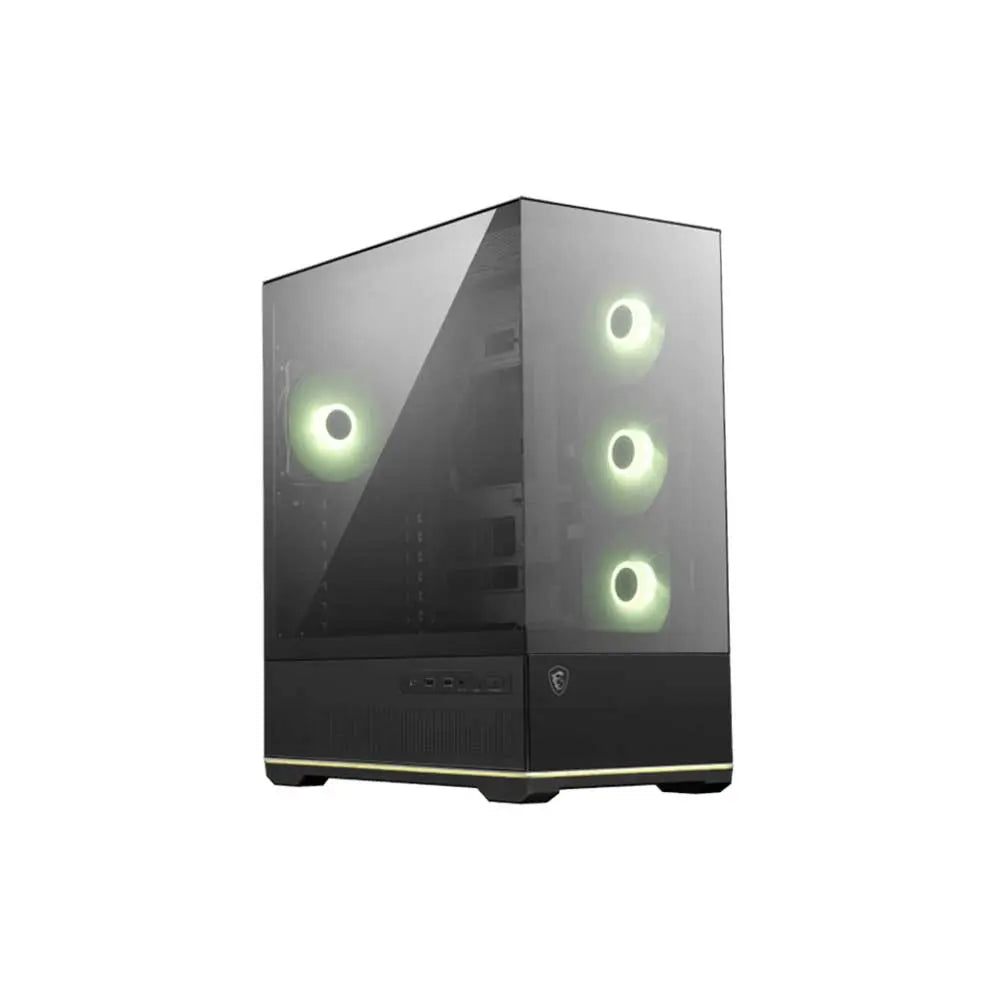

MSI MAG Pano 110R PZ ARGB ATX Mid Tower Cabinet ( Black )

The MSI MAG Pano 110R PZ is an ATX mid-tower PC cabinet designed around a 270-degree panoramic tempered glass enclosure that exposes three sides of your build for an unobstructed view of internal components. The chassis accommodates standard ATX, Micro-ATX, and Mini-ITX motherboards, as well as back-connect ATX and Micro-ATX form factors, giving builders broad compatibility across modern platforms. Four ARGB fans come pre-installed out of the box — three 120 mm reverse-blade fans on the side panel and one 120 mm ARGB fan at the rear. The reverse-blade design on the side fans eliminates frame obstruction so the lighting effects remain fully visible through the panoramic glass. An included 1-to-5 ARGB fan control board supports up to five ARGB fans simultaneously and lets you cycle through 18 lighting effects with a single dedicated LED button on the front I/O panel. Airflow headroom is generous. The case supports up to ten fans in total: three 120 mm or two 140 mm units on top, three 120 mm or two 140 mm on the side, one 120 mm at the rear, and three 120 mm above the power shroud at the bottom. A 360 mm radiator can be mounted on top, with a 120 mm radiator position available at the rear, catering to both air-cooled and liquid-cooled setups. The lower chamber is surrounded by ventilation cut-outs to assist heat dissipation away from the power supply area. GPUs up to 400 mm in length fit without issue, and CPU coolers up to 160 mm tall are supported. An ATX power supply of up to 200 mm can be installed. Storage options include two 2.5-inch bays, two 3.5-inch bays, and two combo 2.5/3.5-inch bays. Seven expansion slots are available for multi-card or high-profile GPU configurations. The front I/O panel provides one USB 3.2 Gen 2 Type-C port (20 Gbps), two USB 3.2 Gen 1 Type-A ports (5 Gbps each), and a combined audio-out/mic-in jack, alongside the power and LED buttons. Verified Specifications: - Form Factor: Mid-Tower - Motherboard Support: ATX / Micro-ATX / Mini-ITX (regular); ATX / Micro-ATX (back-connect) - Dimensions (D×W×H): 420 × 225 × 485 mm - Max GPU Length: 400 mm - Max CPU Cooler Height: 160 mm - Max PSU Length: 200 mm - Expansion Slots: 7 - Pre-Installed Fans: 3 × 120 mm ARGB reverse-blade (side) + 1 × 120 mm ARGB (rear) - Top Radiator Support: Up to 360 mm - Rear Radiator Support: 120 mm - Drive Bays: 2 × 2.5″, 2 × 3.5″, 2 × 2.5″/3.5″ combo - I/O: 1 × USB-C 20 Gbps, 2 × USB-A 5 Gbps, audio combo jack - Warranty: 2 Years
