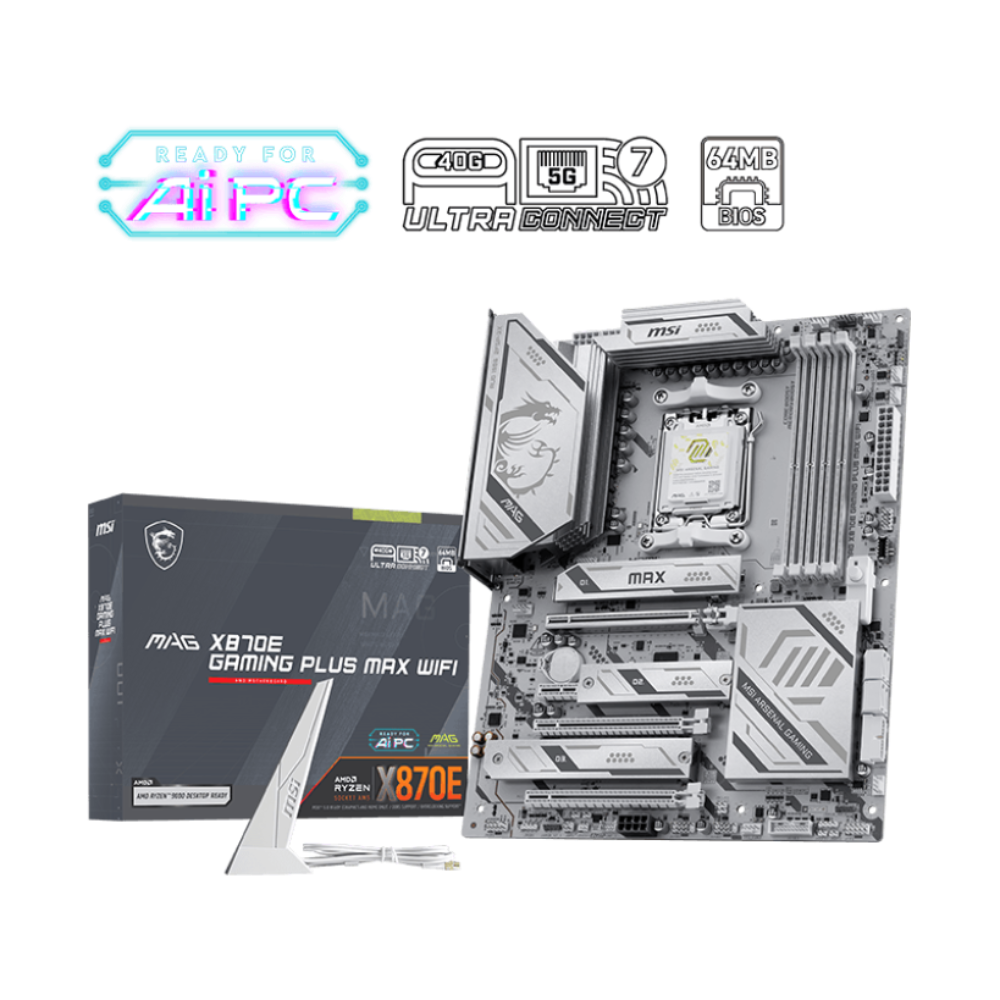

MSI MAG X870E Gaming Plus Max WIfi7 DDR5 AMD Motherboard

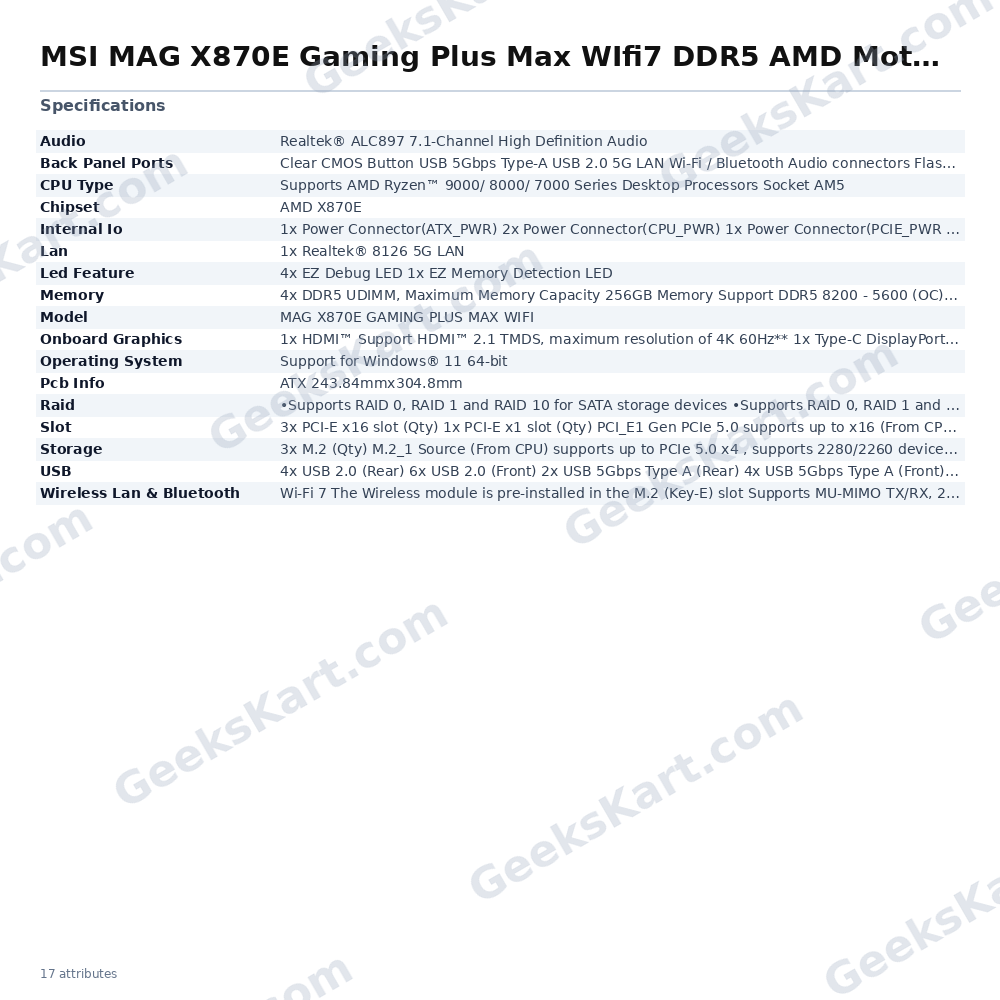

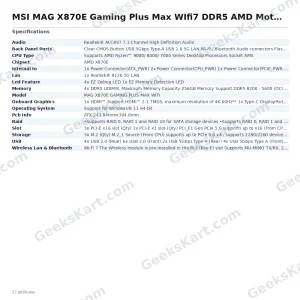

The MSI MAG X870E Gaming Plus Max WiFi 7 is an ATX-form-factor motherboard built on AMD’s X870E chipset, designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors via the Socket AM5 platform. It pairs a robust power delivery architecture — a 14+2+1 Duet Rail Power System using 60A SPS MOSFETs and dual 8-pin CPU power connectors — with an 8-layer PCB constructed from 2 oz thickened copper and server-grade materials, providing headroom for demanding Ryzen 9000 workloads and overclocking sessions. Memory support spans four DDR5 UDIMM slots with a maximum capacity of 256 GB. With Ryzen 9000 series processors, single-rank, single-DIMM-per-channel configurations can reach DDR5 8200+ MT/s (OC), while dual-rank, dual-DIMM-per-channel configurations are rated at up to DDR5 6000+ MT/s. The board supports AMD EXPO profiles as well as standard JEDEC speeds down to 4800 MT/s. Storage connectivity includes one M.2 slot (M.2_1) fed directly from the CPU at up to PCIe 5.0 x4 bandwidth, alongside two additional chipset-connected M.2 slots running at up to PCIe 4.0 x4, plus four SATA 6 Gbps ports. Expansion slots consist of a primary PCIe 5.0 x16 slot (CPU), a PCIe 4.0 x4 slot, and two PCIe 3.0 x1 slots from the chipset. Networking is handled by a Realtek 8126 5G LAN controller and an integrated Wi-Fi 7 module (802.11be) pre-installed in the M.2 Key-E slot, supporting the 2.4 GHz, 5 GHz, and 6 GHz bands at up to 5.8 Gbps with MU-MIMO, MLO, and 4KQAM. Bluetooth 5.4 is also included. The rear I/O panel provides a USB 40Gbps Type-C port, a USB 20Gbps Type-C port, two USB 10Gbps Type-A ports, two USB 5Gbps Type-A ports, four USB 2.0 ports, HDMI 2.1 (up to 4K 60 Hz for CPUs with integrated graphics), a USB4 Type-C port supporting DisplayPort 1.4 at up to 4K 120 Hz, a Flash BIOS button, and a Clear CMOS button. Internal front-panel USB includes one USB 10Gbps Type-C, four USB 5Gbps Type-A, and six USB 2.0 headers. Audio is managed by a Realtek ALC897 codec delivering 7.1-channel high-definition output. Thermal management features the extended Frozr Guard heatsink system with MOSFET thermal pads rated at 7 W/mK, additional choke thermal pads, and EZ M.2 Shield Frozr II covers on M.2 slots. RGB support includes three ARGB V2 headers, one RGB header, and one combined ARGB+FAN header. Verified Specifications: – Chipset: AMD X870E – Socket: AM5 – Form Factor: ATX (243.84 mm x 304.8 mm) – Memory: 4x DDR5 UDIMM, max 256 GB; up to DDR5 8200+ MT/s (OC, 1DPC 1R) – Primary M.2: PCIe 5.0 x4 (CPU); Secondary M.2 slots: PCIe 4.0 x4 (Chipset) x2 – SATA: 4x SATA 6 Gbps – Primary PCIe Slot: PCIe 5.0 x16 (CPU, Ryzen 9000/7000) – LAN: Realtek 8126 5G – Wireless: Wi-Fi 7 (802.11be), up to 5.8 Gbps, Bluetooth 5.4 – USB rear: 1x USB 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 – Audio: Realtek ALC897, 7.1-channel HD – OS Support: Windows 11 64-bit
