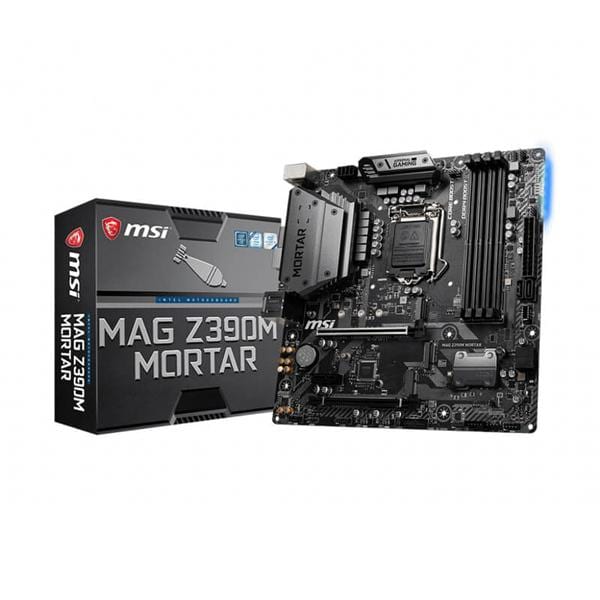

Feature of MSI MAG Z390M Mortar DDR4
Military-style with Extended heatsink design for better thermal solution, Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Intel CNVi Ready: Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection
- Lightning Fast Game experience: 2x Turbo M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 GEN2
- Set Core Power Free: Extended Heatsink Design, Core Boost, Game Boost, DDR4 Boost
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Cooling
MSI MAG Z390M Mortar has one water pump connector and three fan headers with DC and PWM control, which enable you to adjust your fans’ speeds as needed within BIOS or a third-party software.
User Friendly
- XL Clip – Enlarged PCIe clips make it easier for users to swap out PCIe hardware
- EZ Debug LED – Onboard LEDs for key components indicate the source of a problem
CPU
For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.
DDR4
The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.
Storage
Install PCIe Gen 3 x4 SSDs or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you’ll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI’s optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.
Internet Connectivity
Intel I219-V provides you with fast, optimized gaming-quality Gigabit LAN connectivity. Moreover, this motherboard has an E-key M.2 slot for an optional Intel CNVi Wi-Fi and Bluetooth module.
Audio
The MAG Z390 is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
- Dedicated, EMI-shielded Hi-Fi audio processor
- Isolated audio design with LED border ensures a better audio signal
- Separated audio layers for clean left and right channels
- De-pop protection prevents loud popping sounds when you plug or unplug or devices
- Nahimic 3 surround sound for immersion
- High-quality audio capacitors for a warmer sound
- Connectors for 7.1-channel surround sound

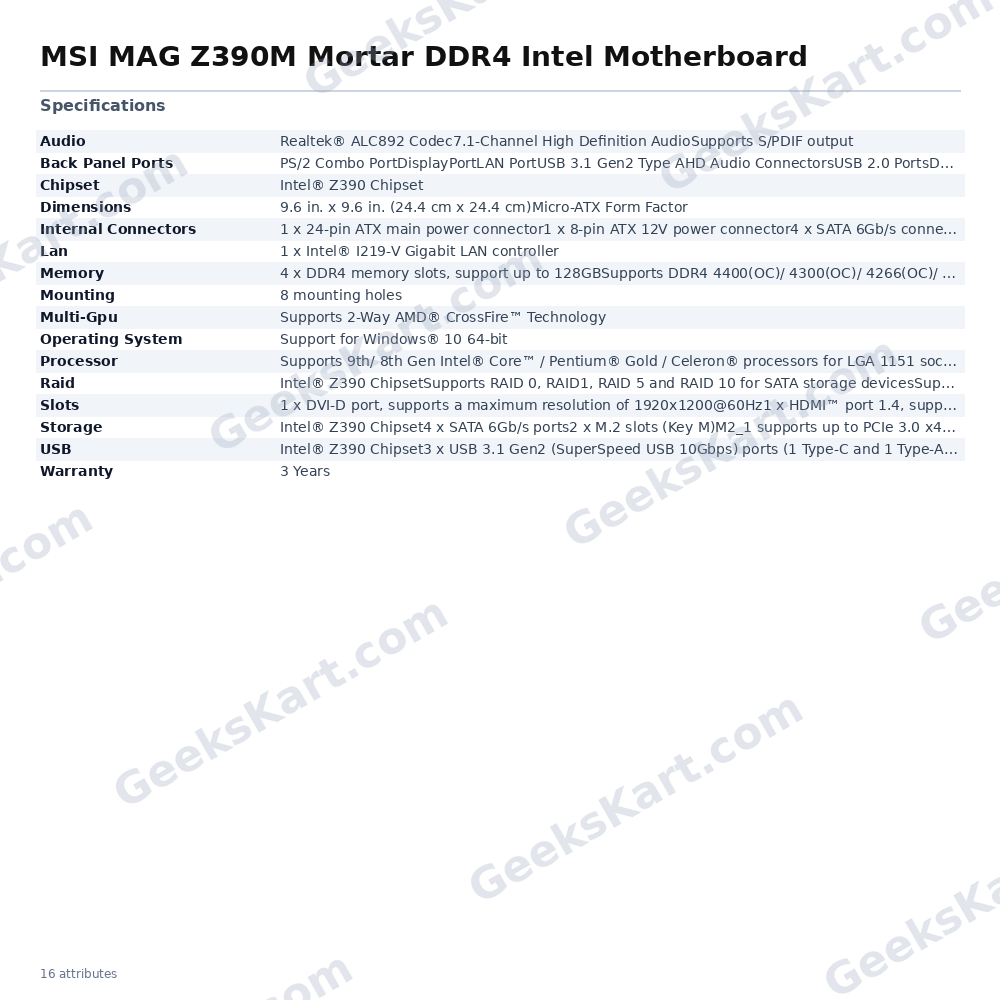

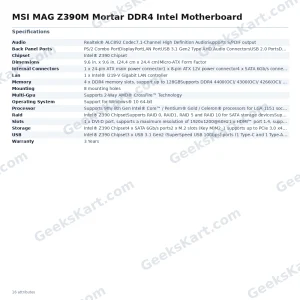

Specifications of MSI MAG Z390M Mortar DDR4
| PROCESSOR | Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY | 4 x DDR4 memory slots, support up to 128GB Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| SLOTS | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE | Intel® Z390 Chipset 4 x SATA 6Gb/s ports 2 x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices Intel® Optane™ Memory ReadySATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID | Intel® Z390 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
| USB | Intel® Z390 Chipset 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector) 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector) |
| AUDIO | Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| INTERNAL CONNECTORS | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen2 Type-C port 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 2 x 4-pin RGB LED connectors 1 x Thunderbolt add-on card connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| BACK PANEL PORTS | PS/2 Combo Port DisplayPort LAN Port USB 3.1 Gen2 Type A HD Audio Connectors USB 2.0 Ports DVI-D Port HDMI Port USB 2.0 Ports USB 3.1 Gen2 Type C Optical S/PDIF OUT |
| DIMENSIONS | 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Micro-ATX Form Factor |
| MOUNTING | 8 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
