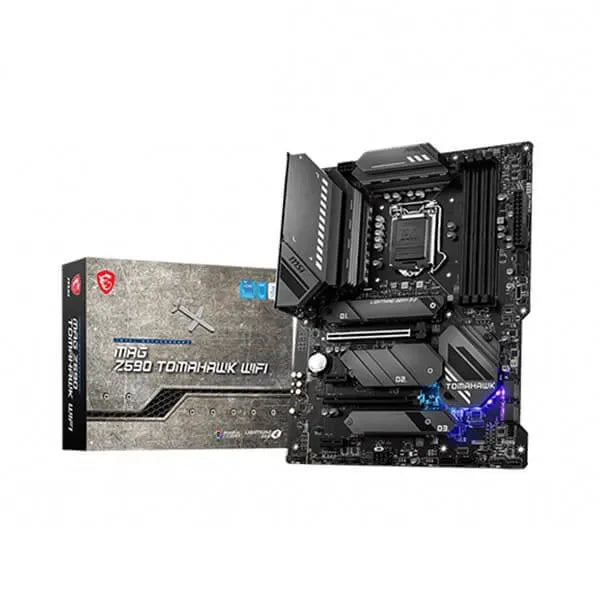

Feature of MSI MAG Z590 Tomahawk WiFi DDR4
MSI MAG Z590 TOMAHAWK WIFI gives the most immersive audio experience as it comes with studio sound quality. MSI MAG Z590 TOMAHAWK WIFI supports two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build.
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
FAST AND FUTURE-READY STORAGE
MSI MAG Z590 Tomahawk Wifi DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD
PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

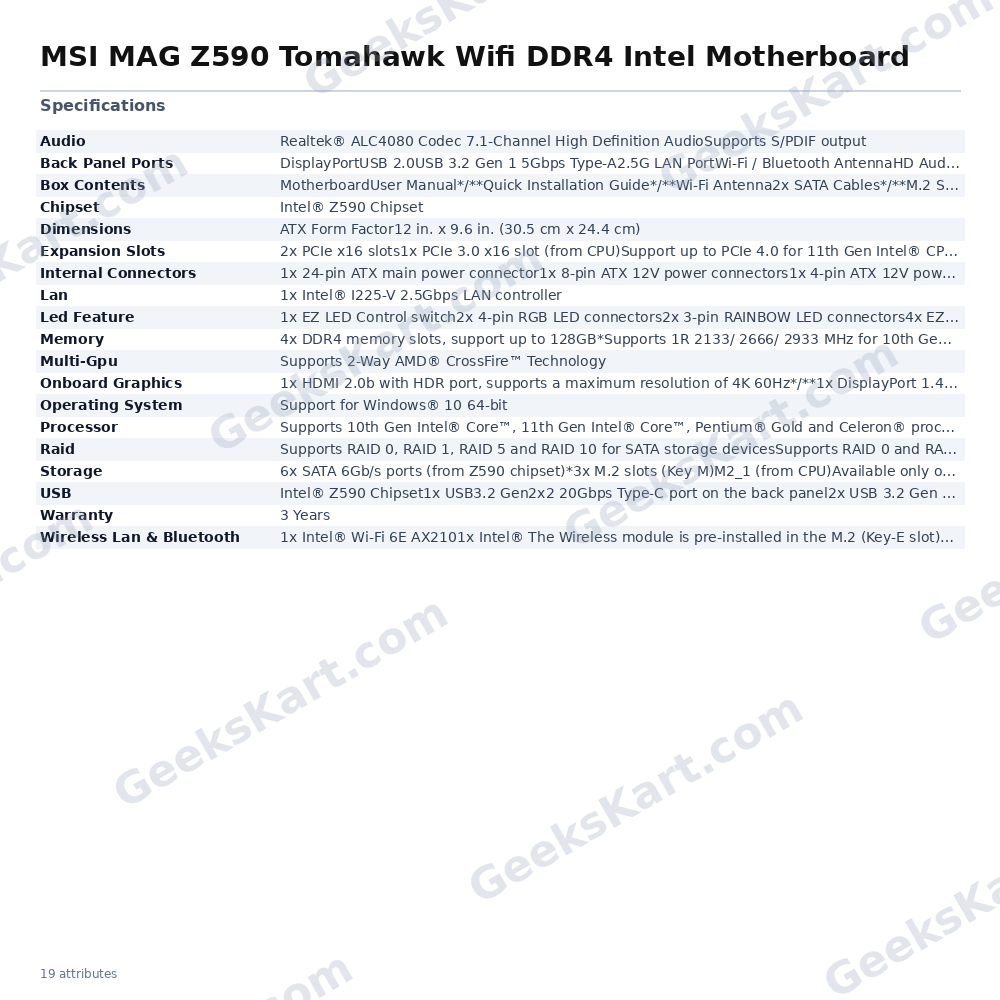

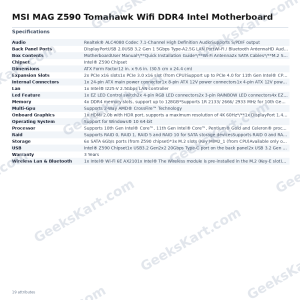

Specifications of MSI MAG Z590 Tomahawk WiFi DDR4
| PROCESSOR | Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors* Processor socket LGA1200 *Please go to intel.com for compatibility information. |
| CHIPSET | Intel® Z590 Chipset |
| MEMORY | 4x DDR4 memory slots, support up to 128GB* Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max. overclocking frequency:1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) *Please refer to www.msi.com for more information on compatible memory. |
| EXPANSION SLOTS | 2x PCIe x16 slots1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPUPCI_E3 slot (From Z590 chipset)Supports up to PCIe 3.0 x42x PCIe 3.0 x1 slots (From Z590 chipset) |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| ONBOARD GRAPHICS | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz*/** 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz*/** *Available only on processors featuring integrated graphics. **Graphics specifications may vary depending on the CPU installed.) |
| STORAGE | 6x SATA 6Gb/s ports (from Z590 chipset)* 3x M.2 slots (Key M)M2_1 (from CPU)Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2* & M2_3** slot (from Z590 chipset)Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready***Supports Intel® Smart Response Technology for Intel Core™ processors*SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. **SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. ***Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | Intel® Z590 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) |
| AUDIO | Realtek® ALC4080 Codec
7.1-Channel High Definition Audio |
| LAN | 1x Intel® I225-V 2.5Gbps LAN controller |
| WIRELESS LAN & BLUETOOTH | 1x Intel® Wi-Fi 6E AX210 1x Intel® The Wireless module is pre-installed in the M.2 (Key-E slot) Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2**, FIPS, FISMA*Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1. **Bluetooth 5.2 will be ready in WIN10 21H1. |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connectors 1x 4-pin ATX 12V power connector 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning controller connector |
| LED FEATURE | 1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| BACK PANEL PORTS | DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI Flash BIOS Button USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT |
| DIMENSIONS | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| BOX CONTENTS | Motherboard User Manual*/** Quick Installation Guide*/** Wi-Fi Antenna 2x SATA Cables*/** M.2 Screw/Standoff Sets*/** USB Drive*/** MSI Case Badge*/** MAG Stickers*/** Reward Program/Shoutout Flyer*/** MSI Product Catalog*/** Product Registration Card*/** *MSI® does not guarantee the risks or damages caused by changing the cover. **These contents are for reference only and may vary without notice. |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
