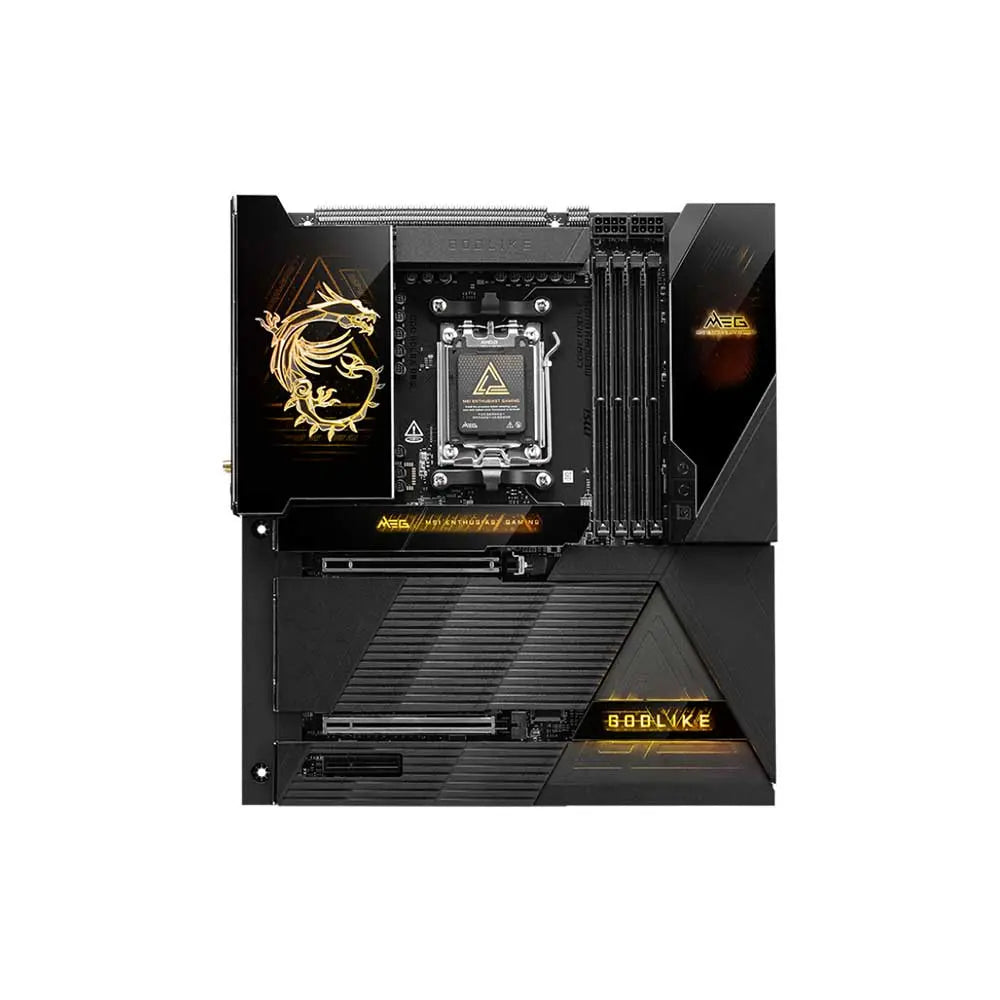

MSI MEG X870E Godlike WiFi7 DDR5 AMD Motherboard

The MSI MEG X870E Godlike is a flagship E-ATX motherboard built on the AMD X870E chipset, designed for AMD Ryzen 9000, 8000, and 7000 Series desktop processors via the AM5 socket. At 304.8 mm × 277 mm, it fits full-size E-ATX enclosures and is engineered to meet the demands of enthusiast builders, content creators, and serious overclockers. Memory support spans four DDR5 UDIMM slots with a maximum capacity of 256 GB. On Ryzen 9000 processors with a single DIMM per channel, speeds reach up to DDR5 8400+ MT/s (OC), while dual-channel configurations are also supported through AMD EXPO and standard JEDEC profiles down to DDR5 4800 MT/s. Connectivity is a clear strength. The board carries a Marvell AQC113CS 10 Gbps LAN controller alongside a Realtek 8126 5 Gbps LAN controller, giving wired users dedicated high-bandwidth paths. Wireless is handled by a pre-installed Wi-Fi 7 module (802.11be) in the M.2 Key-E slot, supporting MU-MIMO TX/RX across 2.4 GHz, 5 GHz, and 6 GHz bands — with 320 MHz channel width delivering up to 5.8 Gbps — and Bluetooth 5.4 with MLO and 4K-QAM. Expansion slots include two PCIe x16 slots (PCIe 5.0 x16 and PCIe 5.0 x8 from CPU) plus one PCIe 4.0 x4 slot from the chipset. Storage options reach five M.2 slots — two from the CPU at PCIe 5.0 x4, three from the chipset at PCIe 4.0 — complemented by four SATA 6 Gb/s ports. RAID 0, 1, and 10 are supported for both SATA and NVMe arrays. USB provisioning is extensive: the rear panel includes eight USB 10 Gbps Type-A ports, five USB 10 Gbps Type-C ports, and two USB 40 Gbps Type-C ports. The front panel headers add USB 20 Gbps Type-C, USB 10 Gbps Type-C, four USB 5 Gbps Type-A, and four USB 2.0 ports. Audio is handled by a Realtek ALC4082 codec paired with an ESS9219Q combo DAC/headphone amplifier, delivering 7.1-channel USB audio with S/PDIF output and up to 32-bit/384 kHz front-panel playback. The board also features a 3.99-inch Dynamic Dashboard III LCD for real-time hardware monitoring and BIOS updates, a 24+2+1 Duet Rail Power System with dual 8-pin CPU connectors and 110 A SPS stages, and a 10-layer PCB with 2 oz copper for thermal resilience. Cooling is managed through the Frozr Guard heatsink system, which includes Direct Touch Cross Heat-pipe, MOSFET baseplate, and Double-Sided M.2 Shield Frozr. The board carries a 3-year warranty and supports Windows 11 64-bit. Verified Specifications: – Chipset: AMD X870E – Socket: AM5 – CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series – Memory: 4× DDR5 UDIMM, max 256 GB, up to DDR5 8400+ MT/s (OC) – Form Factor: E-ATX, 304.8 mm × 277 mm – PCIe Slots: 2× x16 (PCIe 5.0), 1× x4 (PCIe 4.0) – M.2 Slots: 5 total (2× PCIe 5.0 x4, 3× PCIe 4.0) – SATA Ports: 4× SATA 6 Gb/s – LAN: 10 Gbps (Marvell AQC113CS) + 5 Gbps (Realtek 8126) – Wireless: Wi-Fi 7 (802.11be), up to 5.8 Gbps, Bluetooth 5.4 – Audio: Realtek ALC4082 + ESS9219Q DAC/HPA, 7.1-channel, 32-bit/384 kHz – Rear USB: 8× USB 10G Type-A, 5× USB 10G Type-C, 2× USB 40G Type-C – Warranty: 3 years
