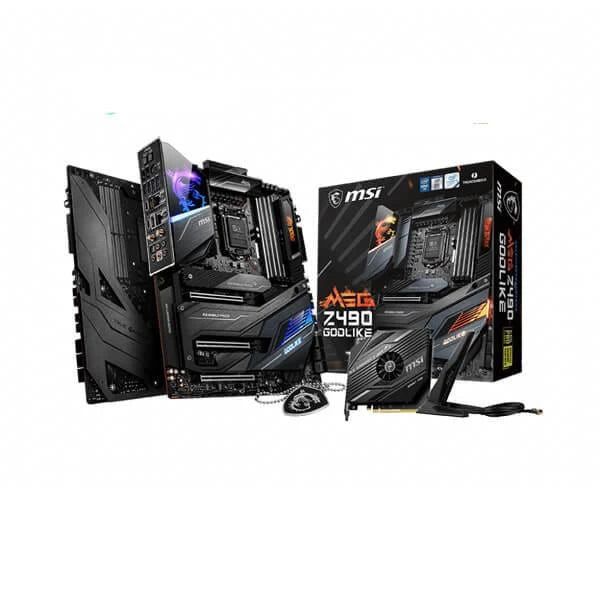

MSI MEG Z490 Godlike DDR4 Intel Motherboard

The MSI MEG Z490 Godlike is MSI's flagship E-ATX motherboard built on the Intel Z490 chipset, designed for 10th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA 1200 socket. It targets PC enthusiasts and power users who demand maximum performance, connectivity, and customisation without compromise. At the core of the power delivery system sits a 16+1+1 phase design driven by an INTERSIL digital PWM controller, paired with 90A Smart Power Stage components and dual 8-pin ATX 12V connectors. This arrangement is intended to deliver stable, clean power to the CPU even under sustained high-load conditions. Cooling is addressed through a stacked fin array, VRM heat-pipe routing, Frozr heatsink design, MOSFET baseplate contact, and individual M.2 Shield Frozr covers for each of the three onboard M.2 slots. Memory support extends across four DDR4 slots with a maximum capacity of 128 GB. Base JEDEC speeds include 2133, 2666, and 2933 MHz, while Intel XMP profiles push a single dual-rank DIMM (1DPC 1R) up to 5000+ MHz under overclocking. Dual-channel operation is supported throughout; ECC and registered memory are not supported. Storage options are generous: six SATA 6 Gb/s ports and three M.2 Key-M slots, all capable of PCIe 3.0 x4 — with M2_1 and M2_2 additionally supporting SATA 6 Gb/s drives. The board also includes Intel Optane Memory Ready support and the bundled M.2 XPANDER-Z GEN 4 S card adds two further M.2 slots via a PCIe slot. RAID 0, 1, 5, and 10 are available for SATA devices; RAID 0, 1, and 5 for M.2 PCIe devices. Networking is a standout feature: an Aquantia AQC107 controller provides 10 Gigabit Ethernet, a Realtek RTL8125B chip delivers 2.5 Gigabit Ethernet, and an Intel AX201 module supplies Wi-Fi 6 (802.11ax, up to 2.4 Gbps on 160 MHz channels) and Bluetooth 5.1. Two Thunderbolt 3 ports (Intel JHL7540 controller) on the rear panel support up to 40 Gbps transfer rates and daisy-chaining of up to six devices. Audio is handled by a Realtek ALC1220 codec combined with an ESS E9018 DAC for 7.1-channel high-definition output, complemented by optical S/PDIF output. The Dynamic Dashboard II OLED panel on the board surface displays real-time system status and supports personalisation. USB provisioning covers USB 3.2 Gen 2 (10 Gbps), Gen 1 (5 Gbps), and USB 2.0 across both back-panel and internal headers, totalling a large number of accessible ports for peripherals and front-panel connections. RGB and addressable LED headers include one 4-pin RGB, two 3-pin RAINBOW, and one 3-pin CORSAIR connector. VERIFIED SPECIFICATIONS: - Socket: LGA 1200 | Chipset: Intel Z490 - Form Factor: E-ATX (12 in. x 10.9 in. / 30.5 cm x 27.7 cm) - Memory: 4x DDR4, up to 128 GB; XMP; up to 5000+ MHz OC (1DPC 1R) - Storage: 6x SATA 6 Gb/s; 3x M.2 PCIe 3.0 x4 (Key-M) - PCIe Slots: 3x PCIe 3.0 x16 (x16/x0/x4 or x8/x8/x4); 1x PCIe 3.0 x1 - Multi-GPU: 2-Way NVIDIA SLI; 3-Way AMD CrossFire - LAN: 10G (Aquantia AQC107) + 2.5G (Realtek RTL8125B) - Wireless: Intel AX201 Wi-Fi 6 (802.11ax, 2.4 GHz/5 GHz, 160 MHz) + Bluetooth 5.1 - Thunderbolt 3: 2x Type-C (40 Gbps, Intel JHL7540), daisy-chain up to 6 devices - Audio: Realtek ALC1220 + ESS E9018 DAC, 7.1-channel HD, optical S/PDIF - USB (back panel + internal): USB 3.2 Gen 2 10 Gbps, Gen 1 5 Gbps, USB 2.0 - Power: 16+1+1 phases, 90A SPS, dual 8-pin ATX 12V - OS Support: Windows 10 64-bit - Warranty: 3 Years
