MSI MPG B550 Gaming Edge Wifi DDR4 AMD Motherboard

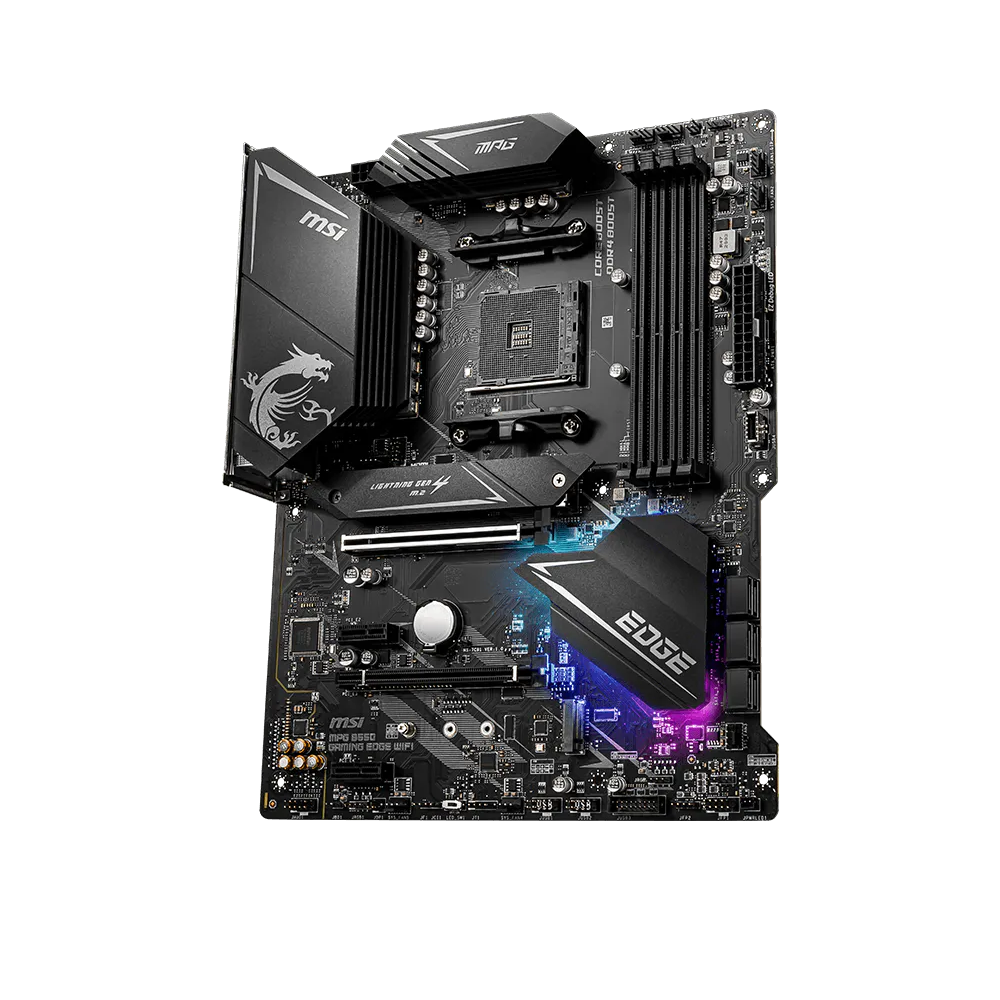

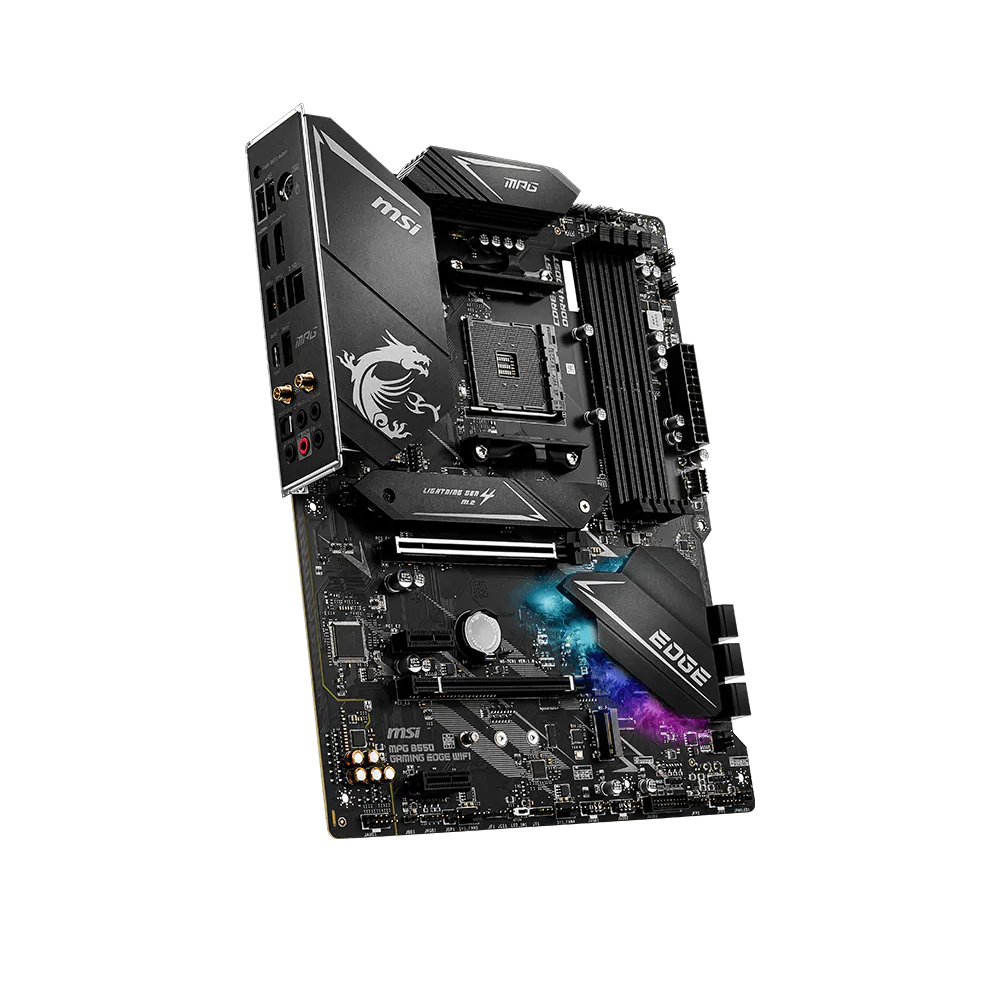

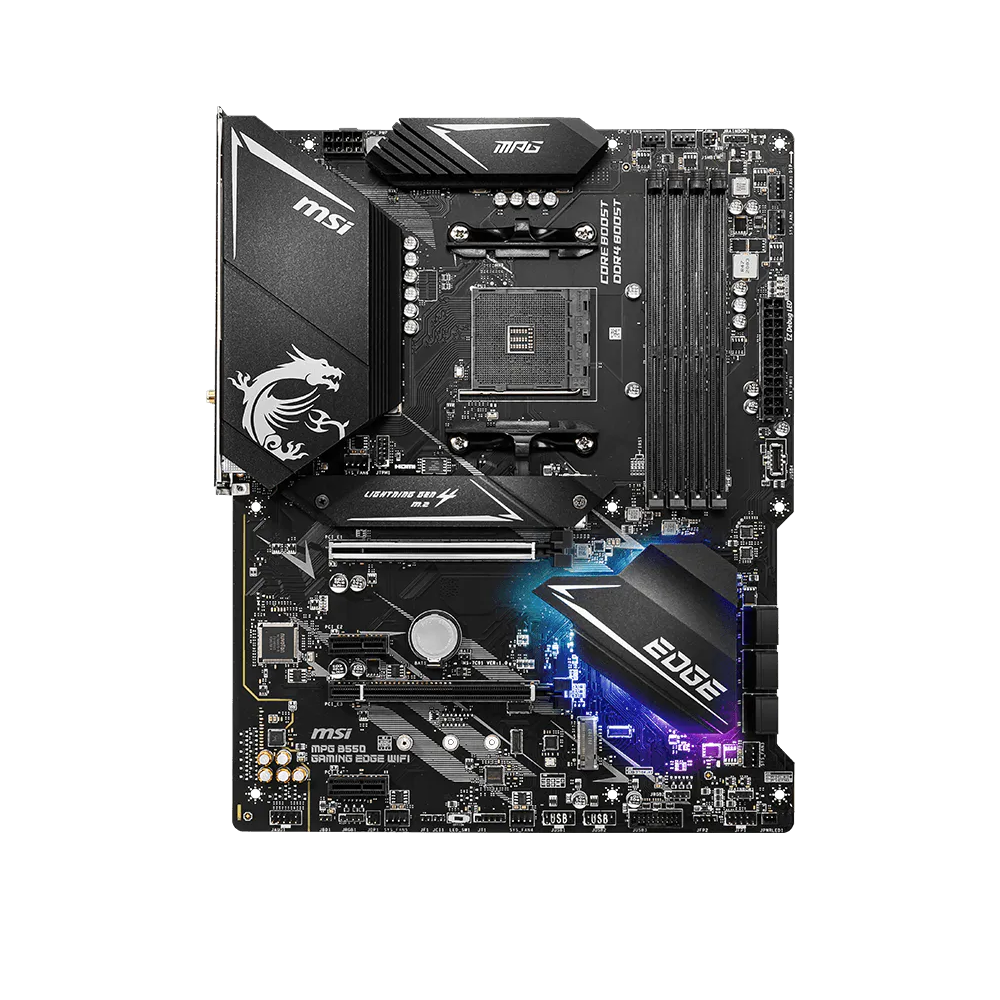

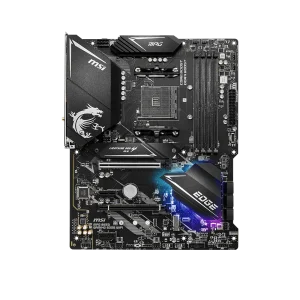

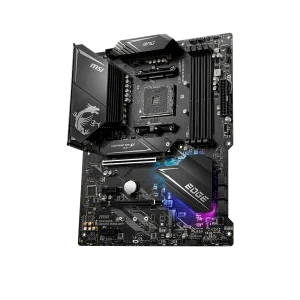

The MSI MPG B550 Gaming Edge WiFi is an ATX-form-factor motherboard built on the AMD B550 chipset, designed for AMD Ryzen 3rd-generation processors on the AM4 socket. A BIOS update extends compatibility to future AMD Ryzen AM4 processors, giving the platform meaningful longevity for enthusiast builds. At the heart of its performance story is a 10+2+1 Duet Rail digital power design paired with MSI Core Boost technology. This VRM configuration is engineered for consistent, precise current delivery to the CPU under sustained multi-core workloads, making it well-suited for both gaming sessions and productivity-heavy tasks. The extended PWM heatsink and a choke thermal pad rated at 7W/mK help keep VRM temperatures in check, while a PCB with 2 oz thickened copper layers supports stable signal integrity throughout. Storage performance is anchored by two M.2 slots. The primary M2_1 slot connects directly to the AMD processor and supports PCIe 4.0/3.0 x4, delivering transfer speeds up to 64 Gb/s when paired with a PCIe 4.0 NVMe drive. An M.2 Shield Frozr thermal cover protects M.2 drives from throttling under load. The secondary M2_2 slot, fed by the B550 chipset, supports PCIe 3.0 x4. Six SATA 6 Gb/s ports round out storage connectivity. Networking is handled by a Realtek RTL8125B 2.5 Gbps wired LAN controller alongside an Intel Wi-Fi 6 AX200 wireless module (pre-installed in the Key-E M.2 slot), supporting 802.11ax with MU-MIMO on both 2.4 GHz and 5 GHz (160 MHz) bands at up to 2.4 Gbps, plus Bluetooth 5.1. For expansion, the board provides one PCIe 4.0/3.0 x16 primary slot, one PCIe 3.0 x16 slot operating at x4 speed, and two PCIe 3.0 x1 slots. Memory capacity tops out at 128 GB across four DDR4 DIMM slots in dual-channel configuration, with JEDEC profiles up to 3200 MHz and A-XMP overclocking support reaching 5100+ MHz (1DPC 1R configuration). USB connectivity spans USB 3.2 Gen 2 10 Gbps (Type-A and Type-C on the rear panel), USB 3.2 Gen 1 5 Gbps, and USB 2.0 ports both on the rear I/O and via internal headers. The rear panel also includes HDMI and DisplayPort outputs for processors with integrated graphics, a PS/2 combo port, optical S/PDIF output, and a Flash BIOS Button for firmware updates without a CPU installed. Mystic Light RGB implementation supports 16.8 million colours and 29 effects, controllable through MSI Center software. Two 4-pin RGB headers and two 3-pin RAINBOW (addressable) headers allow external LED strip connection. Four EZ Debug LEDs assist with rapid POST troubleshooting. Key Verified Specifications: - Chipset: AMD B550 | Socket: AM4 | Form Factor: ATX (12 in. x 9.6 in. / 30.5 cm x 24.4 cm) - Memory: 4x DDR4 DIMM, max 128 GB, JEDEC up to 3200 MHz, A-XMP OC up to 5100+ MHz - Primary M.2: PCIe 4.0/3.0 x4 (processor-direct); Secondary M.2: PCIe 3.0 x4 (chipset) - Storage: 6x SATA 6 Gb/s | RAID 0/1/10 (SATA); RAID 0/1 (NVMe) - LAN: Realtek RTL8125B 2.5 Gbps | Wireless: Intel Wi-Fi 6 AX200, BT 5.1 - Audio: Realtek ALC1200, 7.1-channel HD Audio, S/PDIF out - VRM: 10+2+1 Duet Rail digital power design - I/O Controller: Nuvoton NCT6687-R | Warranty: 3 Years
