MSI MPG B560I Gaming Edge Wifi DDR4 AMD Motherboard

₹21,530.00

Features of MSI MPG B550I Gaming Edge WiFi Motherboard Support for 3srd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update Supports DDR4 Memory, up to 4600(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector Enhanced Power Design: 8 2 1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz

Out of stock

Free shipping on all orders over ₹999

  • 5 days easy returns
  • Order yours before 12.30pm for same day dispatch
Guaranteed Safe Checkout

MSI MPG B560I Gaming Edge Wifi DDR4 AMD Motherboard
MSI MPG B560I Gaming Edge Wifi DDR4 AMD Motherboard
₹21,530.00

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Features of MSI MPG B550I Gaming Edge WiFi Motherboard

  1. Support for 3srd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  2. Supports DDR4 Memory, up to 4600(OC) MHz
  3. Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector
  4. Enhanced Power Design: 8 2 1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost
  5. Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience
  6. 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  7. HDMI 2.1: Support 4K display with up to 4096×2160@60Hz
  8. Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  9. Audio Boost: Reward your ears with studio grade sound quality

Specifications of MSI MPG B560I Gaming Edge Wifi DDR4 AMD Motherboard

Motherboard
CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Back Panel I/O Ports USB 2.0 Wi-Fi / Bluetooth USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors BIOS Flashback Button PS/2 Combo Port HDMI Port USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT
Chipset AMD B550 Chipset
Internal I/O Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x 3-pin RAINBOW LED connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
Memory 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4466/ 4533/ 4600 MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ 1DPC 2R max speed 4000 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory.
Onboard Graphics 1x HDMI 2.0/ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1 Maximum shared memory of 2048 MB Available for the processor with integrated graphics.
Expansion Slots 1x PCIe 4.0/ 3.0 x16 slot 1 The supported specification depends on installed processor.
Storage AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2280 storage devices The supported specification depends on installed processor.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wireless LAN & Bluetooth Intel® AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1
USB AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port) on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Audio Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
I/O Controller NUVOTON NCT6687-R Controller Chip
DIMENSION** Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Warranty** 3 Years
**Note Price, feature and specifications are subject to change without notice.

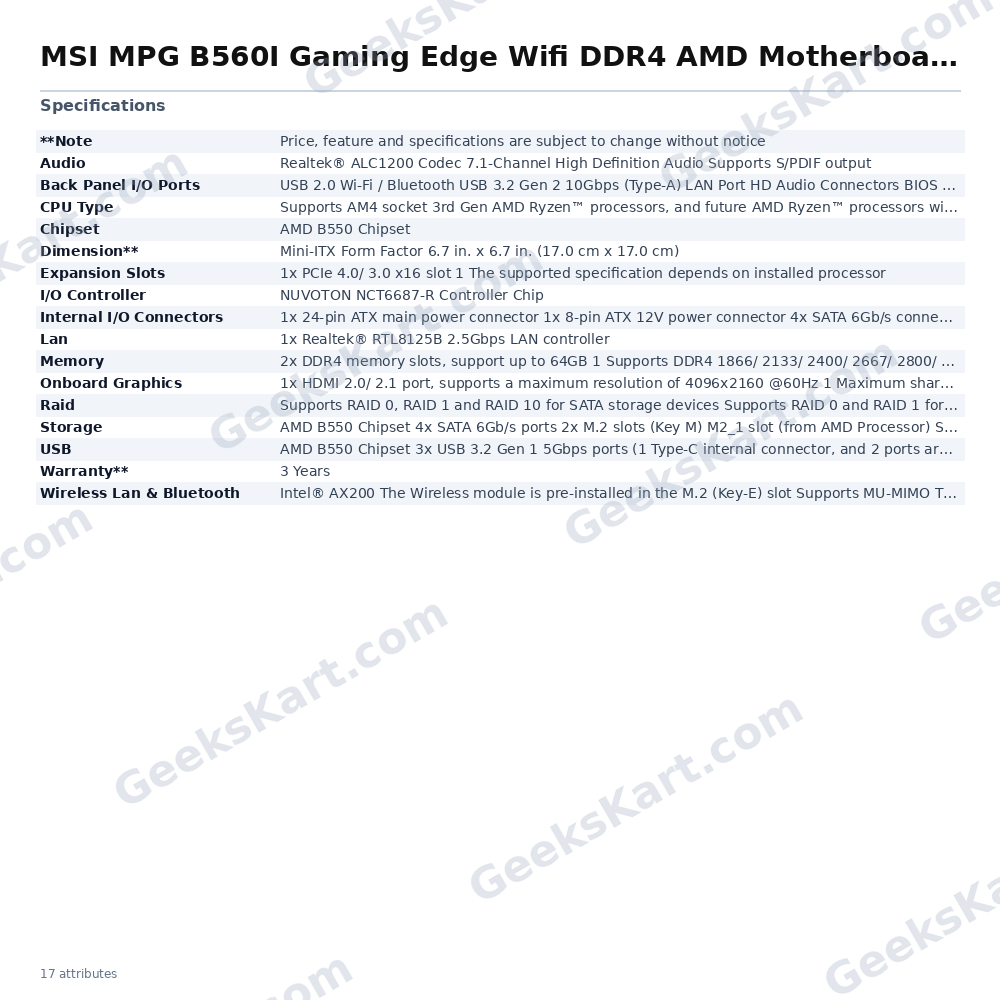

Additional information

Chipset

AMD B550 Chipset
CPU Type

Supports AM4 socket 3rd Gen AMD RyzenTM processors, and future AMD RyzenTM processors with BIOS update
Lan

1x Realtek® RTL8125B 2.5Gbps LAN controller
USB

AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port) on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Raid

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio

Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
**Note

Price, feature and specifications are subject to change without notice
Memory

2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4466/ 4533/ 4600 MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ 1DPC 2R max speed 4000 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports un-buffered memory Please refer http://www.msi.com for more information on compatible memory
Storage

AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2280 storage devices The supported specification depends on installed processor
Warranty**

3 Years
Dimension**

Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
I/O Controller

NUVOTON NCT6687-R Controller Chip
Expansion Slots

1x PCIe 4.0/ 3.0 x16 slot 1 The supported specification depends on installed processor
Onboard Graphics

1x HDMI 2.0/ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1 Maximum shared memory of 2048 MB Available for the processor with integrated graphics
Back Panel I/O Ports

USB 2.0 Wi-Fi / Bluetooth USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors BIOS Flashback Button PS/2 Combo Port HDMI Port USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT
Internal I/O Connectors

1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x 3-pin RAINBOW LED connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
Wireless Lan & Bluetooth

Intel® AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1
