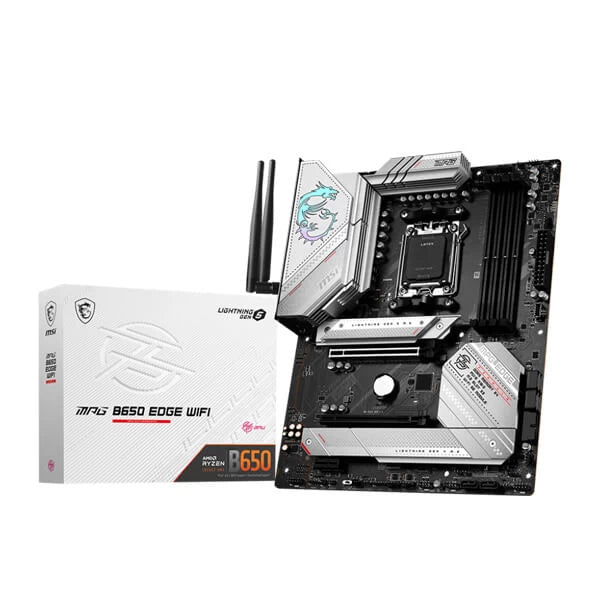

MSI MPG B650 Edge Wifi DDR5 AMD Motherboard

The MSI MPG B650 Edge WiFi is an ATX-form-factor motherboard built around the AMD B650 chipset and the AM5 socket, designed to support AMD Ryzen 7000 series desktop processors. It pairs a robust 14+2+1 DRPS VRM power-delivery design with Core Boost technology, creating a stable power environment for multi-core workloads and CPU overclocking sessions alike. Memory support centres on four DDR5 DIMM slots capable of holding up to 128 GB total. The board natively operates at DDR5 4800 MHz (JEDEC) and reaches overclocked frequencies of up to 6600+ MHz in single-rank, single-DIMM-per-channel configurations. AMD EXPO profiles are supported for straightforward one-click memory tuning. Storage is handled by three M.2 slots: the primary slot (M.2_1, CPU-direct) runs PCIe 5.0 x4 for next-generation NVMe drives at up to 128 Gbps theoretical bandwidth, while M.2_2 and M.2_3 each support PCIe 4.0 x4. Six SATA 6 Gbps ports round out the storage connectivity. The single PCIe x16 slot is wired directly to the CPU via PCIe 4.0, with an additional PCIe 4.0 x2 and a PCIe 3.0 x1 slot drawing from the chipset. Networking is a strong suit: a Realtek RTL8125BG controller delivers 2.5 Gbps wired LAN, while the pre-installed AMD Wi-Fi 6E module covers 2.4 GHz, 5 GHz, and 6 GHz bands at bandwidths up to 160 MHz, with MU-MIMO TX/RX and Bluetooth 5.2. The rear I/O includes a USB 3.2 Gen 2×2 Type-C port at 20 Gbps, three USB 3.2 Gen 2 Type-A ports at 10 Gbps, four USB 3.2 Gen 1 Type-A ports, and two USB 2.0 ports, plus a Flash BIOS Button for CPU-free firmware updates. Video output covers HDMI 2.1 (up to 4K 60 Hz HDR) and DisplayPort 1.4 HBR3 (up to 8K 60 Hz) for Ryzen CPUs with integrated graphics. Audio is powered by the Realtek ALC4080 codec delivering 7.1-channel USB High Performance Audio with up to 32-bit/384 kHz front-panel playback. RGB enthusiasts will find two ARGB V2 headers and two standard RGB headers onboard, all controllable via MSI’s Mystic Light, along with a dedicated EZ LED Control hardware switch. Four EZ Debug LEDs assist with quick diagnosis during POST. The PCB itself is constructed from six layers of IT-170 server-grade material with 2 oz thickened copper traces for improved signal integrity and thermal handling. Verified Specifications: • Chipset: AMD B650 • Socket: AM5 • CPU Support: AMD Ryzen 7000 Series Desktop • Memory: 4x DDR5 slots, max 128 GB, DDR5 4800 (JEDEC) to 6600+ MHz (OC), AMD EXPO • Form Factor: ATX (243.84 mm × 304.8 mm) • M.2 Slots: 1x PCIe 5.0 x4, 2x PCIe 4.0 x4 • SATA: 6x SATA 6 Gbps • PCIe x16: PCIe 4.0 (CPU) • LAN: Realtek RTL8125BG 2.5 Gbps • Wireless: AMD Wi-Fi 6E (802.11ax), Bluetooth 5.2 • Audio: Realtek ALC4080, 7.1-ch, 32-bit/384 kHz • Rear USB: 1x USB 3.2 Gen 2×2 Type-C (20 Gbps), 3x USB 3.2 Gen 2 Type-A (10 Gbps), 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0 • Video Out: 1x HDMI 2.1, 1x DisplayPort 1.4 • VRM: 14+2+1 DRPS • Warranty: 3 Years
