Features Of MSI MPG B650I Edge Wifi DDR5 AMD Motherboard
Core Boost
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.
Optimized PCB Solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 10 PCB layers
- IT-150 Server-grade PCB material
- 2oz Thickened Copper
Windows 11 Certified
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

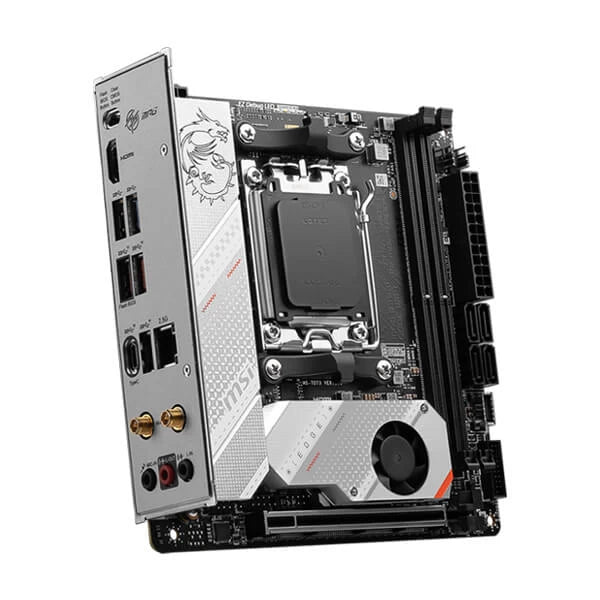

Pre-Installed I/O Shield
The design protect your IO ports and makes your installation process easier and safer.
XL Clip
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ Debug LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
Lightning Gen 4 PCI-E with Steel Armour
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
Reinforced, Heavy Soldered Connections
MSI PCI Express Steel Armour slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armour shields the point of contact from electromagnetic interference.
- 2x Lightning Gen 4 M2 64 Gbps
- 4x 4 Gbps
Lightning USB 20G
Double Bandwidth with Lightning USB 3.2 Gen 2×2 20G
Using USB 3.2 devices has never been faster! MPG B650I EDGE WIFI offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB Front Type-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Extend Your RGB Experience with Ease
Add more colour if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
2.5G LAN & Wi-Fi 6E
High-Bandwidth and Low-Latency Network
MSI’s premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.2
- 2.5G LAN
Ambient Link
Synchronize lighting theme with compatible lighting devices.
A-Rainbow V2
Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
Gen2 device only supports 7 RGB themes
Easy Overclocking Game On
Get into the game faster with AMD EXPO™ Technology
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- MSI MPG B650I Edge Wifi DDR5 Memory, up to 6600+(OC) MHz
- Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

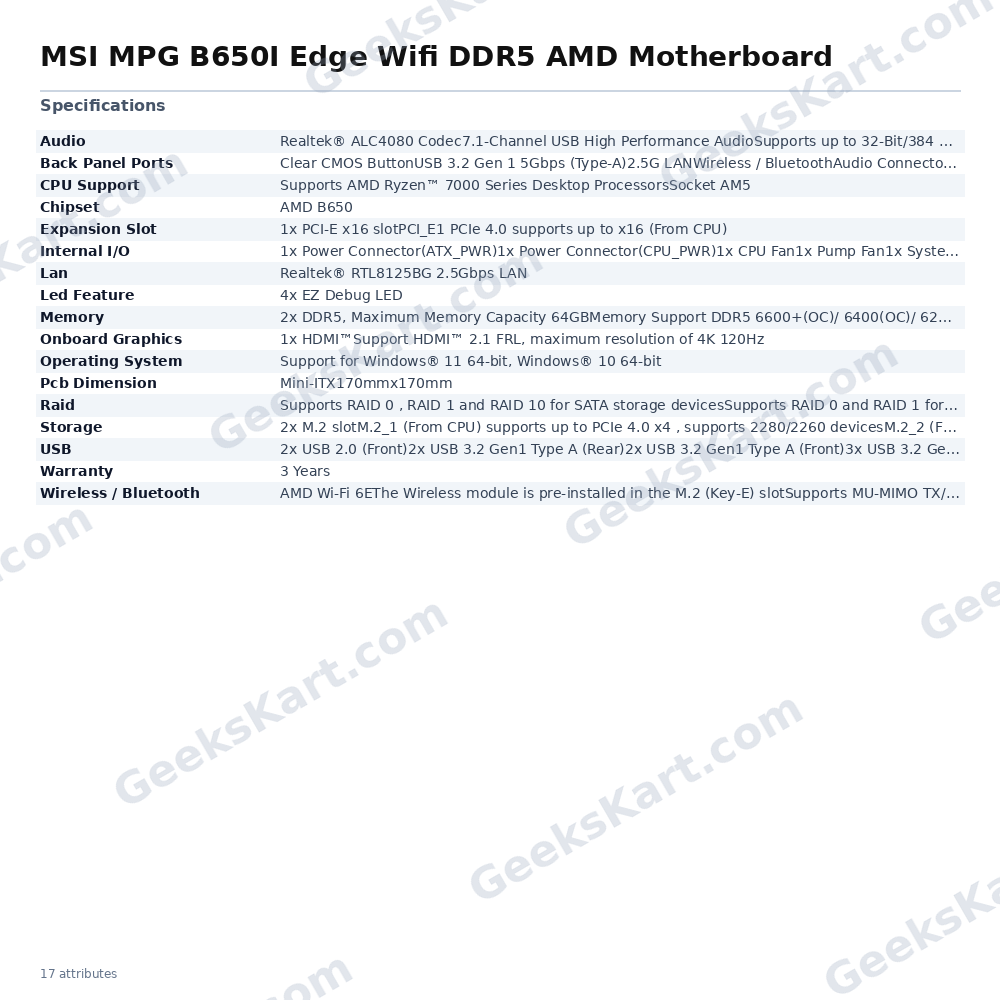

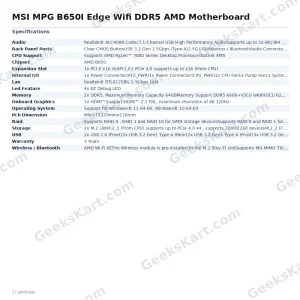

Specifications Of MSI MPG B650I Edge Wifi DDR5 AMD Motherboard
| Chipset | AMD B650 |
| CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5 |
| Memory |
2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| Onboard Graphics |
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz |
| EXPANSION SLOT |
1x PCI-E x16 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU) |
| Storage |
2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G port |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN |
Realtek® RTL8125BG 2.5Gbps LAN
|
| WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Audio |
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE |
4x EZ Debug LED
|

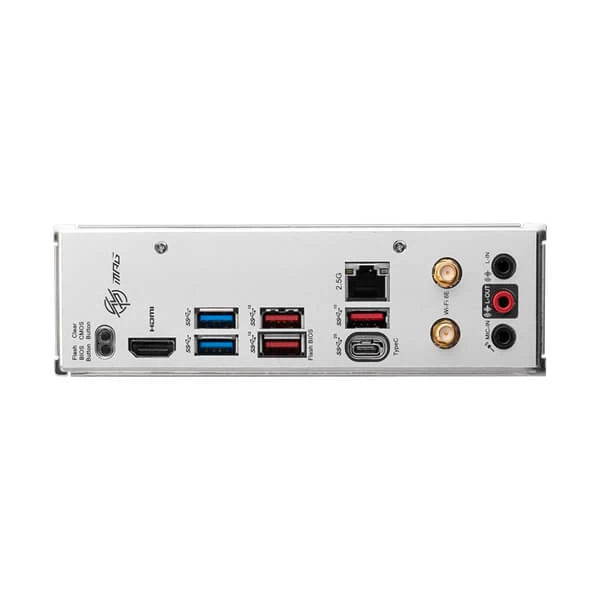

| BACK PANEL PORTS |
Clear CMOS Button
USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wireless / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
| PCB Dimension |
Mini-ITX
170mmx170mm |
| Warranty | 3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
| 3 Years |
