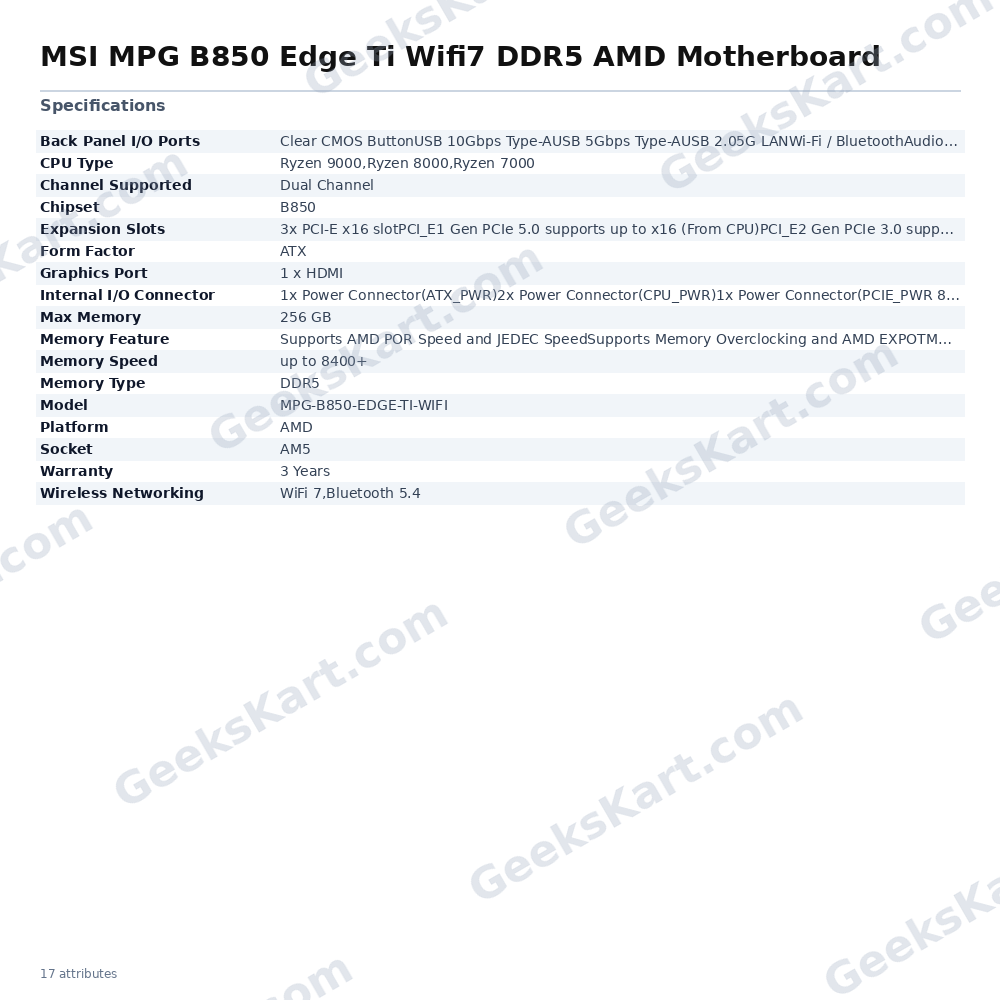

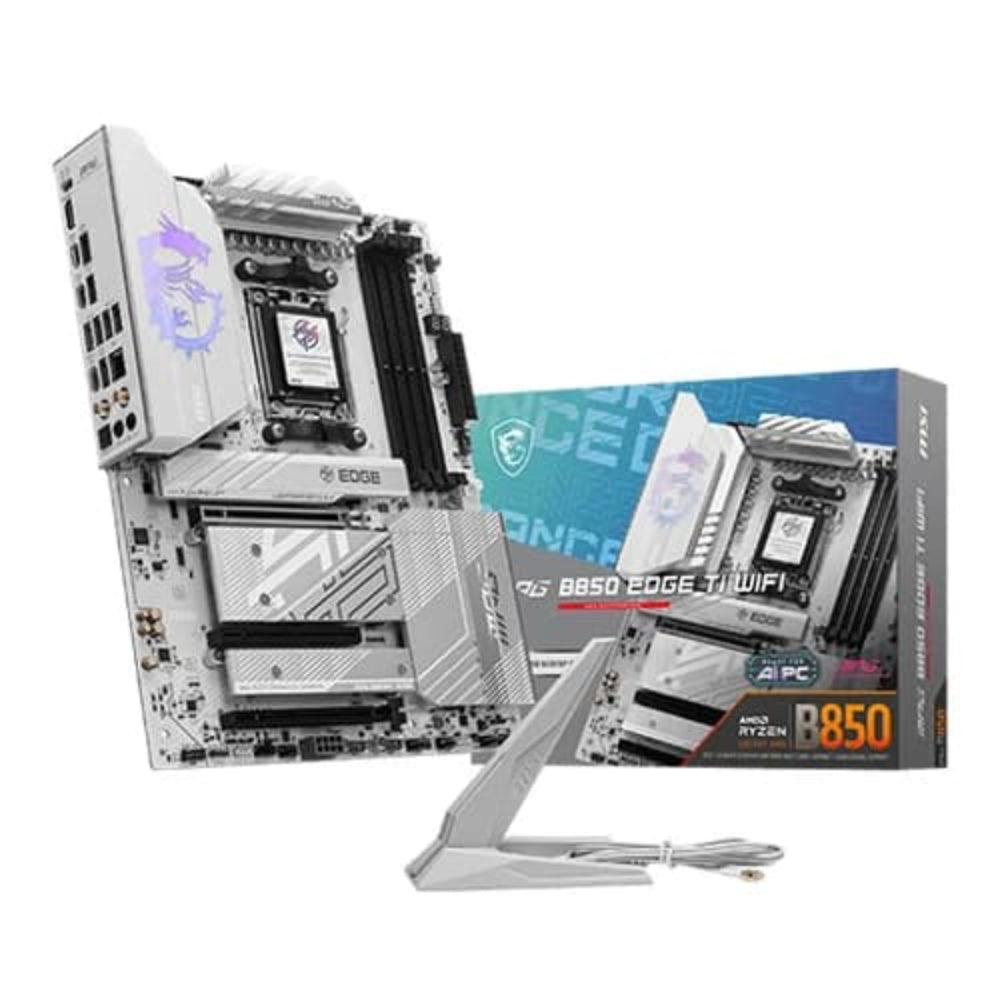

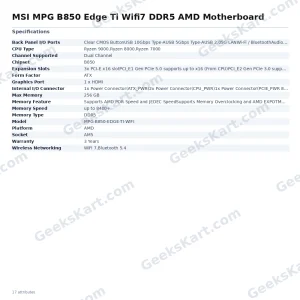

MSI MPG B850 Edge Ti Wifi7 DDR5 AMD Motherboard

The MSI MPG B850 Edge Ti WiFi 7 is a full-size ATX motherboard built on the AMD B850 chipset for AM5-socket processors. It is compatible with AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series desktop CPUs, giving builders a forward-looking platform that supports current and recent-generation Ryzen silicon. Power delivery centres on a 14+2+1 Duet Rail Power System paired with dual 8-pin CPU power connectors and 80A Smart Power Stage components. The eight-layer PCB uses 2 oz thickened copper traces and server-grade materials, helping sustain stable voltages under extended high-load workloads such as gaming sessions or content creation. Thermal management is addressed through MSI's Frozr Guard design. An enlarged chipset heatsink works alongside MOSFET thermal pads rated at 7 W/mK and M.2 Shield Frozr covers that keep solid-state drives cool and help prevent thermal throttling. Memory support extends to dual-channel DDR5, with overclocked profiles reaching DDR5-8400+ MT/s via AMD EXPO or manual tuning. The board supports up to 256 GB of non-ECC unbuffered DDR5, and also accommodates CUDIMM modules in clock-driver bypass mode (compatibility may vary by CPU; check MSI's memory compatibility list). Expansion is handled by a primary PCIe 5.0 x16 slot (from the CPU) for the discrete GPU, a PCIe 4.0 x4 slot, and a PCIe 3.0 x1 slot. Storage is served by a Lightning Gen 5 M.2 slot alongside additional M.2 connectors. Connectivity highlights include onboard Intel Wi-Fi 7 with Bluetooth 5.4, a 2.5G/5G LAN port, and a rear-panel USB 20 Gbps Type-C port. Audio Boost 5 provides a dedicated audio circuit for clear in-game and multimedia sound, supplemented by an optical S/PDIF output. User-friendly features include EZ PCIe Release (a button that ejects graphics cards without a tool), EZ M.2 Clip II and EZ M.2 Shield Frozr II for tool-free M.2 installation, Flash BIOS Button for firmware updates without a CPU installed, and EZ Antenna for wireless antenna attachment. Key Specifications: - Brand / Model: MSI MPG-B850-EDGE-TI-WIFI - Socket: AM5 | Chipset: AMD B850 - CPU Compatibility: Ryzen 9000 / 8000 / 7000 series - Form Factor: ATX - Memory: DDR5 dual-channel, up to 256 GB, up to 8400+ MT/s (OC) - PCIe: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (chipset), 1× PCIe 3.0 x1 (chipset) - Storage: Lightning Gen 5 M.2 + additional M.2 slots (with M.2 Shield Frozr) - Wireless: Wi-Fi 7, Bluetooth 5.4 - LAN: 5G LAN - Rear USB: USB 20 Gbps Type-C × 2, USB 10 Gbps Type-A, USB 5 Gbps Type-A, USB 2.0 - Internal USB: USB 20 Gbps Type-C × 1, USB 5 Gbps Type-A × 4, USB 2.0 × 4 - Display: 1× HDMI - RGB: 3× ARGB V2 headers, 1× RGB header - VRM: 14+2+1 Duet Rail, dual 8-pin CPU connectors, 80A Smart Power Stage - Warranty: 3 Years (manufacturer)
