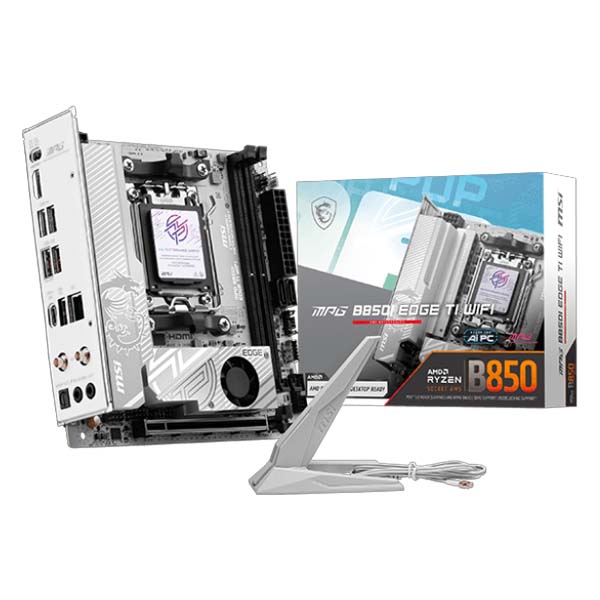

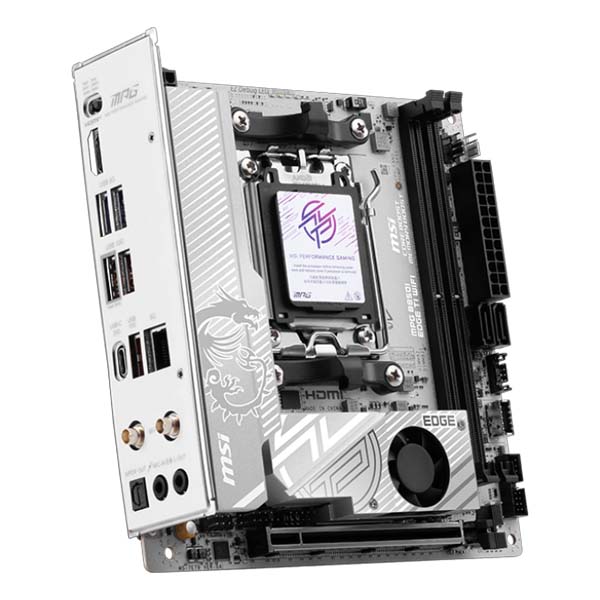

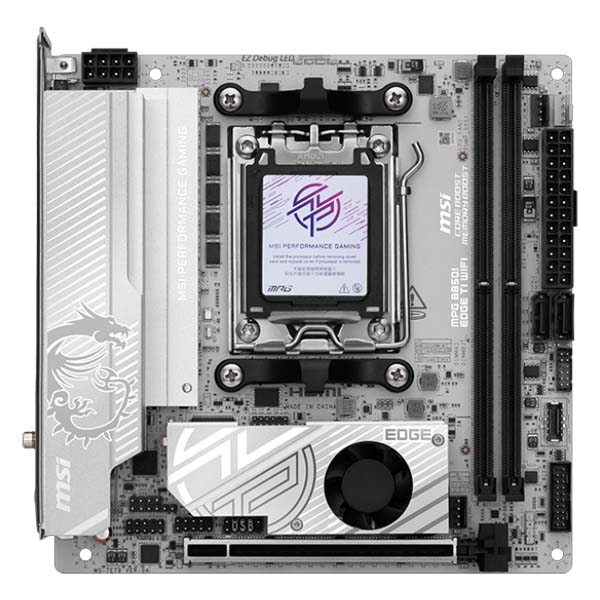

MSI MPG B850I Edge TI WiFi Motherboard
MPN MPG-B850I-EDGE-TI-WIFI · Brand MSI · Mini-ITX
*Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors *Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) *Ult
Inclusive of GST · GST invoice available
Overview
- *Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- *Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- *Ult

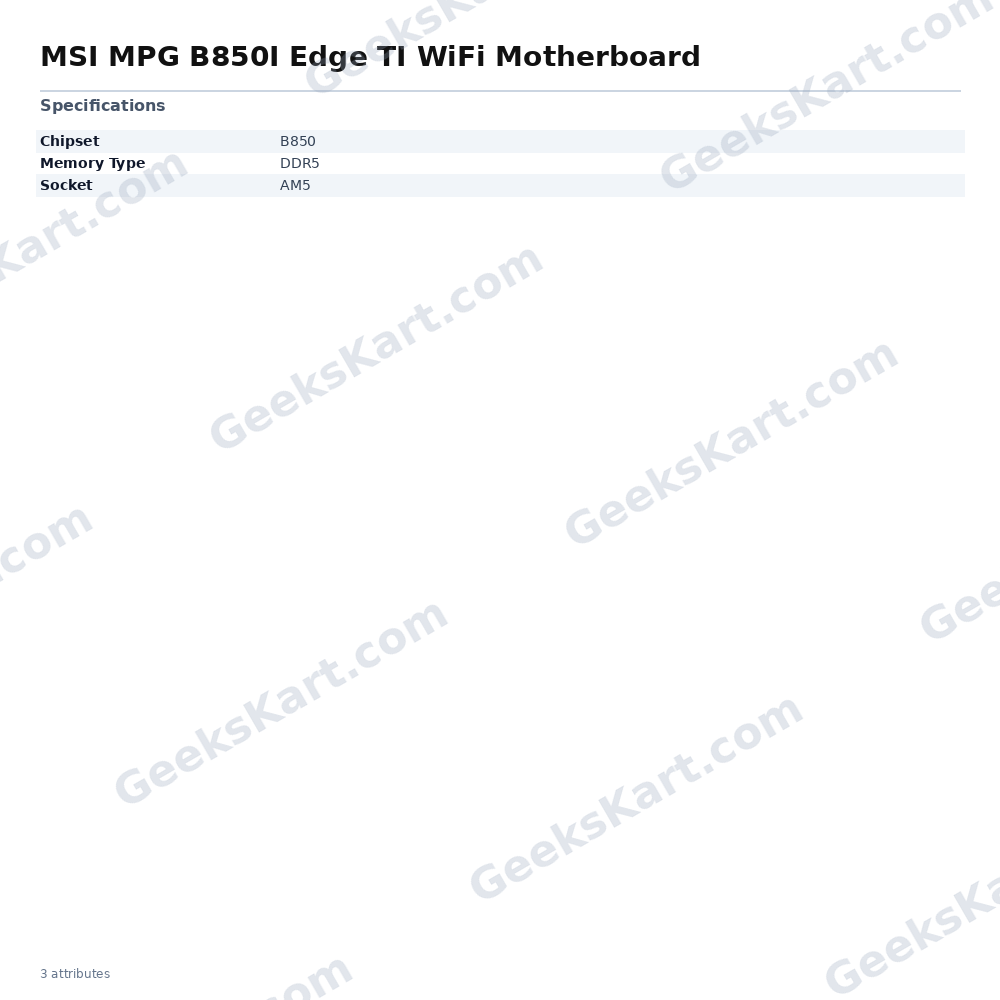

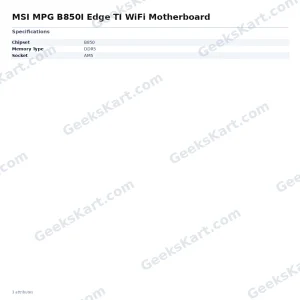

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | Mini-ITX |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 128 GB |
| Memory Speed | up to 8200+ |
| Platform | AMD |
| Graphics Port | 1x HDMI |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Expansion Slots | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

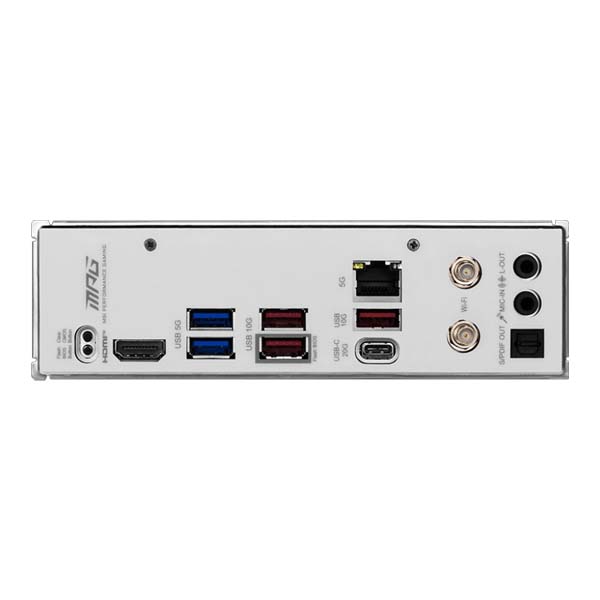

| Back Panel I/O Ports | Clear CMOS Button 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI USB 5Gbps Type-A USB 10Gbps Type-A USB 20Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
