MSI MPG X570S Edge Max Wifi DDR4 AMD Motherboard

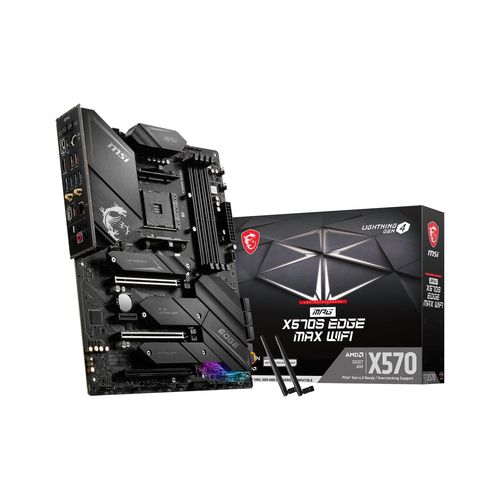

The MSI MPG X570S Edge Max WiFi is an ATX-form-factor motherboard built on the AMD X570 chipset and the AM4 socket, designed to support AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors. It supports DDR4 memory with XMP/OC profiles up to 5300+ MHz, giving enthusiast builders a meaningful headroom for memory tuning. At the heart of its power delivery is a 12+2 Duet Rail Power System, pairing 12 CPU power phases with 2 SOC phases. Each CPU power stage is rated at 75A via Smart Power Stage design. Dual CPU power connectors — one 8-pin and one 4-pin — ensure stable delivery under sustained load. MSI's Core Boost and DDR4 Boost technologies are included to help optimise signal integrity across VRM and memory traces. Storage and expansion flexibility is strong: two PCIe 4.0 x16 slots carry MSI Steel Armor reinforcement for heavy graphics cards, complemented by one PCIe 3.0 x16 slot. M.2 support runs at Lightning Gen 4 x4 speeds, with M.2 Shield Frozr heatsinks on slots to reduce thermal throttling. USB 3.2 Gen 2 connectivity is present on the rear I/O. Thermal management extends to the VRM heatsink assembly, which uses a 7W/mK thermal pad on the power stages plus an additional choke thermal pad. The PCB itself is a premium 6-layer design with 2 oz. copper layers to aid heat spreading and long-term reliability. Multiple fan headers are available for system cooling, including a dedicated pump-fan header for AIO liquid coolers. MSI MYSTIC LIGHT delivers addressable RGB control supporting 16.8 million colours across 29 lighting effects, all manageable from a single software interface. The board launched in September 2021 and carries model number 911-7D53-003. Verifiable Specifications: — Form Factor: ATX — Socket: AMD AM4 — Chipset: AMD X570 — Memory Type: DDR4 (up to 5300+ MHz OC) — CPU Power Phases: 12+2 Duet Rail (75A Smart Power Stage) — CPU Power Connectors: 8-pin + 4-pin — PCIe Slots: 2x PCIe 4.0 x16 (Steel Armor), 1x PCIe 3.0 x16 — M.2: Lightning Gen 4 x4 with M.2 Shield Frozr — USB: USB 3.2 Gen 2 — RGB: MYSTIC LIGHT (16.8M colours, 29 effects) — PCB: 6-layer, 2 oz. copper — Dimensions: 12 x 9.6 x 2.5 inches (30.5 x 24.4 x 6.4 cm) — Weight: 2.2 pounds — Item Model Number: 911-7D53-003 — Country of Origin: China
