MSI MPG X870I Edge TI EVO WIFI7 M-ITX Motherboard

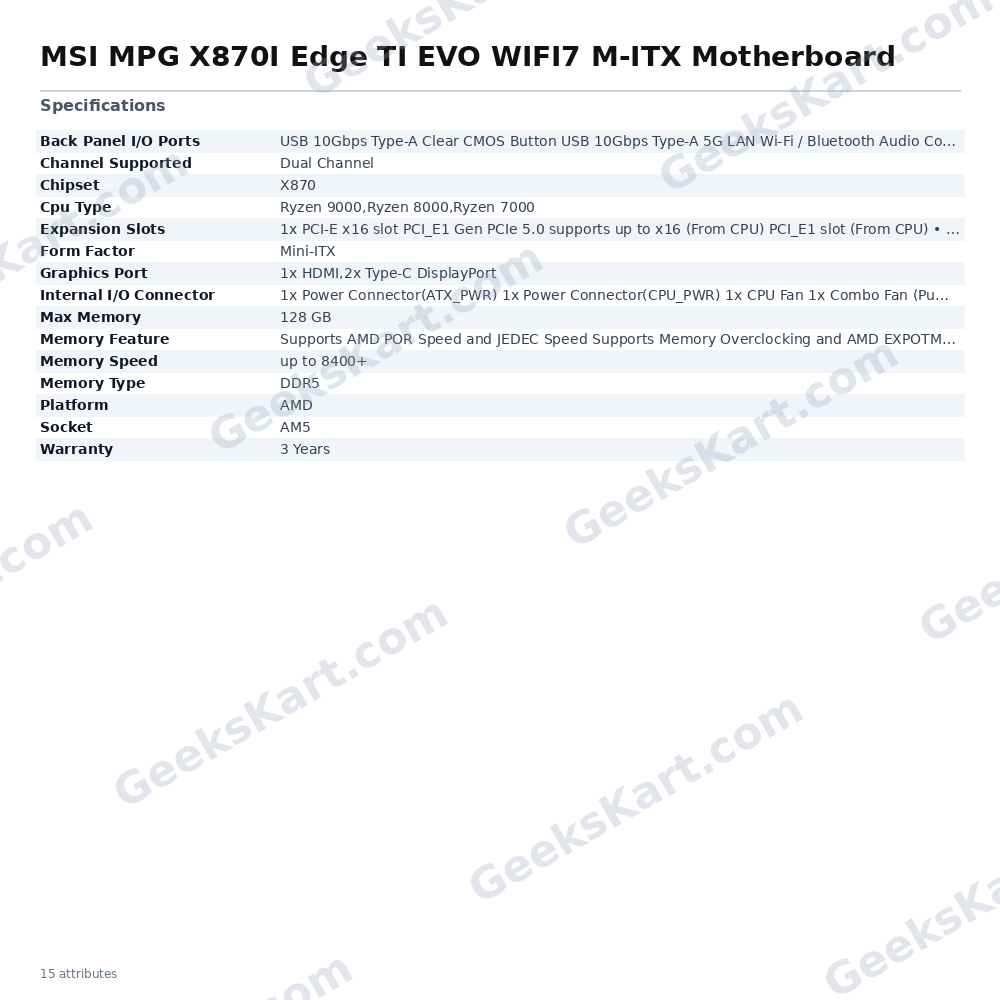

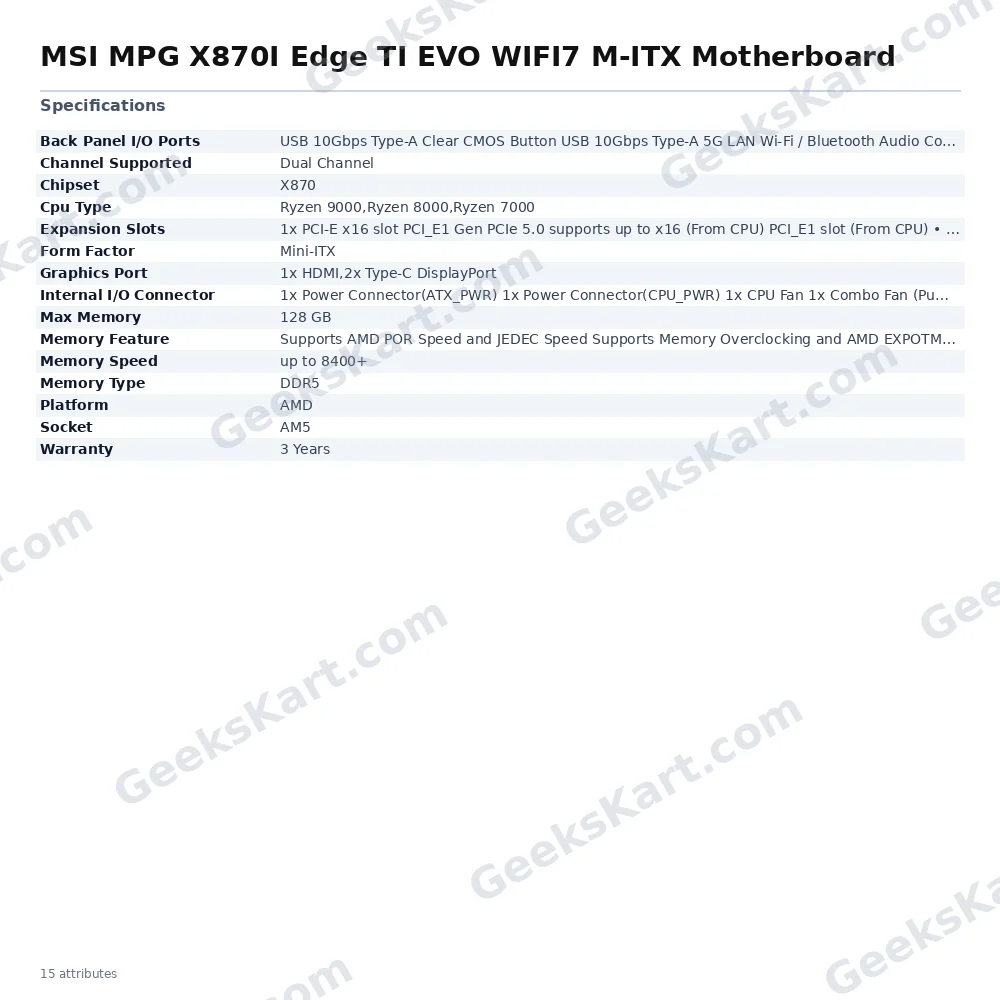

The MSI MPG X870I Edge TI EVO WIFI7 is a Mini-ITX form-factor motherboard built on AMD’s X870 chipset and designed for the AM5 socket. It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series desktop processors, making it a versatile platform for compact high-performance builds today and tomorrow. At the heart of its power delivery sits an 8+2+1 Duet Rail Power System paired with dual power connectors and 110A Smart Power Stage components. This VRM configuration is engineered to sustain demanding multi-core workloads without thermal throttling. The 12-layer PCB is constructed with 1oz thickened copper and server-grade materials, with MSI’s PCB Fabric Technology delivering tighter impedance control, improved signal integrity, and better thermal stability under load. Memory support extends to dual-channel DDR5 with a rated speed of up to 8400+ MT/s (and DDR5 10000+ MT/s under overclocking), with a maximum capacity of 128 GB. The board supports AMD EXPO profiles, JEDEC speeds, Non-ECC Unbuffered memory, and CUDIMM in Clock Driver bypass mode. The single PCIe x16 slot operates at PCIe 5.0 x16 for Ryzen 9000 and 7000 series CPUs, dropping to PCIe 4.0 x8 or x4 for certain Ryzen 8000 SKUs. Connectivity is a clear highlight. The rear I/O features a USB4 (40 Gbps) Type-C port, two USB 10 Gbps Type-A ports, one USB 10 Gbps Type-C port, 5G LAN, Wi-Fi 7 with Bluetooth, HDMI, two Type-C DisplayPort outputs, Optical S/PDIF, and audio connectors. Internal headers add two USB 2.0 ports, two USB 5 Gbps Type-A ports, and one USB 20 Gbps Type-C port alongside ARGB V2 and standard fan/pump headers. Storage is served by MSI’s Lightning Gen 5 M.2 slot, and thermal management is handled by the Frozr Guard system — an enlarged heatsink with 7W/mK MOSFET thermal pads, additional choke thermal pads, and M.2 Shield Frozr to keep NVMe drives at safe operating temperatures during sustained reads and writes. The pre-installed I/O shield simplifies assembly in tight ITX cases. A silver-white colour scheme makes the board a natural fit for monochrome builds. Verified Specifications: – Socket: AM5 | Chipset: X870 | Form Factor: Mini-ITX – Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 series – Memory: DDR5 Dual-Channel, up to 128 GB, up to 8400+ MT/s (DDR5 10000+ MT/s OC) – Expansion: 1x PCIe 5.0 x16 (CPU), 1x FP card slot (MSI 5-in-1 XPANDER only) – Storage: Lightning Gen 5 M.2 – Rear I/O: USB4 40 Gbps Type-C, USB 10 Gbps Type-A ×2, USB 10 Gbps Type-C, 5G LAN, Wi-Fi 7, HDMI, 2x Type-C DisplayPort, Optical S/PDIF – Internal I/O: USB 20 Gbps Type-C, USB 5 Gbps Type-A ×2, USB 2.0 ×2, ARGB V2 – VRM: 8+2+1 Duet Rail, 110A Smart Power Stage – PCB: 12-layer, 1oz thickened copper – Warranty: 3 Years
