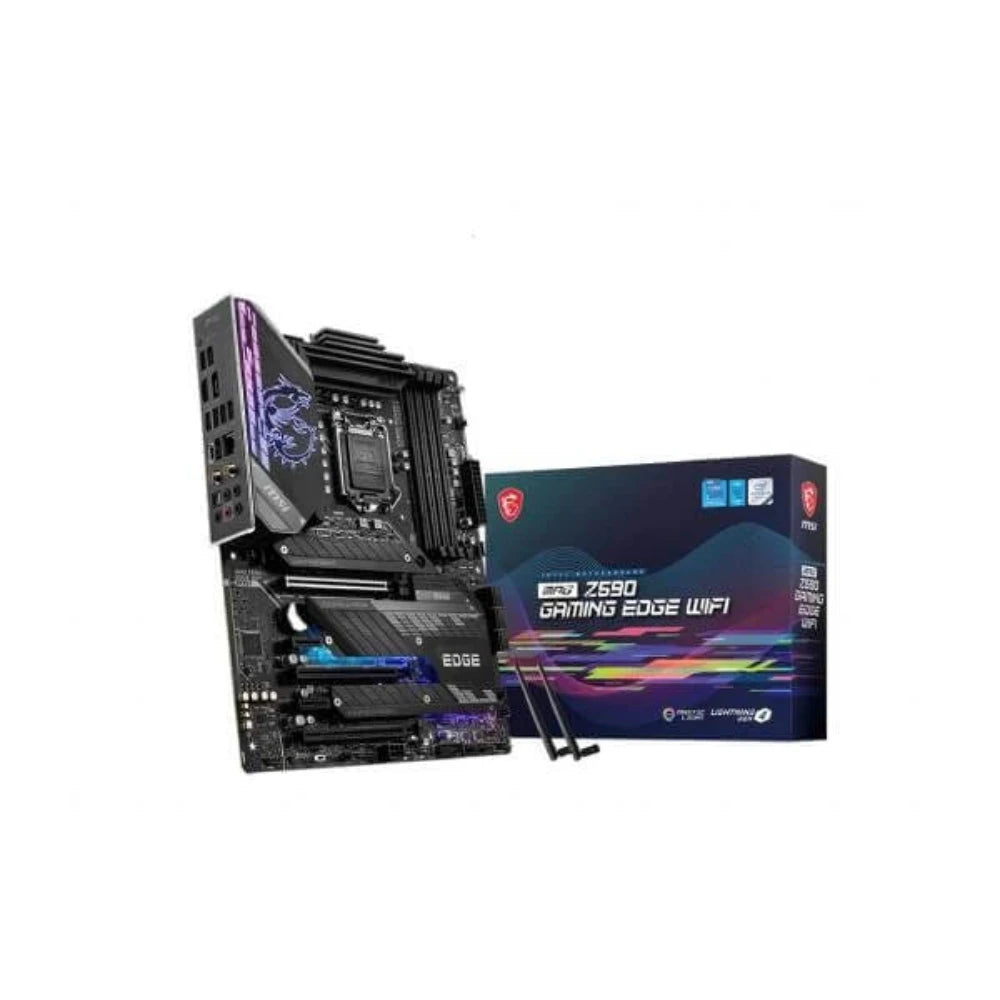

MSI MPG Z590 Gaming Edge Wifi DDR4 Intel Motherboard

The MSI MPG Z590 Gaming Edge WiFi is a full-size ATX motherboard built on the Intel Z590 chipset, designed for Intel 10th and 11th Generation Core, Pentium Gold, and Celeron processors in the LGA1200 socket. It measures 12 in. x 9.6 in. (30.5 cm x 24.4 cm) and fits standard ATX enclosures with 9 mounting points. For builders targeting high-speed storage, the M2_1 slot (available with 11th Gen Intel CPUs only) runs at PCIe 4.0 x4, while the M2_2 and M2_3 slots operate at up to PCIe 3.0 x4 or SATA 6Gb/s. All three M.2 slots are covered by MSI's M.2 Shield Frozr thermal management. Six SATA 6Gb/s ports handle additional drives, with RAID 0, 1, 5, and 10 support for SATA and RAID 0, 1, and 5 for M.2 PCIe devices. Memory support spans four DDR4 slots accommodating up to 128GB in dual-channel configuration. Native JEDEC speeds reach 3200 MHz on 11th Gen CPUs, while XMP overclocking can push single-rank, single-DIMM configurations to 5333 MHz under optimal conditions. The board's 14+1+1 Duet Rail Power System is fed by dual 8-pin ATX 12V connectors, providing headroom for overclocking workloads. Connectivity is a strong point: the integrated Intel Wi-Fi 6E AX210 module supports 802.11ax on 2.4 GHz, 5 GHz, and 6 GHz bands (160 MHz channels, up to 2.4 Gbps theoretical throughput), along with Bluetooth 5.2. Wired networking is handled by an Intel I225V 2.5Gbps controller. The rear I/O panel includes one USB 3.2 Gen 2x2 Type-C port (20 Gbps), three USB 3.2 Gen 2 Type-A ports (10 Gbps), two USB 3.2 Gen 1 Type-A ports (5 Gbps), two USB 2.0 Type-A ports, HDMI 2.0b, DisplayPort 1.4 (both supporting up to 4K 60Hz for integrated graphics), optical S/PDIF out, and a Flash BIOS Button for CPU-free firmware updates. Audio is powered by a Realtek ALC4080 codec delivering 7.1-channel high-definition output with S/PDIF support. RGB enthusiasts will find two 4-pin RGB headers and two 3-pin RAINBOW headers for addressable LED strips, all controllable through MSI's Mystic Light software (16.8 million colors, 29 effects). Four EZ Debug LEDs assist with rapid troubleshooting during POST. Verified Specifications: - Socket: LGA1200 | Chipset: Intel Z590 - CPU Support: Intel 10th & 11th Gen Core, Pentium Gold, Celeron - Memory: 4x DDR4 DIMM, max 128GB, up to 5333 MHz (OC), XMP supported - Expansion: 3x PCIe x16 (x16/x4/x4), 2x PCIe 3.0 x1 - Storage: 3x M.2 (M-Key), 6x SATA 6Gb/s; RAID 0/1/5/10 (SATA) - USB: 1x USB 3.2 Gen 2x2 (20G), 4x Gen 2 (10G), 4x Gen 1 (5G), 6x USB 2.0 - Network: Intel I225V 2.5GbE + Intel Wi-Fi 6E AX210 + Bluetooth 5.2 - Audio: Realtek ALC4080, 7.1-Ch HD, S/PDIF out - Display: HDMI 2.0b + DisplayPort 1.4 (4K 60Hz each) - Form Factor: ATX, 30.5 cm x 24.4 cm - PCB: 6-layer, 2oz thickened copper - Warranty: 3 Years
