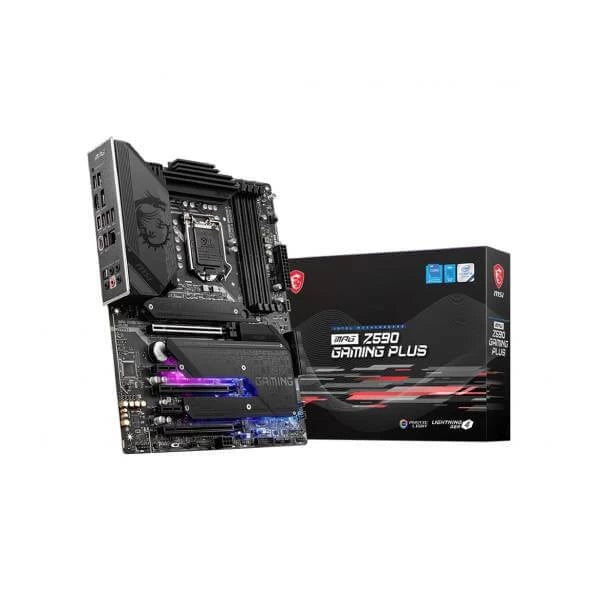

MSI MPG Z590 Gaming Plus DDR4 Intel Motherboard

The MSI MPG Z590 Gaming Plus is an ATX form-factor motherboard built on Intel's Z590 chipset for the LGA1200 socket, supporting both 10th Generation and 11th Generation Intel Core, Pentium Gold, and Celeron processors. Its 14+1+1 Duet Rail Power System, paired with dual 8-pin ATX 12V CPU power connectors, delivers stable and sustained power delivery even under heavy multi-core workloads or overclocking scenarios. The primary PCIe x16 slot, drawing bandwidth directly from the CPU, supports PCIe 4.0 when paired with an 11th Gen Intel processor, making it well-suited for high-throughput discrete graphics and NVMe storage. Memory support spans four DDR4 slots accommodating up to 128 GB in dual-channel configuration. Native JEDEC speeds reach 3200 MHz with 11th Gen CPUs, and Intel XMP profiles enable overclocking to a validated maximum of 5333 MHz (1DPC 1R). Storage options are generous: three M.2 Key-M slots include one CPU-direct slot capable of PCIe 4.0 x4 (11th Gen only, up to 22110 length) and two chipset-connected slots supporting PCIe 3.0 x4 or SATA 6 Gb/s. Six SATA 6 Gb/s ports round out internal storage, with RAID 0/1/5/10 available for SATA devices. Connectivity highlights include an Intel I225-V 2.5 Gbps wired LAN controller and a comprehensive USB layout: one USB 3.2 Gen 2x2 (20 Gbps) Type-C on the rear panel, three USB 3.2 Gen 2 (10 Gbps) Type-A rear ports, plus an additional internal 10 Gbps Type-C header. Audio is handled by a Realtek ALC4080 codec delivering 7.1-channel high-definition audio with optical S/PDIF output. MSI's Mystic Light system provides 16.8 million colours across 29 effects via two 4-pin RGB and two 3-pin addressable RAINBOW LED headers. Thermal management features an enlarged heatsink with heat-pipe, 7 W/mK MOSFET thermal pads, and three M.2 Shield Frozr covers to maintain SSD performance under sustained load. A pre-installed I/O shield and a Flash BIOS Button on the rear panel simplify installation and BIOS recovery without a CPU. VERIFIED SPECIFICATIONS Chipset: Intel Z590 | Socket: LGA1200 | Form Factor: ATX (12 in × 9.6 in / 30.5 cm × 24.4 cm) | CPU Support: 10th & 11th Gen Intel Core, Pentium Gold, Celeron | Memory: 4× DDR4, max 128 GB, dual-channel, XMP, up to 5333 MHz (OC) | PCIe: 1× PCIe 4.0 x16 (CPU, 11th Gen), 2× PCIe 3.0 x16 (chipset, x4 electrical), 2× PCIe 3.0 x1 | Storage: 3× M.2 (1× PCIe 4.0 x4 CPU-direct, 2× PCIe 3.0 x4/SATA chipset), 6× SATA 6 Gb/s | USB rear: 1× USB 3.2 Gen 2x2 Type-C, 3× USB 3.2 Gen 2 Type-A, 2× USB 3.2 Gen 1 Type-A, 2× USB 2.0 | LAN: Intel I225-V 2.5 Gbps | Audio: Realtek ALC4080, 7.1-ch, S/PDIF | Display: HDMI 2.0b (4K/60Hz), DisplayPort 1.4 (4K/60Hz) | Multi-GPU: 2-Way AMD CrossFire | RGB: Mystic Light, 2× 4-pin RGB + 2× 3-pin RAINBOW headers | VRM: 14+1+1 DRPS, dual 8-pin CPU power | Warranty: 3 Years
