Features of MSI Pano 130R ARGB ATX Mid Tower Cabinet ( Red )
CROSS THE RIFT, LEGENDS UNFOLD
Loong: Nia is a captivating, wholly original character created by MSI. This product incorporates striking red accents inspired by her passionate and curious personality, giving gamers a bold, distinctive style that stands out from the crowd.
THE CRIMSON WILL OF THE LOONG NIA
The PANO 130R MLG EDITION is designed with armored crimson — an intense, glossy red with a deep and refined finish — reflecting the unyielding strength of the Loong Nia and her passion for mecha technology.
AIRFLOW OPTIMIZATION
Supports up to 10 x 120mm fans and a 360mm radiator on the top for maximum airflow, lower temps, and better performance. Find more detail about cooling support.
HIGH COMPATIBILITY
This PC case supports standard motherboards as well as ATX and Micro-ATX back-connect motherboards. Up to 400 mm graphics card. Front Type-C connector support PD function.

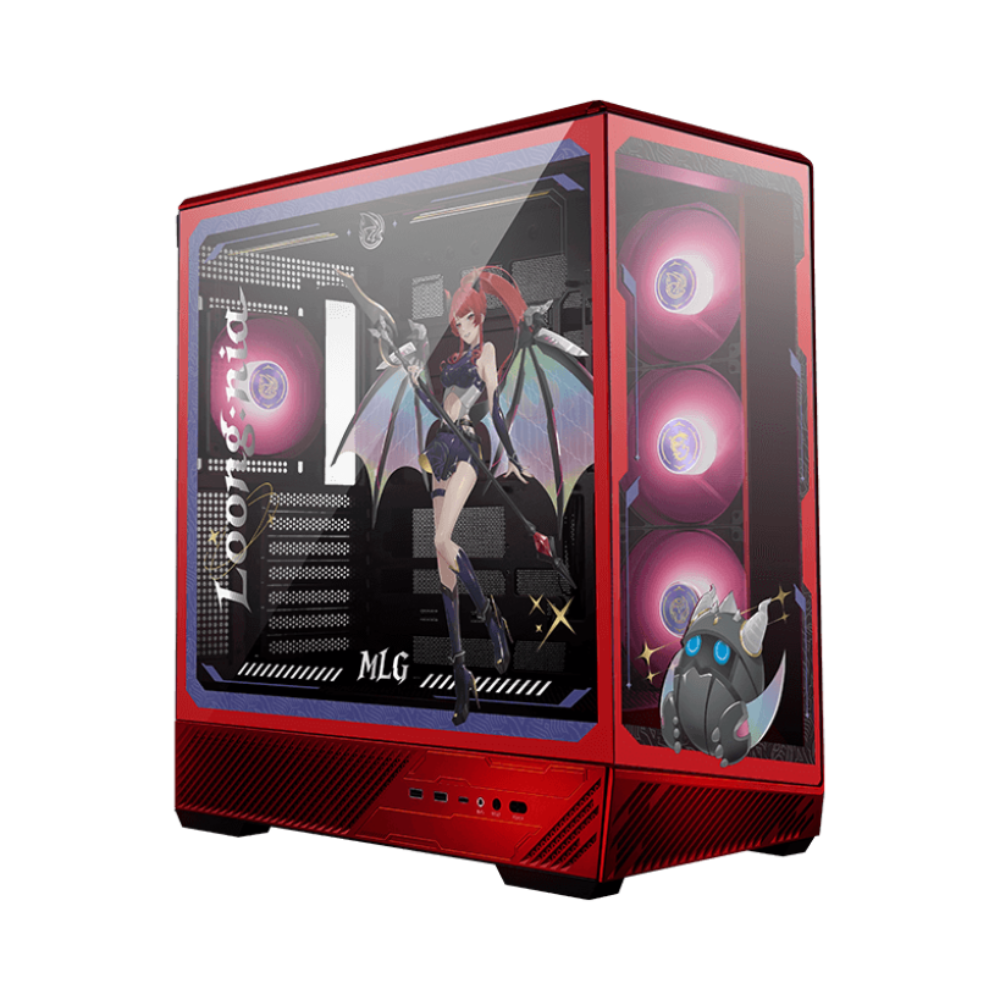

PANO 130R MLG EDITION
- Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup.
- Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
- Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup.
- Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan’s beauty without interference.

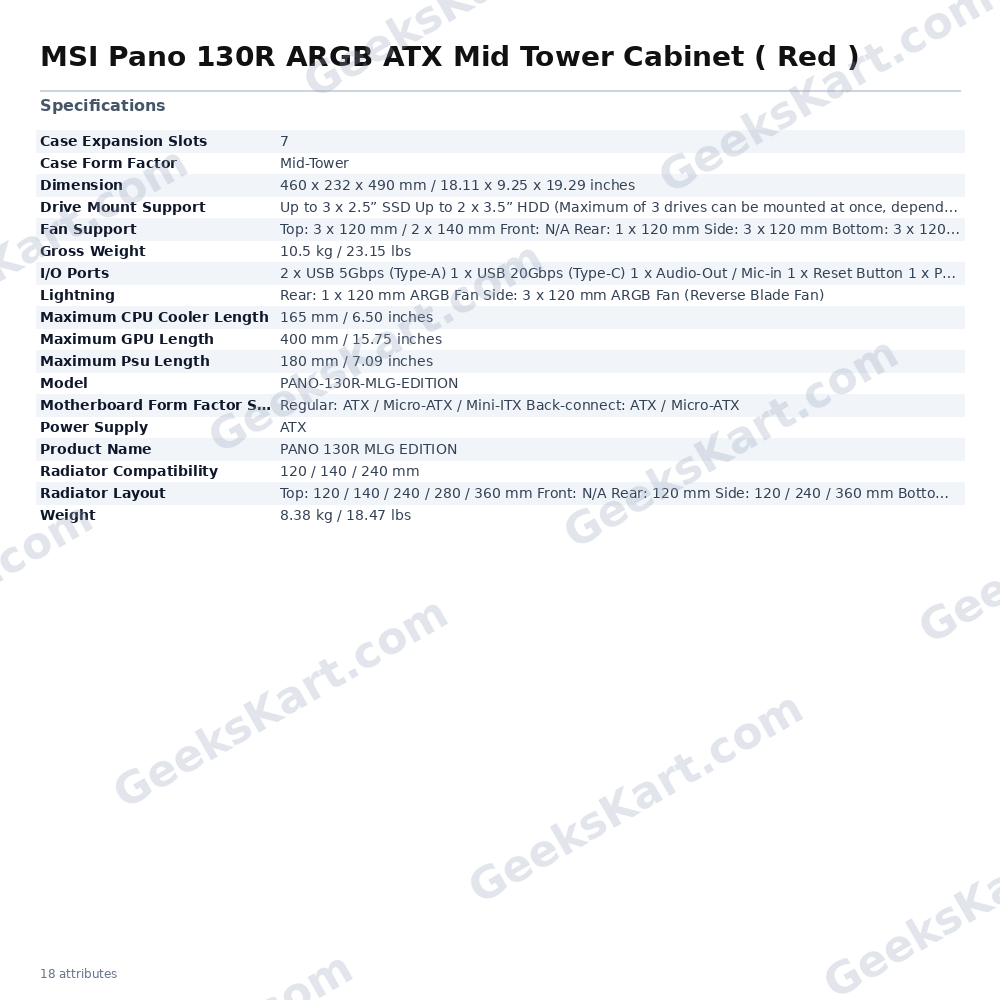

Specifications of MSI Pano 130R MLG Edition ARGB ATX Mid Tower Cabinet ( Red )
| Model | PANO-130R-MLG-EDITION |
| Radiator Compatibility | 120 / 140 / 240 mm |
| Case Form Factor | Mid-Tower |
| Motherboard Form Factor Support | Regular: ATX / Micro-ATX / Mini-ITX Back-connect: |
| Product Name | PANO 130R MLG EDITION |
| Drive Mount Support | Up to 3 x 2.5” SSD Up to 2 x 3.5” HDD (Maximum of 3 drives can be mounted at once, depending on configuration) |
| Dimension | 460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches |
| Weight | 8.38 kg / 18.47 lbs |
| I/O Ports | 2 x USB 5Gbps (Type-A) 1 x USB 20Gbps (Type-C) 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button |
| Case Expansion Slots | 7 |
| Fan Support | Top: 3 x 120 mm / 2 x 140 mm Front: N/A Rear: 1 x 120 mm Side: 3 x 120 mm Bottom: 3 x 120 mm (Above the power shroud) |
| Maximum PSU Length | 180 mm / 7.09 inches |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Length | 165 mm / 6.50 inches |
| Radiator Layout | Top: 120 / 140 / 240 / 280 / 360 mm Front: N/A Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 1 x 360 mm (Above the power shroud) |
| Lightning | Rear: 1 x 120 mm ARGB Fan Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan) |
| Power Supply | ATX |
| Gross Weight | 10.5 kg / 23.15 lbs |
