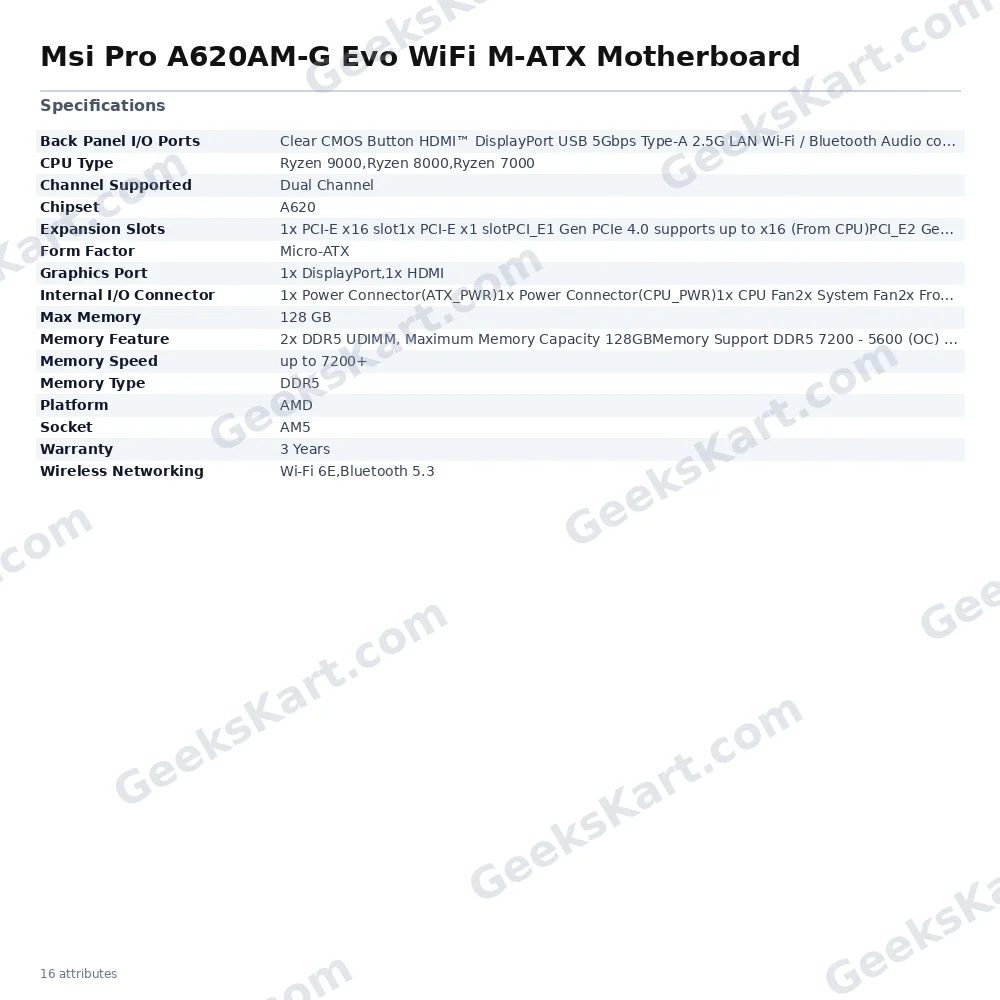

Msi Pro A620AM-G Evo WiFi M-ATX Motherboard

The MSI PRO A620AM-G EVO WiFi is a Micro-ATX motherboard built on the AMD A620 chipset with an AM5 socket, designed for AMD Ryzen 9000, 8000, and 7000 series desktop processors. It brings a balanced mix of modern connectivity, memory performance, and compact form factor to mid-range and budget-conscious AMD builds. At the heart of its memory subsystem are two DDR5 UDIMM slots supporting dual-channel operation with a maximum capacity of 128 GB. The board supports DDR5 JEDEC speeds from 4800 to 5600 MT/s and overclocked profiles between 5600 and 7200+ MT/s via AMD EXPO and standard XMP-style OC profiles. In a single-rank, single-DIMM configuration (1DPC 1R), speeds can reach beyond 7200 MT/s, while a dual-rank, single-DIMM arrangement (1DPC 2R) tops out at 6400+ MT/s. Non-ECC, unbuffered memory is supported, as is CUDIMM in clock driver bypass mode. Expansion is covered by one PCIe 4.0 x16 slot sourced directly from the CPU, suitable for a discrete GPU, and one PCIe 3.0 x1 slot from the chipset. An M.2 slot operating at PCIe Gen 4 x4 (Lightning Gen 4 x4) provides fast NVMe SSD connectivity. Networking capabilities are a standout feature: the board integrates a 2.5 Gigabit LAN controller alongside an Intel Wi-Fi 6E module (802.11ax, 6 GHz band support) and Bluetooth 5.3, catering to both wired and wireless high-throughput scenarios. The rear I/O panel includes HDMI and DisplayPort outputs for CPU-integrated graphics, USB 5 Gbps Type-A ports, USB 2.0 ports, 2.5G LAN, Wi-Fi antenna connectors, audio jacks, a Flash BIOS button, and a Clear CMOS button for convenient firmware recovery. Internal headers encompass ATX 24-pin and CPU power connectors, one CPU fan header, two system fan headers, three Addressable V2 (JARGB_V2) RGB headers, one standard RGB (JRGB) header, a TPM 2.0 pin header, four USB 2.0 ports, two USB 5 Gbps Type-A ports, and one USB 5 Gbps Type-C port. MSI's Steel Armor reinforcement on the PCIe x16 slot adds structural rigidity to safeguard heavy graphics cards. Key Verified Specifications: - Socket: AM5 - Chipset: AMD A620 - Form Factor: Micro-ATX - CPU Support: AMD Ryzen 9000 / 8000 / 7000 series - Memory: 2x DDR5 UDIMM, max 128 GB, dual-channel - Memory Speed: JEDEC 4800–5600 MT/s; OC 5600–7200+ MT/s; AMD EXPO supported - Storage: 1x PCIe Gen 4 x4 M.2 slot - Expansion: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (chipset) - LAN: 2.5 Gigabit Ethernet - Wireless: Wi-Fi 6E, Bluetooth 5.3 - Display Output: 1x HDMI, 1x DisplayPort - Warranty: 3 Years
