The MSI Pro B660M-E DDR4 is a Micro-ATX motherboard built on the Intel B660 chipset, designed for the LGA1700 socket. It supports 12th Generation Intel Core, Pentium Gold, and Celeron processors, making it a practical platform for productivity-focused desktop builds. Memory support covers two DDR4 slots with a combined maximum capacity of 64 GB. Standard JEDEC speeds of 2133, 2666, 2933, and 3200 MHz are supported out of the box, while Intel XMP profiles unlock overclocked frequencies reaching up to 4600+ MHz in a 1DPC 1R configuration and up to 4000+ MHz in a 1DPC 2R setup. Dual-channel operation is supported, and memory must be non-ECC unbuffered. For expansion, the board provides one PCIe x16 slot sourced directly from the CPU, capable of running at PCIe 4.0 x16 speeds, delivering up to 64 GB/s of bandwidth. A second PCIe x1 slot from the B660 chipset operates at PCIe 3.0 x1. Storage is handled by four SATA 6 Gb/s ports and one M.2 Key-M slot supporting PCIe 3.0 x4 or SATA 6 Gb/s drives in 2242, 2260, and 2280 form factors. RAID 0, 1, 5, and 10 configurations are supported for SATA devices. Networking is provided by an Intel I219V Gigabit LAN controller, managed through MSI’s LAN Manager software for application-level traffic prioritisation. Audio is handled by a Realtek ALC892/ALC897 codec delivering 7.1-channel high-definition audio. USB connectivity includes four USB 3.2 Gen 1 5 Gbps ports (two rear panel, two internal) and six USB 2.0 ports (four rear panel, two internal). The rear panel also provides one HDMI 2.1 port supporting up to 4K 60 Hz output and one VGA port for legacy displays. Fan control covers one 4-pin CPU fan connector and one 4-pin system fan connector, both manageable via BIOS or MSI’s software using the FROZR AI Cooling feature. Debug assistance is provided by four onboard EZ Debug LEDs. Power delivery uses a standard 24-pin ATX main connector and an 8-pin ATX 12V connector. Verified Specifications: – Form Factor: Micro-ATX (244 mm × 211 mm) – Socket: LGA1700 – Chipset: Intel B660 – Memory: 2× DDR4, max 64 GB, up to 4600+ MHz (OC) – PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (chipset) – Storage: 4× SATA 6 Gb/s, 1× M.2 (PCIe 3.0 x4 / SATA) – LAN: Intel I219V 1 Gbps – Audio: Realtek ALC892/ALC897, 7.1-ch HD – USB: 4× USB 3.2 Gen 1, 6× USB 2.0 – Display Out: HDMI 2.1 (4K 60 Hz), VGA – Warranty: 3 Years
Msi Pro X670-p Wifi Amd Am5 Motherboard
₹28,920.00
ASUS ROG Strix X870E-E GAMING WiFi Motherboard
₹59,445.00

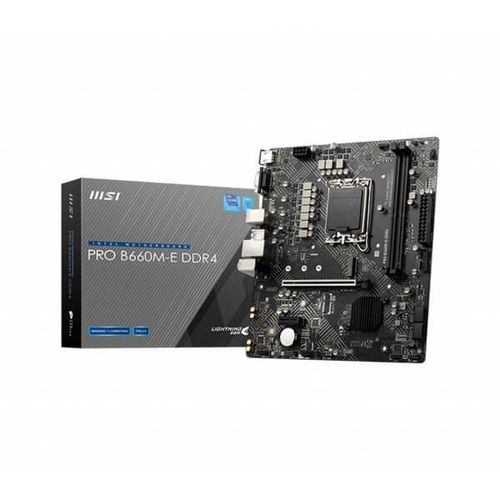

MSI Pro B660M-E DDR4 Intel Motherboard
₹9,385.00
The MSI Pro B660M-E DDR4 is a Micro-ATX motherboard for LGA1700 12th Gen Intel processors, featuring PCIe 4.0, dual-channel DDR4 up to 64 GB, Intel I219V LAN, and HDMI 2.1 output
Out of stock

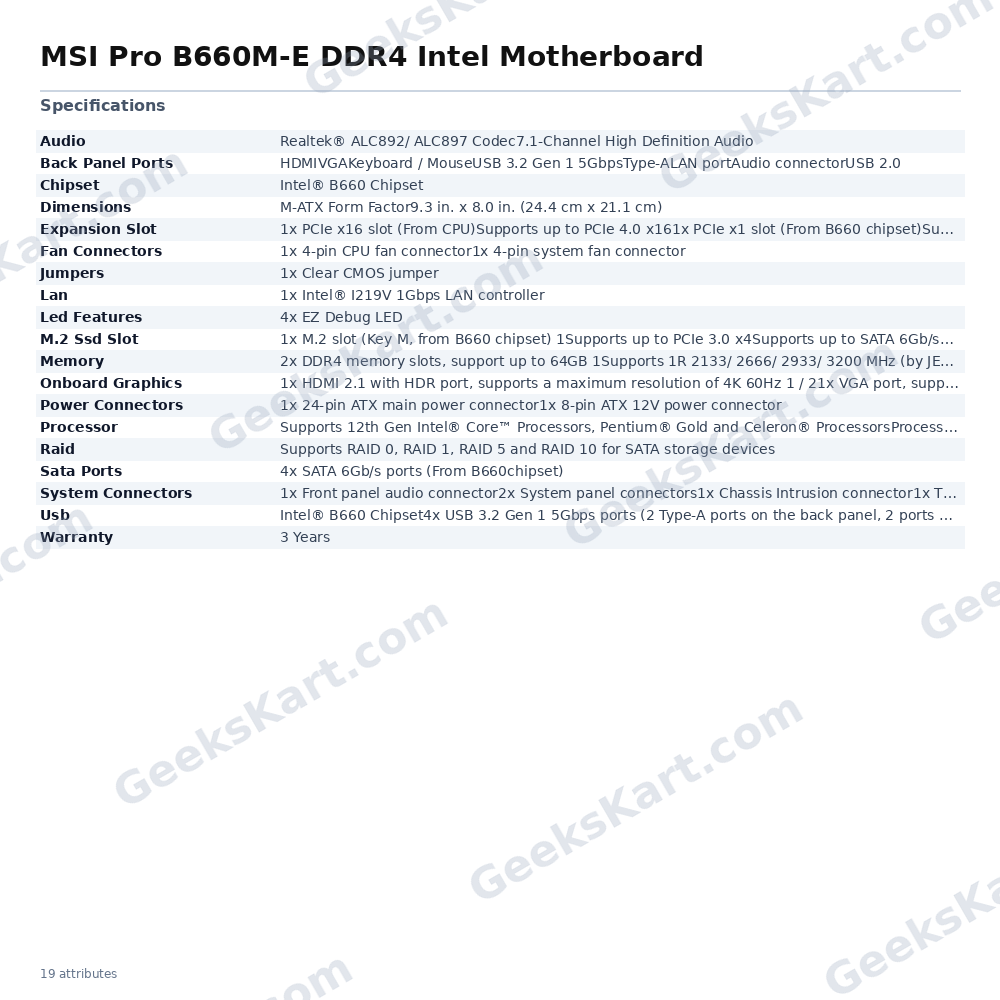

Additional information
| Lan | 1x Intel® I219V 1Gbps LAN controller |
|---|---|
| Usb | Intel® B660 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC892/ ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 2x DDR4 memory slots, support up to 64GB 1Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 4600+ MHz1DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Jumpers | 1x Clear CMOS jumper |
| Processor | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsProcessor socket LGA1700 |
| Dimensions | M-ATX Form Factor9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
| Sata Ports | 4x SATA 6Gb/s ports (From B660chipset) |
| Led Features | 4x EZ Debug LED |
| M.2 Ssd Slot | 1x M.2 slot (Key M, from B660 chipset) 1Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupport Intel® Optane™ MemorySupports Intel® Smart Response Technology for Intel Core™ processors |
| Expansion Slot | 1x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x161x PCIe x1 slot (From B660 chipset)Supports PCIe 3.0 x1 |
| Fan Connectors | 1x 4-pin CPU fan connector1x 4-pin system fan connector |
| Back Panel Ports | HDMIVGAKeyboard / MouseUSB 3.2 Gen 1 5GbpsType-ALAN portAudio connectorUSB 2.0 |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 21x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| Power Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector |
| System Connectors | 1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector |
| Warranty | 3 Years |
| Chipset | Intel® B660 Chipset |
