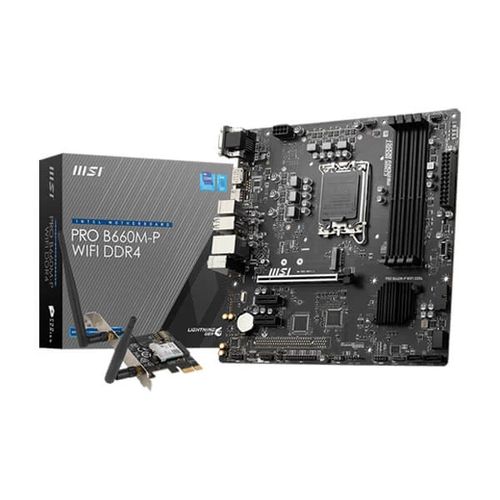

MSI Pro B660M-P Wifi DDR4 Intel Motherboard
MPN MSI-PRO-B660M-P-WIFI · Brand MSI · mATX
The MSI Pro B660M-P WiFi DDR4 is a Micro-ATX motherboard for 12th Gen Intel LGA1700 processors, featuring Intel B660 chipset, PCIe 4.0 M.2, dual-band Wi-Fi, and support for up to 128 GB DDR4 memory
Inclusive of GST · GST invoice available
Overview
The MSI Pro B660M-P WiFi DDR4 is a Micro-ATX motherboard built on the Intel B660 chipset, designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. Measuring 9.6 x 9.6 inches (24.4 x 24.4 cm), it fits standard M-ATX chassis and offers a well-rounded feature set for productivity-focused desktop builds. Memory support is handled by four DDR4 DIMM slots accommodating up to 128 GB of non-ECC unbuffered RAM. JEDEC standard speeds of 2133, 2666, and 3200 MHz are supported natively, while XMP profiles can push single-rank, single-channel configurations beyond 4600 MHz under overclocking. Dual-channel operation is fully supported across all four slots. Storage connectivity includes one M.2 Key-M slot routed from the B660 chipset, supporting PCIe 4.0 x4 and form factors 2242, 2260, and 2280. Four SATA 6 Gb/s ports provide additional drive capacity, and the board supports RAID 0, 1, 5, and 10 across those SATA devices. The single PCIe x16 slot (CPU-direct) operates at PCIe 4.0 x16, while two additional PCIe x1 slots from the chipset run at PCIe 3.0. Onboard display outputs include HDMI 1.4 (up to 4K at 30 Hz), DisplayPort 1.4 (up to 4K at 60 Hz), and a legacy VGA port. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD Audio. Wired networking uses a Realtek RTL8111H 1 Gbps controller, and wireless connectivity is provided by an Intel Dual Band Wireless-AC 3168 module offering 802.11ac on 2.4 GHz and 5 GHz bands at up to 433 Mbps, alongside Bluetooth 4.2. The rear I/O panel includes USB 3.2 Gen 2 10 Gbps Type-C, USB 3.2 Gen 1 5 Gbps Type-A, USB 2.0, PS/2 keyboard and mouse, VGA, DisplayPort, HDMI, LAN, and audio jacks. Internal headers add front-panel USB 3.2 Gen 1 Type-C and Type-A connectors as well as USB 2.0 headers. System management features include 4x EZ Debug LEDs for rapid troubleshooting, a TPM module header, chassis intrusion connector, Clear CMOS jumper, and a UEFI AMI BIOS with ACPI 6.4 and SMBIOS 3.4 compliance. Verified Specifications: - Form Factor: Micro-ATX, 9.6 x 9.6 in (24.4 x 24.4 cm) - Socket / Chipset: LGA1700 / Intel B660 - CPU Support: 12th Gen Intel Core, Pentium Gold, Celeron - Memory: 4x DDR4, up to 128 GB; XMP; Dual-Channel; up to 4600+ MHz (OC) - Storage: 1x M.2 PCIe 4.0 x4 (2242/2260/2280); 4x SATA 6 Gb/s; RAID 0/1/5/10 - Expansion: 1x PCIe 4.0 x16 (CPU); 2x PCIe 3.0 x1 (chipset) - Display Out: HDMI 1.4 (4K@30Hz), DisplayPort 1.4 (4K@60Hz), VGA - Audio: Realtek ALC897, 7.1-channel HD - LAN: Realtek RTL8111H 1 Gbps - Wi-Fi: Intel Wireless-AC 3168, 802.11ac dual-band, 433 Mbps max - Bluetooth: 4.2 (BR/EDR, BLE) - USB Rear: 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1 Type-A, 2x USB 2.0 - BIOS: UEFI AMI, 256 Mb flash, ACPI 6.4, SMBIOS 3.4 - Warranty: 3 Years

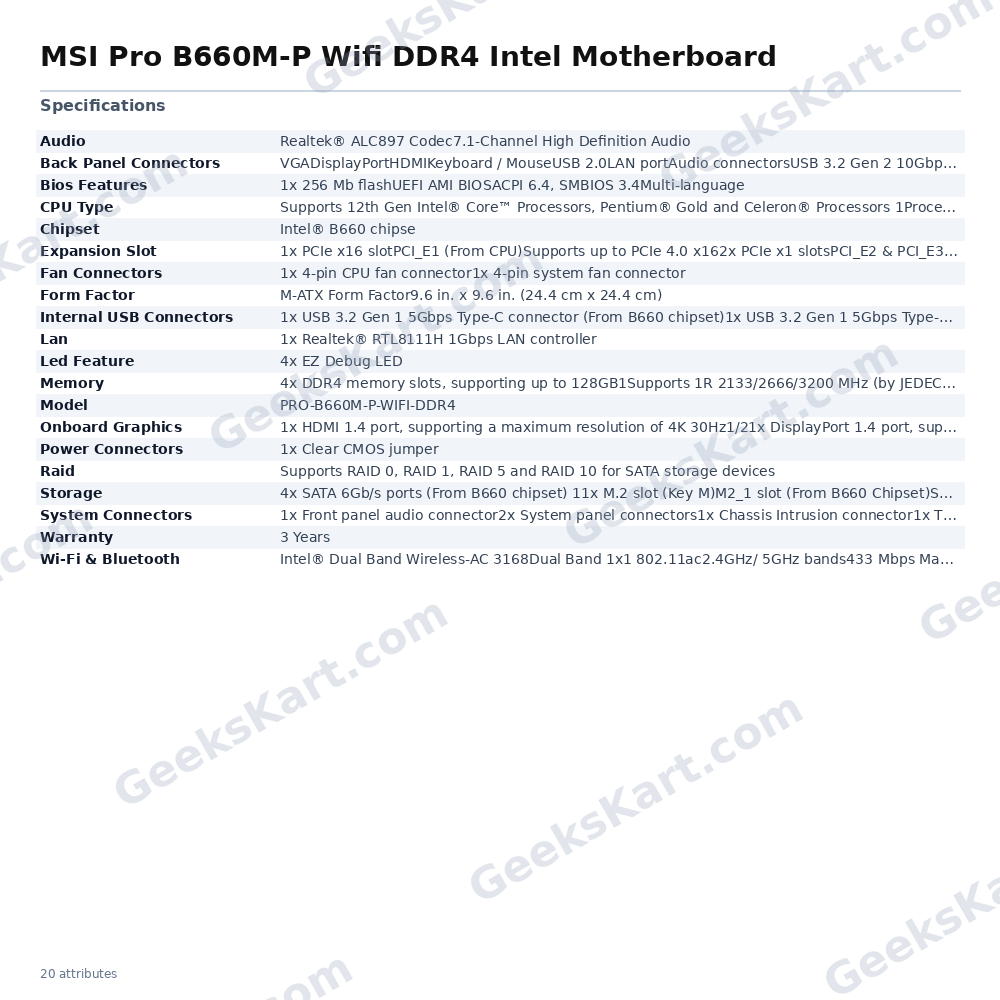

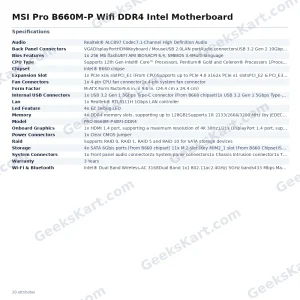

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B660 chipse |
| CPU Type | Supports 12th Gen Intel® CoreTM Processors, Pentium® Gold and Celeron® Processors 1Processor socket LGA1700 |
| Lan | 1x Realtek® RTL8111H 1Gbps LAN controller |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Model | PRO-B660M-P-WIFI-DDR4 |
| Memory | 4x DDR4 memory slots, supporting up to 128GB1Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 4600+ MHz1DPC 2R Max speed up to 4000+ MHz2DPC 1R Max speed up to 4000+ MHz2DPC 2R Max speed up to 3600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | 4x SATA 6Gb/s ports (From B660 chipset) 11x M.2 slot (Key M)M2_1 slot (From B660 Chipset)Supports up to PCIe 4.0 x4Supports 2242/ 2260/ 2280 storage devices |
| Led Feature | 4x EZ Debug LED |
| Bios Features | 1x 256 Mb flashUEFI AMI BIOSACPI 6.4, SMBIOS 3.4Multi-language |
| Expansion Slot | 1x PCIe x16 slotPCI_E1 (From CPU)Supports up to PCIe 4.0 x162x PCIe x1 slotsPCI_E2 & PCI_E3 (Fom B660 chipset)Supports up to PCIe 3.0 |
| Fan Connectors | 1x 4-pin CPU fan connector1x 4-pin system fan connector |
| Onboard Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz1/21x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz1/21x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| Power Connectors | 1x Clear CMOS jumper |
| System Connectors | 1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x parallel port connector1x Serial port |
| Wi-Fi & Bluetooth | Intel® Dual Band Wireless-AC 3168Dual Band 1×1 802.11ac2.4GHz/ 5GHz bands433 Mbps Max SpeedBluetooth 4.2 (BR/EDR, BLE)Supports Windows 7/ 8.1/ 10 |
| Back Panel Connectors | VGADisplayPortHDMIKeyboard / MouseUSB 2.0LAN portAudio connectorsUSB 3.2 Gen 2 10Gbps Type-CUSB 3.2 Gen 1 5Gbps Type-A |
| Internal USB Connectors | 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)Supports additional 2 USB 3.2 Gen 1 5Gbps ports1x USB 2.0 Type-A connector (From B660 chipset)Supports additional 2 USB 2.0 ports |
