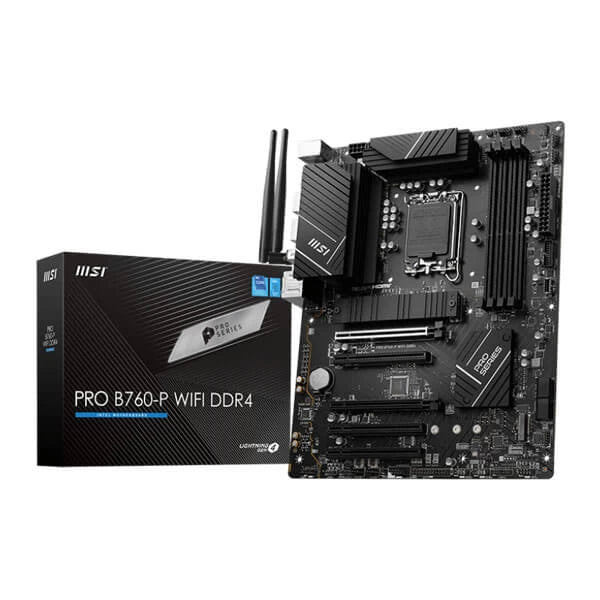

MSI Pro B760-P Wifi DDR4 Intel Motherboard

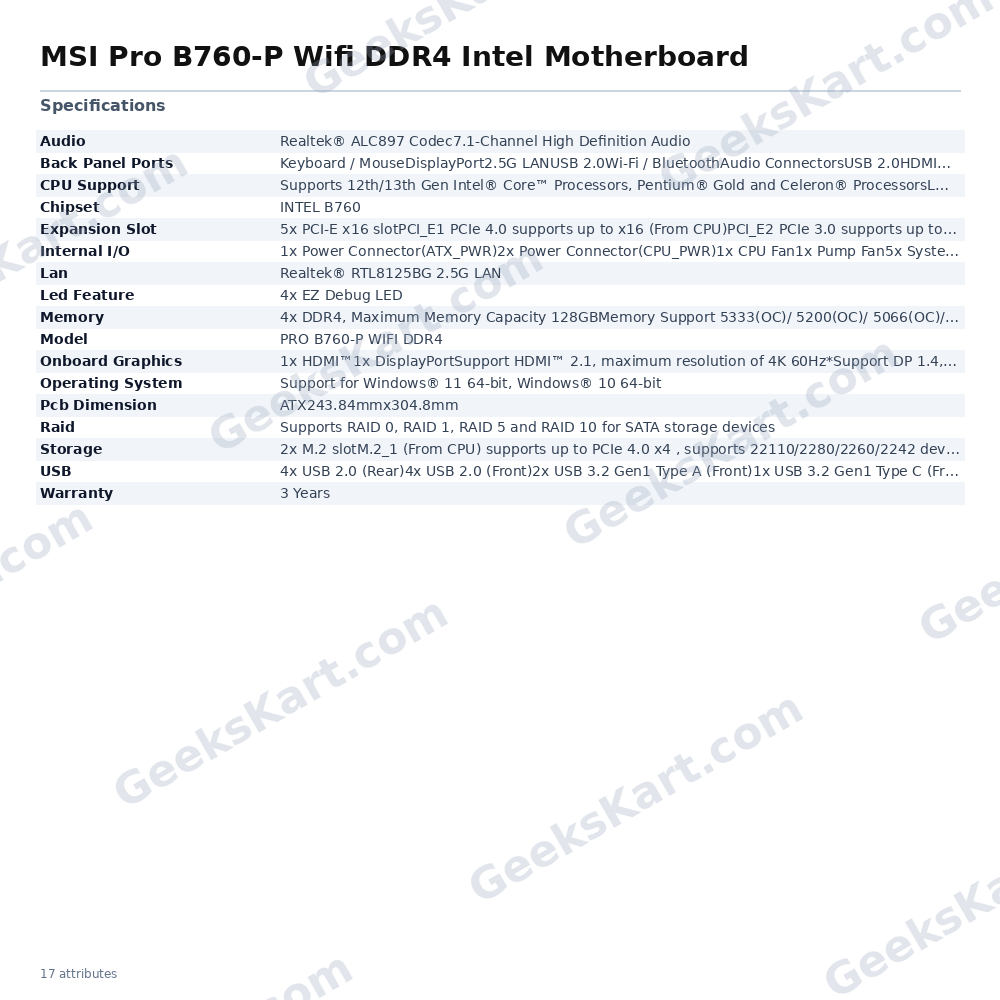

The MSI PRO B760-P WiFi DDR4 is a full-size ATX motherboard built on the Intel B760 chipset, designed for productivity-focused desktop builds using 12th or 13th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its ATX form factor measures 243.84 mm x 304.8 mm and fits standard mid-tower and full-tower cases. Power delivery is handled by a 12+1 Duet Rail Power System using P-PAK MOSFETs, fed by dual CPU power connectors (8-pin + 4-pin). The board supports four DDR4 DIMM slots in dual-channel configuration, accommodating up to 128 GB of system memory. Memory speeds range from JEDEC-standard 2133 MHz up to an overclocked ceiling of 5333+ MHz under optimal 1DPC 1R conditions, with Intel XMP profile support managed through MSI BIOS. Storage options include two M.2 slots — M.2_1 (CPU-direct, PCIe 4.0 x4, up to 22110 length) and M.2_2 (chipset, PCIe 4.0 x4 or SATA, up to 2280 length) — plus four SATA 6 Gbps ports. Note that SATA8 is disabled when an M.2 SATA SSD occupies the M2_2 slot. RAID 0, 1, 5, and 10 are supported for SATA devices. The primary PCIe x16 slot (PCI_E1) runs at PCIe 4.0 from the CPU and is reinforced with MSI Steel Armor for added structural support. Connectivity is a highlight: onboard Intel Wi-Fi 6E with Bluetooth 5.3 and a Realtek RTL8125BG 2.5 Gbps wired LAN controller deliver comprehensive wired and wireless networking. The rear I/O includes two USB 3.2 Gen 2 Type-A ports and one USB 3.2 Gen 2 Type-C port (all at 10 Gbps), plus four USB 2.0 ports, HDMI 2.1, DisplayPort 1.4 (both supporting up to 4K 60 Hz with compatible integrated graphics), and S/PDIF optical audio output. Audio is powered by a Realtek ALC897 codec providing 7.1-channel High Definition Audio with MSI Audio Boost. Thermal management includes extended VRM heatsinks with 7 W/mK MOSFET thermal pads, M.2 Shield Frozr on the primary M.2 slot, and a 6-layer PCB with 2 oz. copper for improved heat dissipation. Four EZ Debug LEDs aid troubleshooting. The board includes TPM 2.0 header support, two ARGB V2 headers, one RGB header, and a Thunderbolt header (JTBT, RTD3). Operating system support covers Windows 11 and Windows 10 (64-bit). MSI provides a 3-year warranty. Verified Specifications: - Chipset: Intel B760 - Socket: LGA 1700 - Form Factor: ATX (243.84 mm x 304.8 mm) - CPU Support: 12th/13th Gen Intel Core, Pentium Gold, Celeron - Memory: 4x DDR4 DIMM, max 128 GB, up to 5333+ MHz OC (1DPC 1R) - Storage: 2x M.2 (PCIe 4.0 x4), 4x SATA 6 Gbps; RAID 0/1/5/10 - Expansion: PCIe 4.0 x16 (CPU), PCIe 4.0 x16 (Chipset), 3x PCIe 3.0 x1 - Display: 1x HDMI 2.1, 1x DisplayPort 1.4 (4K 60 Hz, iGPU required) - LAN: Realtek RTL8125BG 2.5 Gbps - Wireless: Intel Wi-Fi 6E + Bluetooth 5.3 - Audio: Realtek ALC897, 7.1-CH HD Audio - USB (Rear): 4x USB 2.0, 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C - Warranty: 3 Years
