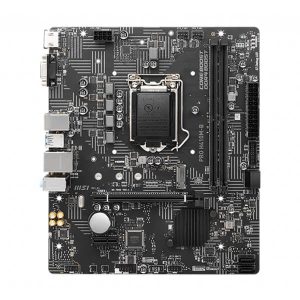

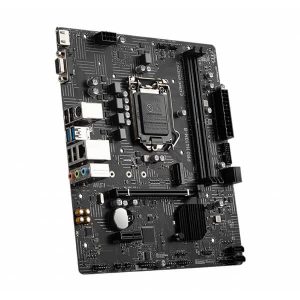

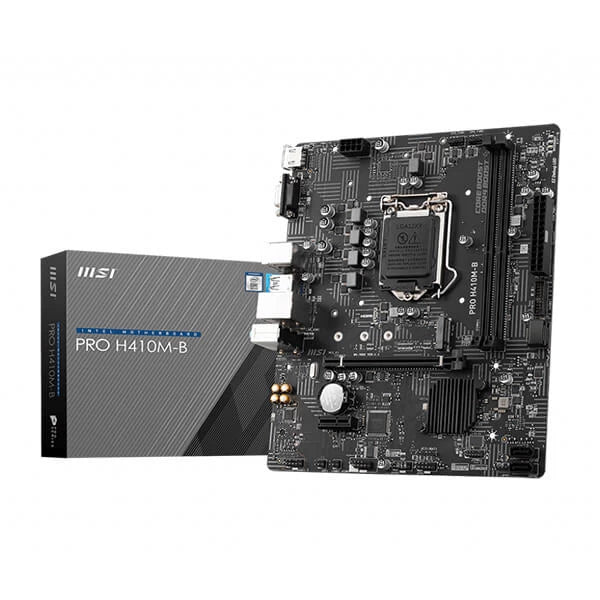

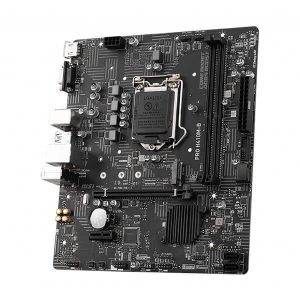

MSI Pro H410M-B DDR4 Intel Motherboard

The MSI Pro H410M-B DDR4 is a Micro-ATX motherboard built on the Intel H510 chipset, designed to accommodate 10th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA1200 socket. It is a compact and capable platform well suited to office builds, home workstations, and budget-conscious system integrators who need reliable daily performance without unnecessary complexity. Memory support spans two DDR4 DIMM slots with a combined capacity of up to 64 GB, running at speeds of 2133, 2666, or 2933 MHz in accordance with JEDEC and Intel POR specifications. Dual-channel operation is supported, and the board is compatible with Intel Extreme Memory Profile (XMP) for users who wish to run validated memory kits at their rated speeds. Only non-ECC, unbuffered modules are compatible. Storage is handled through four SATA 6 Gb/s ports sourced from the H510 chipset, alongside a single M.2 Key-M slot that accommodates 2242, 2260, and 2280 form-factor drives. The M.2 slot runs at up to PCIe 3.0 x4, making it suitable for NVMe SSDs seeking high sequential throughput. Note that installing an M.2 SATA SSD in the M.2 slot will disable the fourth SATA port. Display output is provided via one VGA port (up to 2048×1536 at 60 Hz) and one HDMI 1.4 port (up to 4K at 30 Hz), both requiring a processor with integrated graphics. Expansion is covered by one PCIe 3.0 x16 slot fed from the CPU and one PCIe 3.0 x1 slot from the chipset. Connectivity includes a Realtek RTL8111 Gigabit LAN controller, 7.1-channel HD audio via a Realtek ALC897 or ALC892 codec, four USB 3.2 Gen 1 (5 Gbps) ports, and six USB 2.0 ports split across the rear panel and internal headers. Fan management allows control of one CPU fan header and one system fan header, with temperature-based automatic speed adjustment configurable through MSI's BIOS interface. A TPM module connector and chassis intrusion header are also present. Verified Specifications: - Form Factor: Micro-ATX, 23.6 cm × 20.2 cm (9.3 in × 7.95 in) - Socket: LGA1200 (10th Gen Intel Core, Pentium Gold, Celeron) - Chipset: Intel H510 - Memory: 2× DDR4, up to 64 GB, 2133/2666/2933 MHz, Dual-Channel, XMP supported - Storage: 4× SATA 6 Gb/s; 1× M.2 (PCIe 3.0 x4 / SATA, 2242/2260/2280) - Display: 1× VGA (max 2048×1536 60Hz), 1× HDMI 1.4 (max 4K 30Hz) - USB: 4× USB 3.2 Gen 1 5Gbps, 6× USB 2.0 - Audio: Realtek ALC897/ALC892, 7.1-ch HD Audio - LAN: Realtek RTL8111 Gigabit - Expansion: 1× PCIe 3.0 x16, 1× PCIe 3.0 x1 - OS Support: Windows 10 64-bit - Warranty: 3 Years
