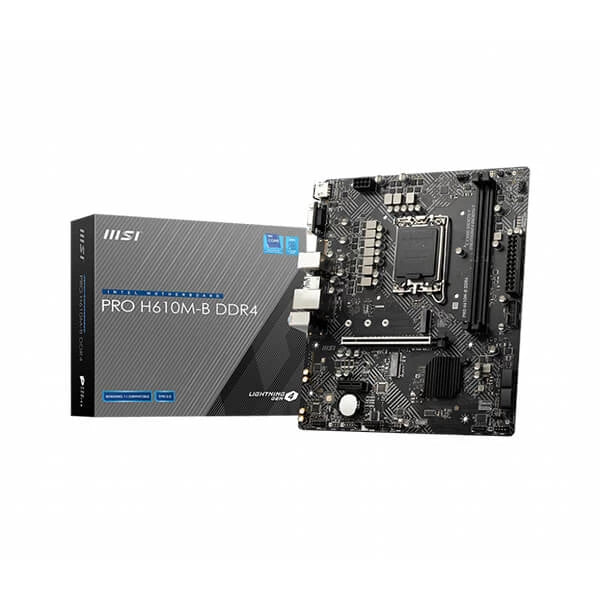

MSI Pro H610M-B EX DDR4 Intel Motherboard
MPN MSI-PRO-H610M-B-DDR4 · Brand MSI
The MSI Pro H610M-B EX DDR4 is a Micro-ATX motherboard for 12th Gen Intel LGA1700 processors, featuring dual-channel DDR4 up to 64 GB, PCIe 4.0 x16, HDMI 2.1, and Intel I219V LAN — a solid foundation for reliable everyday desktop builds
Inclusive of GST · GST invoice available
Overview
The MSI Pro H610M-B EX DDR4 is a Micro-ATX motherboard designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors, using the LGA1700 socket and the Intel H610 chipset. Built with a compact 9.3 x 8.0 inch (24.4 cm x 21.1 cm) footprint, it fits standard M-ATX cases while delivering a capable feature set for office workstations, everyday desktop builds, and entry-level productivity systems. The board supports two DDR4 memory slots, accommodating up to 64 GB of non-ECC, unbuffered RAM in dual-channel configuration. Supported JEDEC speeds include 2133, 2666, 2933, and 3200 MHz, offering flexibility across a range of DDR4 modules. Storage connectivity is covered by four SATA 6 Gb/s ports and one M.2 Key-M slot (from the chipset), which supports PCIe 3.0 x4 and SATA 6 Gb/s in 2242, 2260, and 2280 form factors. Note that SATA port 7 is disabled when an M.2 SATA SSD occupies the M2_1 slot. Display output is handled through onboard graphics ports: one HDMI 2.1 with HDR capable of 4K at 60 Hz, and one VGA port supporting resolutions up to 2048x1536 at 50 Hz. These outputs are available only with processors featuring integrated graphics. The single PCIe x16 slot (from the CPU) supports up to PCIe 4.0 x16, enabling dedicated graphics card installation, while an additional PCIe x1 slot operates at PCIe 3.0. An M.2 E-key slot is also present for a PCIe-based Wi-Fi module. USB connectivity includes 4x USB 3.2 Gen 1 (5 Gbps) ports and 6x USB 2.0 ports, spread across the back panel and internal headers. Networking is provided by an Intel I219V 1 Gbps LAN controller. Audio is handled by a Realtek ALC892/ALC897 codec delivering 7.1-channel High Definition Audio. Four EZ Debug LEDs assist with troubleshooting during POST. Verified Specifications: - Form Factor: Micro-ATX, 24.4 cm x 21.1 cm - Socket: LGA1700 - Chipset: Intel H610 - CPU Support: 12th Gen Intel Core, Pentium Gold, Celeron - Memory: 2x DDR4 slots, up to 64 GB, dual-channel, 2133–3200 MHz (JEDEC) - PCIe: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 - M.2: 1x Key-M (PCIe 3.0 x4 / SATA, chipset); 1x E-key (Wi-Fi module only) - SATA: 4x SATA 6 Gb/s - Video Out: HDMI 2.1 (4K 60Hz), VGA - USB: 4x USB 3.2 Gen 1, 6x USB 2.0 - LAN: Intel I219V 1 Gbps - Audio: Realtek ALC892/ALC897, 7.1-channel HD Audio - Power: 24-pin ATX + 8-pin ATX 12V - Warranty: 3 Years

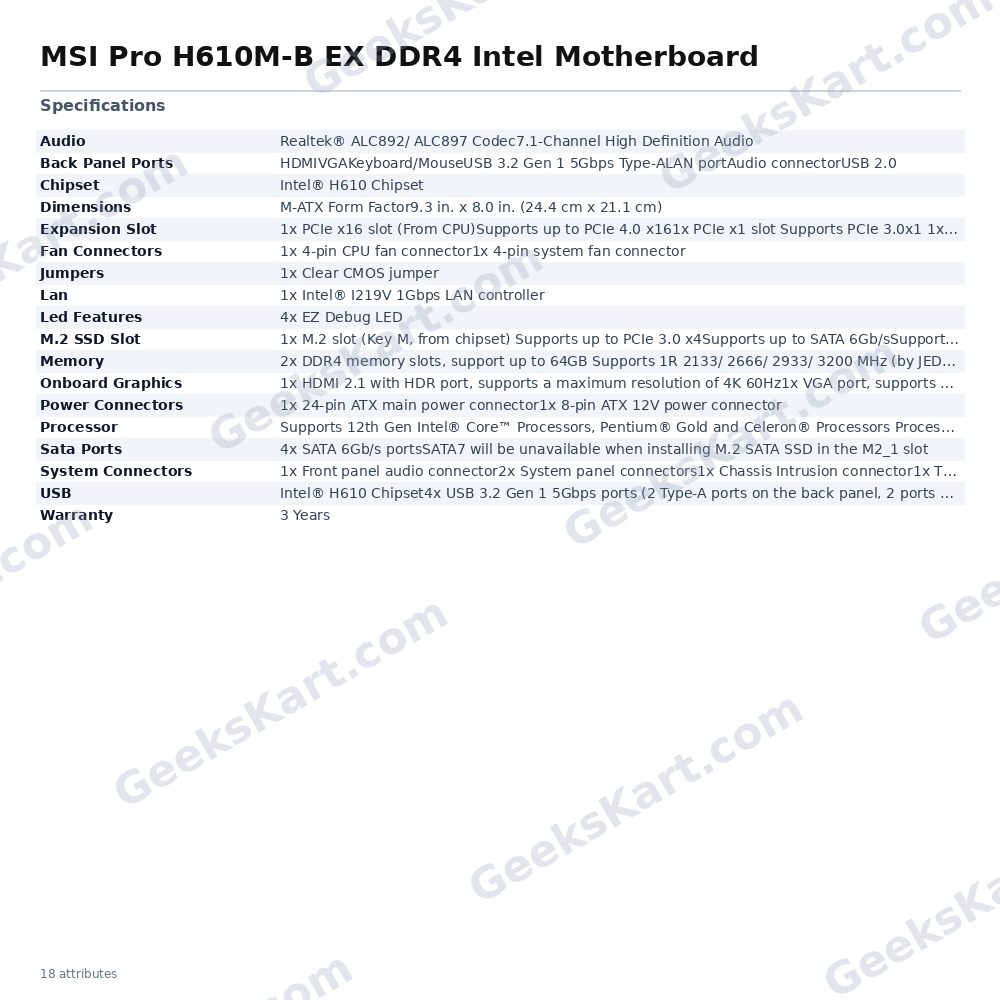

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® H610 Chipset |
| Lan | 1x Intel® I219V 1Gbps LAN controller |
| USB | Intel® H610 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Audio | Realtek® ALC892/ ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)Supports Dual-Channel modeSupports non-ECC, un-buffered memory |
| Jumpers | 1x Clear CMOS jumper |
| Processor | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
| Dimensions | M-ATX Form Factor9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
| Sata Ports | 4x SATA 6Gb/s portsSATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot |
| Led Features | 4x EZ Debug LED |
| M.2 SSD Slot | 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupports Intel® Smart Response Technology for Intel Core™ processorsSATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot |
| Expansion Slot | 1x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x161x PCIe x1 slot Supports PCIe 3.0×1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1) |
| Fan Connectors | 1x 4-pin CPU fan connector1x 4-pin system fan connector |
| Back Panel Ports | HDMIVGAKeyboard/MouseUSB 3.2 Gen 1 5Gbps Type-ALAN portAudio connectorUSB 2.0 |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60HzAvailable only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed |
| Power Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector |
| System Connectors | 1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector |
