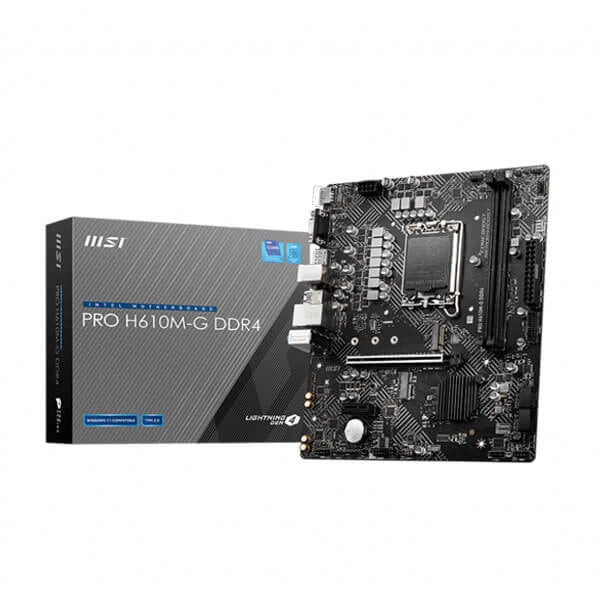

MSI Pro H610M-G DDR4 Intel Motherboard

The MSI Pro H610M-G DDR4 is a Micro-ATX business motherboard built on Intel's H610 chipset and the LGA1700 socket, designed to deliver reliable everyday performance for office workstations, compact desktop builds, and entry-level professional systems. It accommodates Intel 12th Generation Core, Pentium Gold, and Celeron processors, providing a cost-effective foundation for productivity-focused builds. Memory support comes via two DDR4 slots capable of holding up to 64 GB of non-ECC, unbuffered RAM. The board supports JEDEC-standard speeds of 2133, 2666, 2933, and up to 3200 MHz in dual-channel mode, giving builders enough headroom for memory-intensive office applications and multitasking. For expansion, the single PCIe x16 slot runs at PCIe 4.0 speeds from the CPU, delivering up to 64 GB/s of transfer bandwidth — useful when pairing the board with a discrete graphics card. A PCIe 3.0 x1 slot is also present for add-in cards. The reinforced Steel Armor on the x16 slot helps protect against GPU sag and electromagnetic interference. An E-key M.2 slot supports a PCIe Wi-Fi module, making wireless upgrades straightforward. Display output is handled by three onboard ports: an HDMI 2.1 port supporting up to 4K at 60 Hz with HDR, a DisplayPort 1.4 port also supporting up to 4K at 60 Hz, and a legacy VGA port supporting resolutions up to 1920×1200 at 60 Hz. Networking is covered by an Intel I219V Gigabit LAN controller, known for its stability and low CPU overhead. Storage options include four SATA 6 Gb/s ports and one Key-M M.2 slot (from the chipset) supporting PCIe 3.0 x4 or SATA 6 Gb/s devices in 2242, 2260, and 2280 form factors. Note that the SATA7 port is disabled when an M.2 SATA SSD is installed in the M2_1 slot. Audio is handled by a 7.1-channel High Definition Audio solution, and onboard LED features include one 4-pin RGB connector, two 3-pin RAINBOW connectors, and four EZ Debug LEDs for straightforward troubleshooting. The rear I/O provides HDMI, VGA, DisplayPort, two USB 3.2 Gen 1 Type-A ports, four USB 2.0 Type-A ports, a PS/2 keyboard/mouse combo port, Gigabit LAN, and audio jacks. Verified Specifications: - Form Factor: Micro-ATX (mATX) — 9.29 × 7.95 in (23.6 × 20.2 cm) - Socket: LGA1700 - Chipset: Intel H610 - Supported CPUs: Intel 12th Gen Core, Pentium Gold, Celeron (LGA1700) - Memory: 2× DDR4 slots, up to 64 GB, 2133/2666/2933/3200 MHz (JEDEC), Dual-Channel, non-ECC unbuffered - PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 - M.2: 1× Key-M (chipset, PCIe 3.0 x4 / SATA 6 Gb/s, 2242/2260/2280); 1× E-key (PCIe Wi-Fi only) - SATA: 4× SATA 6 Gb/s - Display: HDMI 2.1 (4K 60Hz HDR), DisplayPort 1.4 (4K 60Hz), VGA (1920×1200 60Hz) - USB: 4× USB 3.2 Gen 1 (2 rear + 2 internal), 6× USB 2.0 (4 rear + 2 internal) - LAN: Intel I219V 1 Gbps - Audio: 7.1-CH HD Audio - Fan Headers: 1× 4-pin CPU, 1× 4-pin system - Power: 24-pin ATX + 8-pin ATX 12V - OS Support: Windows 11 64-bit - Warranty: 3 Years
