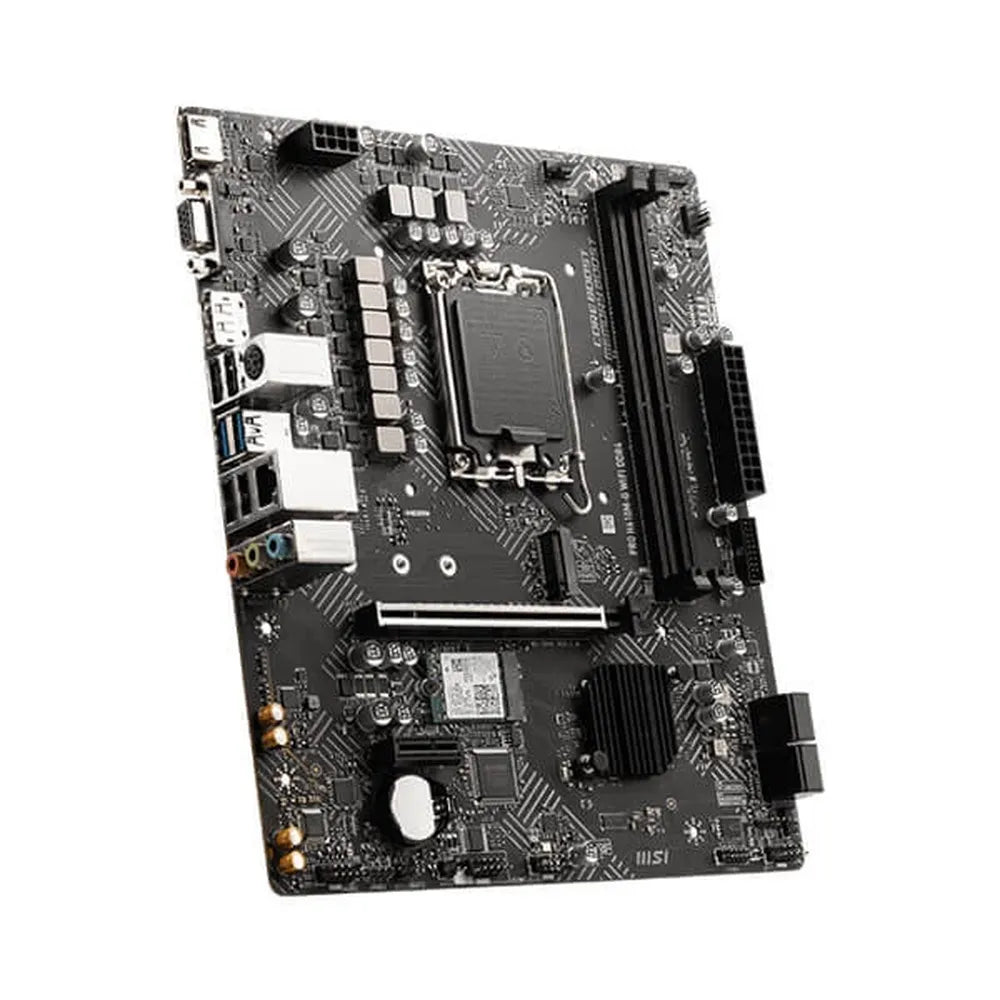

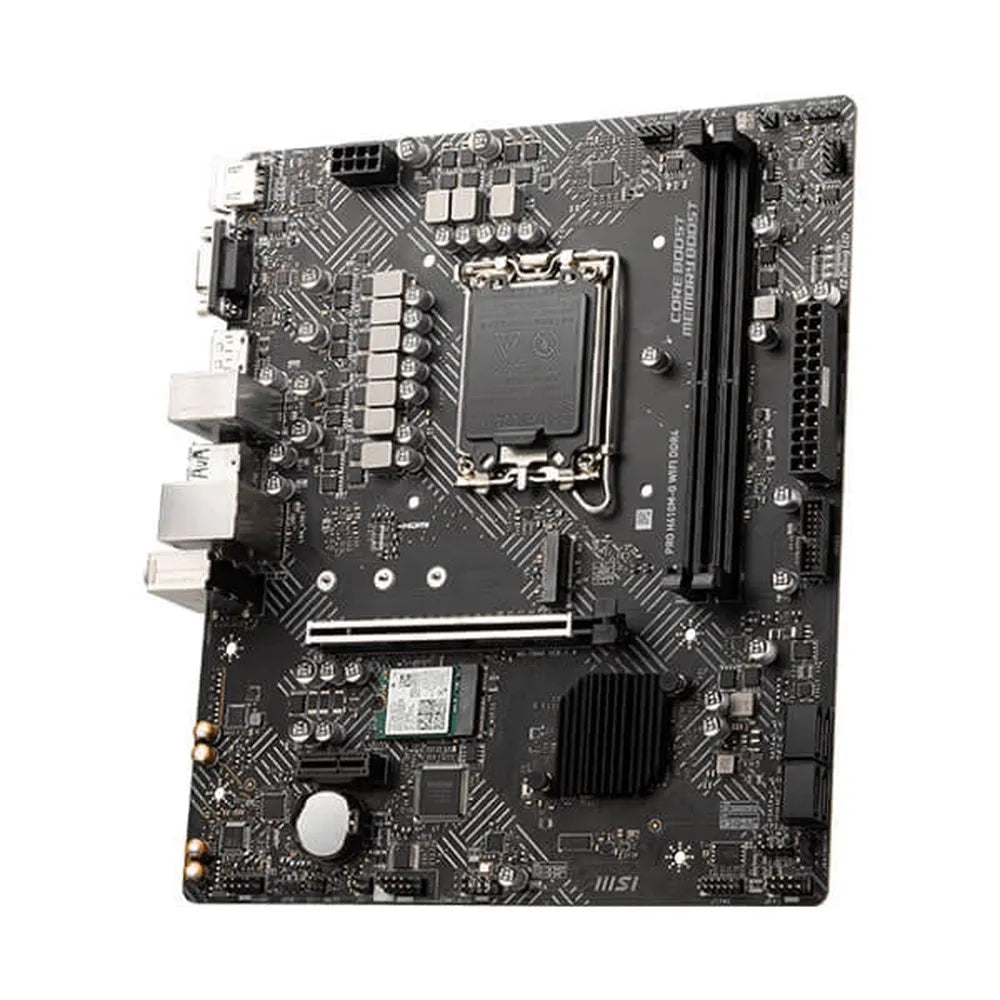

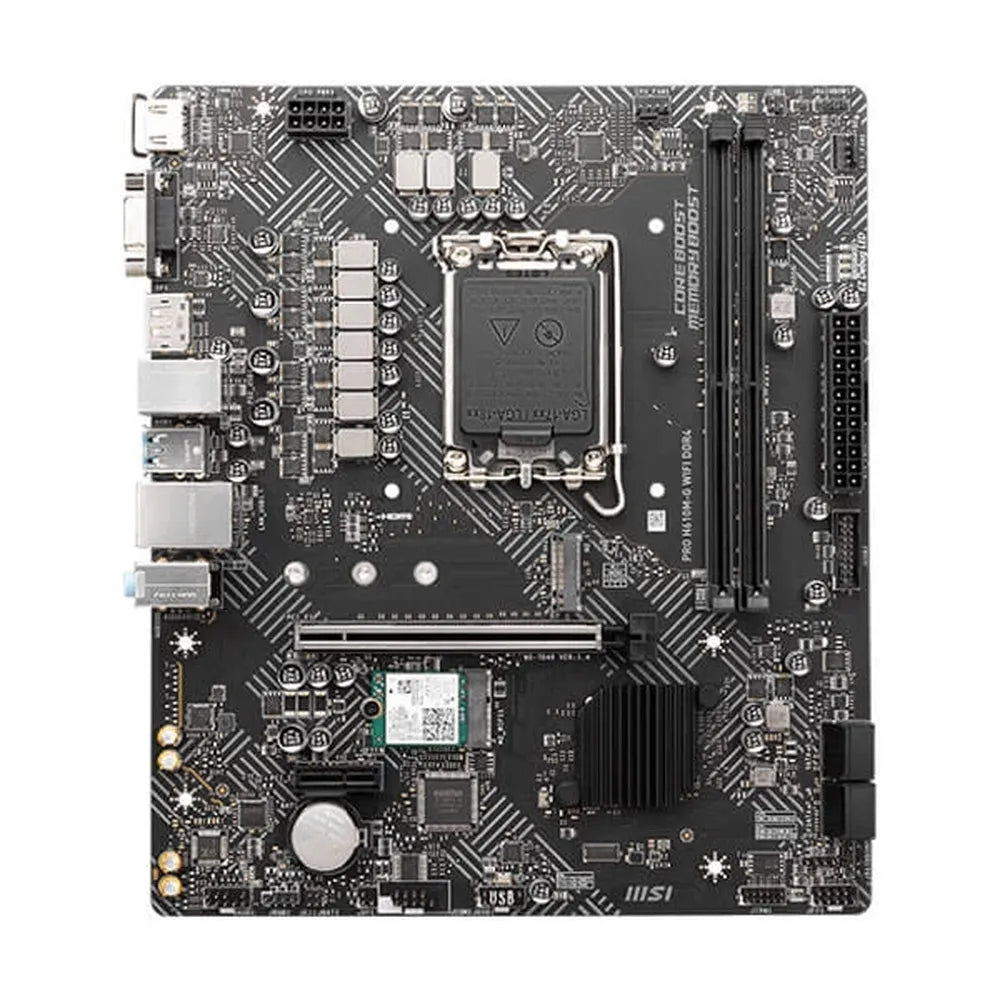

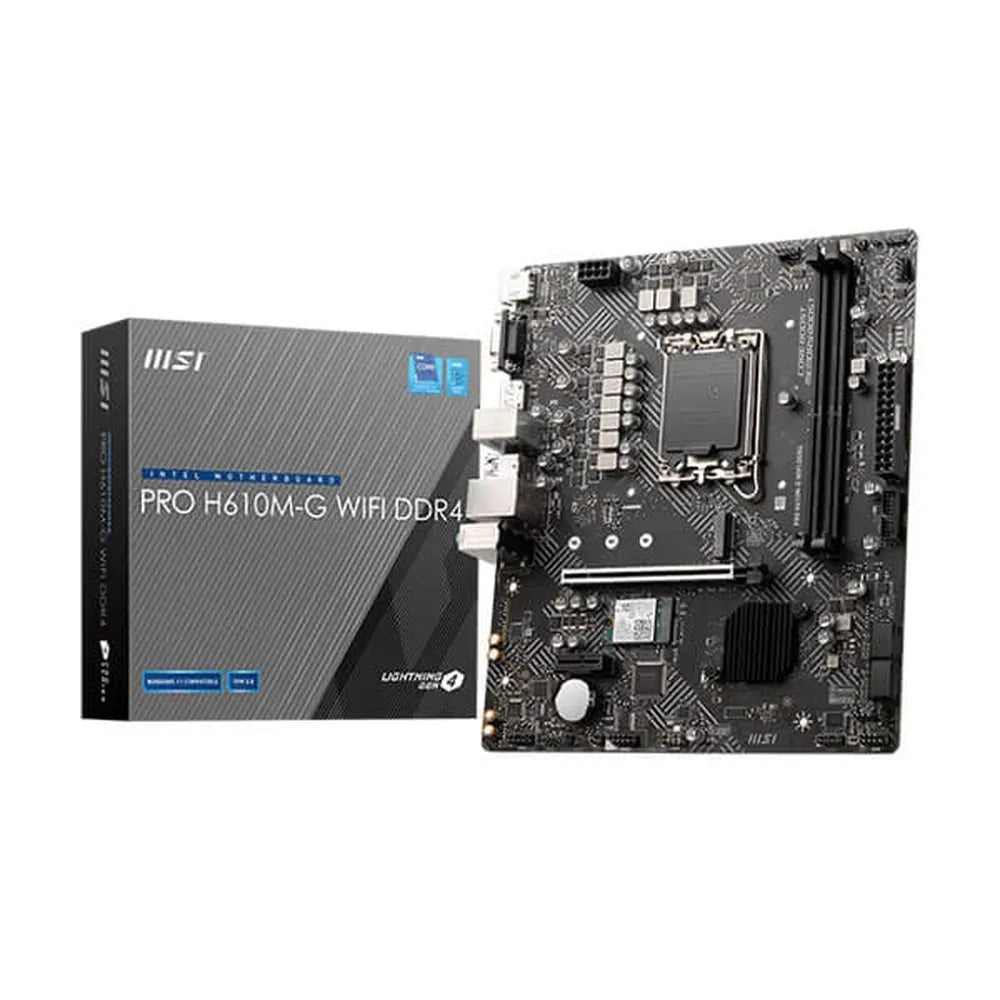

MSI Pro H610M-G Wifi DDR4 Intel Motherboard
MPN MSI-PRO-H610M-G-WIFI-DDR4 · Brand MSI
The MSI Pro H610M-G WiFi DDR4 is a compact mATX motherboard for 12th/13th Gen Intel LGA 1700 processors, featuring PCIe 4.0, dual-channel DDR4 up to 64 GB, Intel Wi-Fi 5, and triple display output (HDMI 2.1, DisplayPort 1.4, VGA)
Inclusive of GST · GST invoice available
Overview
The MSI Pro H610M-G WiFi DDR4 is a Micro-ATX motherboard built around Intel's H610 chipset and the LGA 1700 socket, designed to accommodate 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors. Its compact 9.61 x 8.31-inch (24.4 x 21.1 cm) footprint makes it an efficient choice for small-form-factor office workstations and home builds alike, while still delivering a well-rounded feature set for everyday productivity and light creative work. Memory is handled by two DDR4 DIMM slots supporting up to 64 GB of non-ECC, unbuffered RAM operating at speeds of 2133, 2666, 2933, or up to 3200 MHz via JEDEC and POR profiles, with dual-channel mode available when both slots are populated. For graphics, the board carries a PCIe 4.0 x16 slot sourced directly from the CPU, enabling fast data transfer with compatible discrete cards, alongside a PCIe 3.0 x1 slot for auxiliary expansion cards. Integrated display outputs cater to processors with Intel integrated graphics: an HDMI 2.1 port supporting up to 4K at 60 Hz with HDR, a DisplayPort 1.4 port also rated for 4K at 60 Hz, and a legacy VGA port for older monitors. Storage connectivity includes four SATA 6Gb/s ports and a single M.2 Key-M slot (chipset-connected) supporting PCIe 3.0 x4 or SATA drives in 2242, 2260, and 2280 form factors. Wireless connectivity is provided by an Intel Wi-Fi 5 (802.11 a/b/g/n/ac) module with MU-MIMO support, operating on both 2.4 GHz and 5 GHz bands at up to 433 Mbps, paired with Bluetooth 4.2. Wired networking uses an Intel I219V Gigabit Ethernet controller. USB ports include four USB 3.2 Gen 1 (5 Gbps) ports and six USB 2.0 ports across the rear panel and internal headers. Audio is managed by a Realtek ALC897 codec delivering 7.1-channel high-definition audio. RGB enthusiasts will find one 4-pin RGB and two 3-pin ARGB headers, along with four EZ Debug LEDs for straightforward troubleshooting. The board ships with a 3-year manufacturer warranty and supports Windows 11 64-bit. Verified Specifications: - Socket: LGA 1700 | Chipset: Intel H610 - Form Factor: mATX — 24.4 x 21.1 cm - Memory: 2x DDR4 DIMM, up to 64 GB, up to 3200 MHz, Dual-Channel - PCIe: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 - Display: HDMI 2.1 (4K/60Hz), DisplayPort 1.4 (4K/60Hz), VGA - Storage: 4x SATA 6Gb/s; 1x M.2 (PCIe 3.0 x4 / SATA, Key-M) - Wireless: Intel Wi-Fi 5, 802.11 a/b/g/n/ac, BT 4.2 - LAN: Intel I219V 1 Gbps - USB: 4x USB 3.2 Gen 1 (5Gbps), 6x USB 2.0 - Audio: Realtek ALC897, 7.1-Ch HD - RGB: 1x 4-pin RGB, 2x 3-pin ARGB, 4x EZ Debug LED - OS: Windows 11 64-bit | Warranty: 3 Years

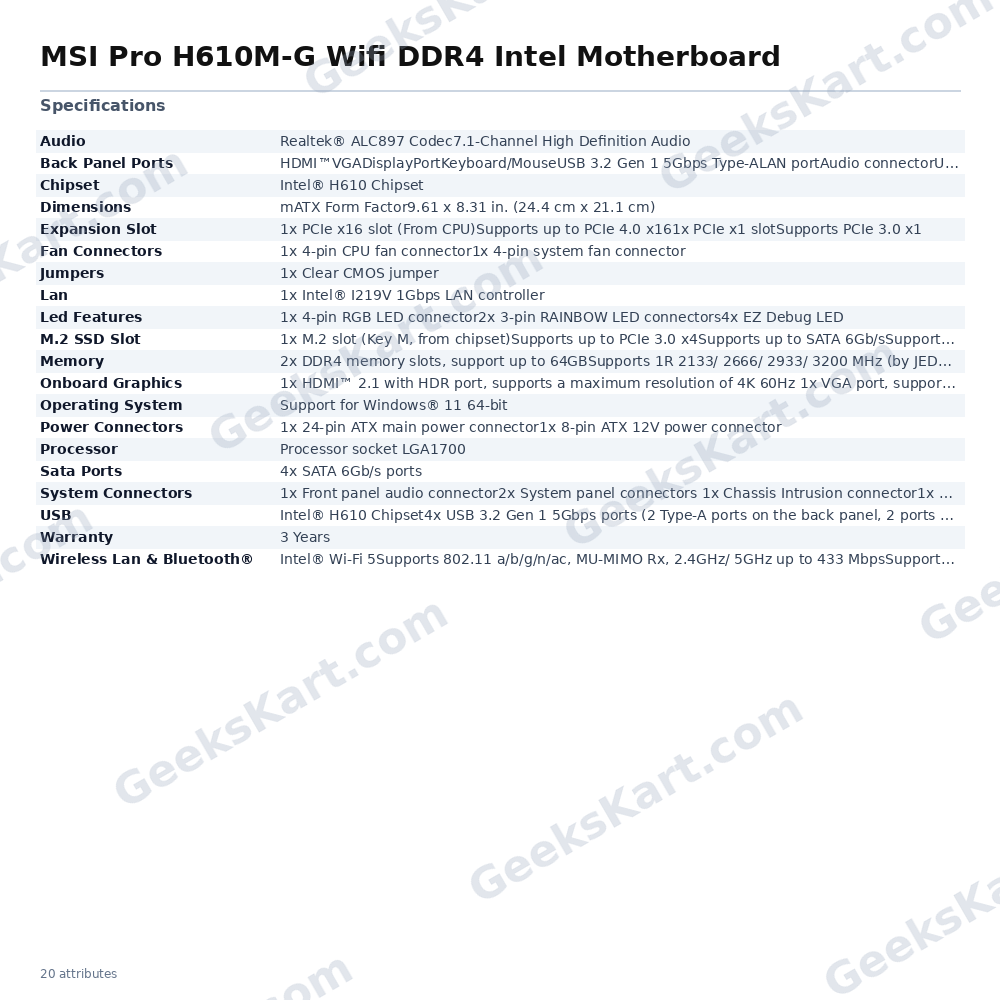

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® H610 Chipset |
| Lan | 1x Intel® I219V 1Gbps LAN controller |
| USB | Intel® H610 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 2x DDR4 memory slots, support up to 64GBSupports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)Supports Dual-Channel modeSupports non-ECC, un-buffered memory |
| Jumpers | 1x Clear CMOS jumper |
| Processor | Processor socket LGA1700 |
| Dimensions | mATX Form Factor9.61 x 8.31 in. (24.4 cm x 21.1 cm) |
| Sata Ports | 4x SATA 6Gb/s ports |
| Led Features | 1x 4-pin RGB LED connector2x 3-pin RAINBOW LED connectors4x EZ Debug LED |
| M.2 SSD Slot | 1x M.2 slot (Key M, from chipset)Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupports Intel® Smart Response Technology for Intel Core™ processors |
| Expansion Slot | 1x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x161x PCIe x1 slotSupports PCIe 3.0 x1 |
| Fan Connectors | 1x 4-pin CPU fan connector1x 4-pin system fan connector |
| Back Panel Ports | HDMI™VGADisplayPortKeyboard/MouseUSB 3.2 Gen 1 5Gbps Type-ALAN portAudio connectorUSB 2.0 |
| Onboard Graphics | 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Operating System | Support for Windows® 11 64-bit |
| Power Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector |
| System Connectors | 1x Front panel audio connector2x System panel connectors 1x Chassis Intrusion connector1x TPM module connector |
| Wireless Lan & Bluetooth® | Intel® Wi-Fi 5Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 MbpsSupports Bluetooth® 4.2 |
