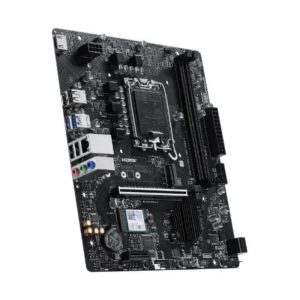

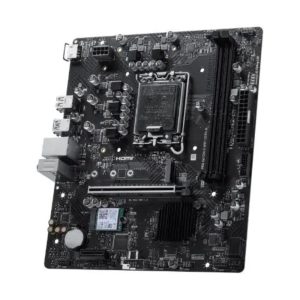

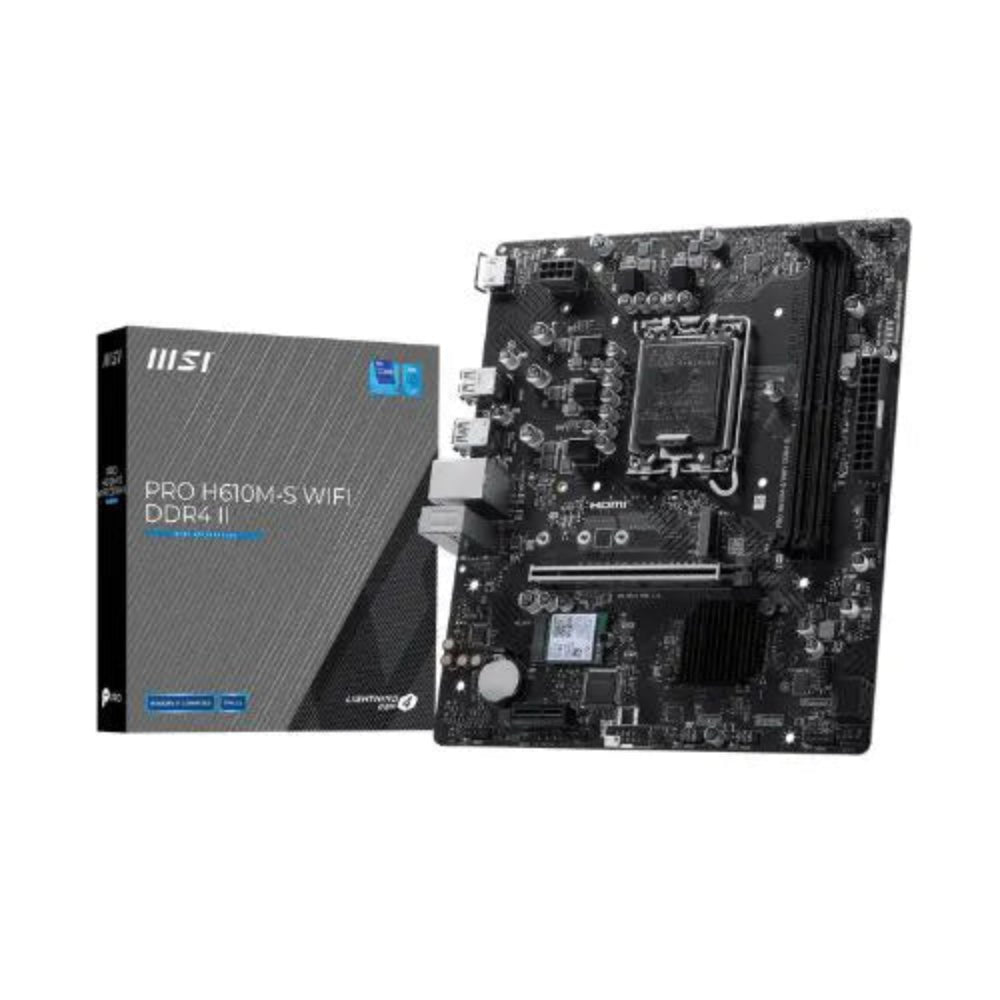

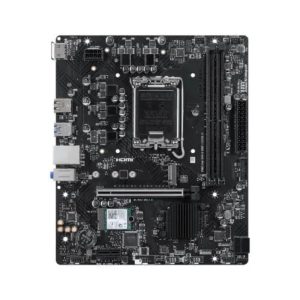

MSI Pro H610M-S Wifi DDR4 ll Intel Motherboard
MPN PRO-H610M-S-WIFI-DDR4-II · Brand MSI · mATX
Features of MSI Pro H610M-S Wifi DDR4 ll Intel Motherboard PRO H610M-S WIFI DDR4 II offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with 1G LAN, Wi-Fi 6E and PCIe 4.0, ready for the Intel ® Core 14th /13th /12th Gen processors. Core Boost – Premium layout and optimized digital power design for stable and efficient CPU power delivery. Memory Boost – Optimized and isolated DDR4 circuit design for improved memory p
Inclusive of GST · GST invoice available
Overview
Features of MSI Pro H610M-S Wifi DDR4 ll Intel Motherboard
PRO H610M-S WIFI DDR4 II offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with 1G LAN, Wi-Fi 6E and PCIe 4.0, ready for the Intel® Core 14th /13th /12th Gen processors.
Core Boost – Premium layout and optimized digital power design for stable and efficient CPU power delivery.
Memory Boost – Optimized and isolated DDR4 circuit design for improved memory performance, stability and compatibility.
DDR4 Memory Support – Supports DDR4 memory up to 3200 MT/s, with a maximum capacity of 64GB.
Lightning Gen 4 PCIe – PCIe 4.0 interface provides high-speed bandwidth for compatible graphics cards and expansion devices.
Wi-Fi 6E – High-speed wireless connectivity across 2.4GHz, 5GHz and 6GHz bands, supporting up to 2.4Gbps with 160MHz channels.
1G LAN – Realtek Gigabit LAN provides reliable high-speed wired networking.
Audio Boost – Designed to provide enhanced audio quality using a high-definition audio processor, quality audio components and isolated audio circuitry.
Steel Armor – Reinforced PCIe slot with additional solder points to support heavy graphics cards and improve durability.
EZ Debug LED – Onboard LEDs help identify hardware problems during system startup and troubleshooting.
Specifications of MSI Pro H610M-S Wifi DDR4 ll Intel Motherboard
| Model | PRO-H610M-S-WIFI-DDR4-II |
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | core i3, core i5, core i7, Pentium, Celeron |
| Chipset | H610 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Graphics Port | 1x HDMI |
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | HDMI USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H610 |
| Socket | LGA1700 |
| CPU Type | core i3, core i5, core i7, Pentium, Celeron |
| Max Memory | 64 GB |
| Memory Speed | up to 3200 |
| Model | PRO-H610M-S-WIFI-DDR4-II |
| Platform | INTEL |
| Graphics Port | 1x HDMI |
| Memory Feature | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slots | 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | HDMI USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports |
