The MSI PRO H810M-B DDR5 is a Micro-ATX motherboard built on Intel’s H810 chipset, designed for Intel Core Ultra Processors (Series 2) using the LGA 1851 socket. Measuring 220 mm × 243.84 mm, it fits standard mATX enclosures and pairs a clean silver-accented aesthetic with a practical, productivity-focused feature set that suits both home offices and professional workstations. Memory support is a strong point: two DDR5 UDIMM slots accommodate up to 128 GB of non-ECC, unbuffered memory running at JEDEC speeds between 4800 and 6400 MT/s. The board supports Intel XMP 3.0 profiles, Dual-Controller Dual-Channel mode, and CUDIMM modules, giving system builders meaningful headroom for memory-intensive workloads. Connectivity is well-rounded for the H810 tier. The primary PCIe slot (PCI_E1) runs PCIe 5.0 at up to x16, sourced directly from the CPU, delivering the full bandwidth headroom required by current-generation discrete graphics cards. Two additional PCIe 4.0 x1 slots come from the chipset. A single M.2 slot (M.2_1, chipset-fed) supports PCIe 4.0 x4 drives in 2260 or 2280 form factors, and four SATA 6 Gb/s ports handle conventional storage. Networking is handled by a Realtek RTL8125 controller providing 2.5 Gigabit Ethernet, a meaningful upgrade over legacy 1 GbE solutions for large file transfers and NAS access. Audio is powered by a Realtek ALC897 codec delivering 7.1-channel High-Definition Audio. Display output is available via one HDMI 2.1 port (4K 60 Hz) and one DisplayPort 1.4 port (4K 60 Hz), both contingent on a processor with integrated graphics. The rear USB panel includes four USB 2.0 and two USB 5 Gbps Type-A ports; the internal headers add a further four USB 2.0, two USB 5 Gbps Type-A, and one USB 10 Gbps Type-C connection for front-panel use. Builder-friendly additions include EZ M.2 Clip II and EZ PCIe Clip II for tool-light installation, three Addressable V2 RGB headers, one standard RGB header, four EZ Debug LEDs, and one EZ Memory Detection LED for rapid troubleshooting. A dedicated pump-fan header and two system-fan headers support flexible cooling configurations. TPM 2.0 pin-header support is present for Windows 11 security compliance, and the board is officially certified for Windows 11 64-bit. Verified Specifications: • Model: PRO H810M-B | Form Factor: mATX (220 mm × 243.84 mm) • Chipset: Intel H810 | Socket: LGA 1851 • CPU Support: Intel Core Ultra Processors Series 2 • Memory: 2× DDR5 UDIMM, max 128 GB, 4800–6400 MT/s (JEDEC), XMP 3.0, CUDIMM • PCIe: 1× PCIe 5.0 x16 (CPU), 2× PCIe 4.0 x1 (Chipset) • Storage: 1× M.2 PCIe 4.0 x4 (2260/2280), 4× SATA 6 Gb/s • LAN: Realtek RTL8125 2.5 GbE • Audio: Realtek ALC897, 7.1-ch HD Audio • Display: 1× HDMI 2.1 (4K 60 Hz), 1× DisplayPort 1.4 (4K 60 Hz) • USB Rear: 4× USB 2.0, 2× USB 5 Gbps Type-A • USB Front Headers: 4× USB 2.0, 2× USB 5 Gbps Type-A, 1× USB 10 Gbps Type-C • RGB: 3× ARGB V2 headers, 1× RGB header • OS: Windows 11 64-bit

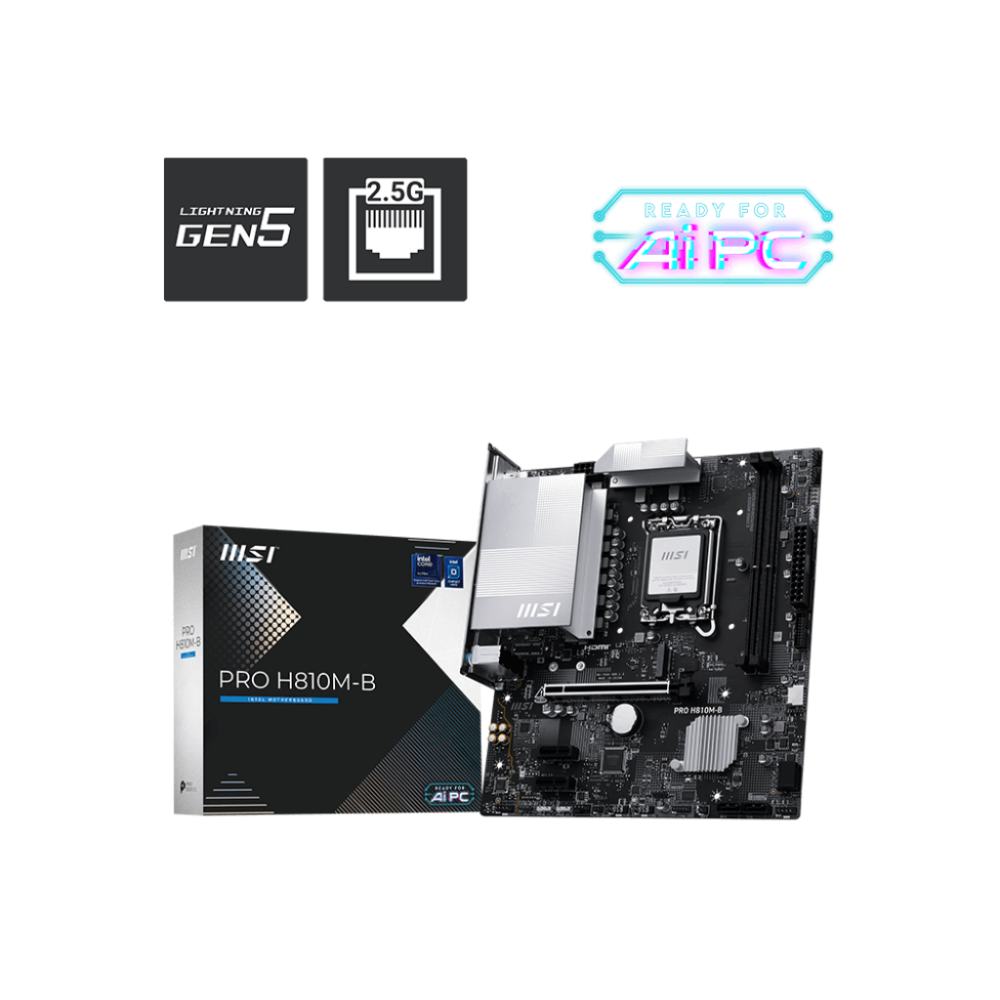

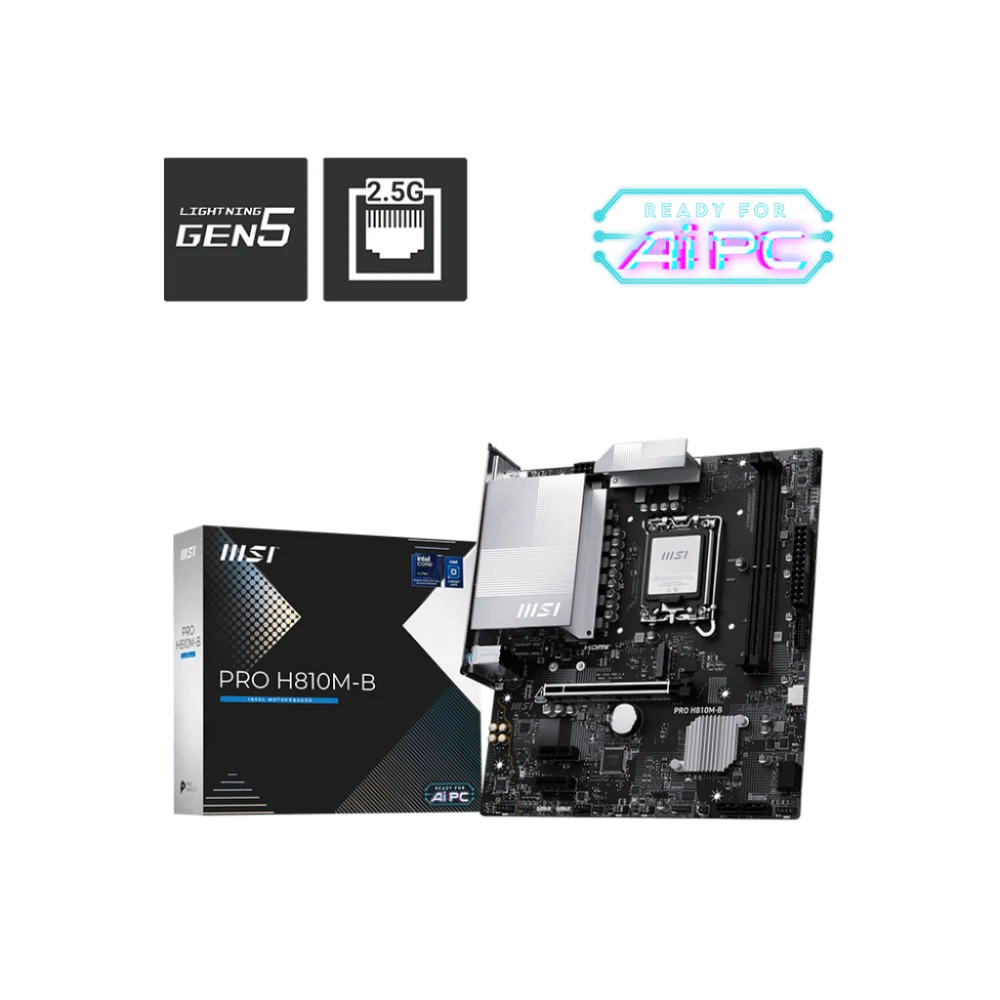

MSI Pro H810M-B DDR5 Intel Motherboard
₹9,325.00
The MSI PRO H810M-B DDR5 is an mATX motherboard supporting Intel Core Ultra Series 2 processors (LGA 1851) with PCIe 5.0, up to 128 GB DDR5 6400 MT/s, 2.5G LAN, and a M.2 PCIe 4.0 slot — a capable, build-friendly platform for productivity and everyday computing
Additional information
| Lan | Realtek® 8125 2.5Gbps LAN |
|---|---|
| Usb | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front) |
| Slot | 1x PCI-E x16 slot (Qty)2x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Model | PRO H810M-B |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 6400 – 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 6400 MT/s• 1DPC 2R Max speed up to 6400 MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM• The DIMM slots on this motherboard have double-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ |
| Storage | 1x M.2 (Qty)M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G (Qty)*Please refer to the manual for M.2 SSD heatsink restrictions |
| Pcb Info | mATX 220mmx243.84mm |
| Internal Io | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports |
| Led Feature | 4x EZ Debug LED1x EZ Memory Detection LED |
| Back Panel Ports | DisplayPortUSB 2.0USB 5Gbps Type-A2.5G LANAudio ConnectorsHDMITMUSB 2.0 |
| Operating System | Support for Windows® 11 64-bit |
| Onboard Graphics | 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Chipset | INTEL H810 |
| CPU Type | Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851 |
