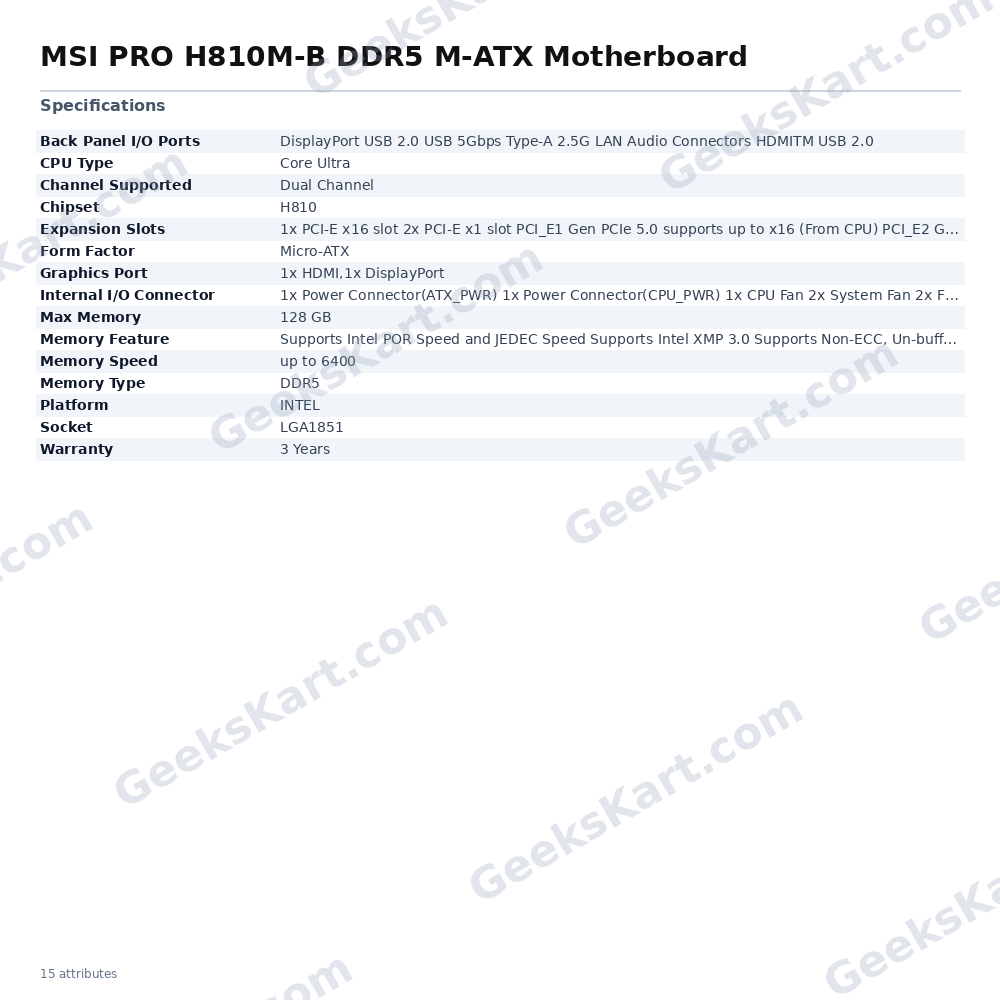

MSI PRO H810M-B DDR5 M-ATX Motherboard

The MSI PRO H810M-B is a Micro-ATX motherboard built on Intel’s H810 chipset, designed specifically for the LGA1851 socket and compatible with Intel Core Ultra Series 2 processors. Its compact Micro-ATX form factor makes it a practical choice for space-conscious desktop builds without sacrificing modern connectivity standards. Memory support is handled through a dual-channel DDR5 configuration, with speeds reaching up to 6400 MT/s (OC). The board is compatible with Intel XMP 3.0 profiles, Intel POR and JEDEC speeds, non-ECC unbuffered DIMMs, and the newer CUDIMM standard, allowing up to 128 GB of total memory capacity across its DIMM slots. For graphics and storage expansion, the PRO H810M-B features one PCIe 5.0 x16 slot sourced directly from the CPU, two PCIe 4.0 x1 slots from the chipset, and an M.2 slot supporting PCIe Gen 4 x4 speeds — offering fast NVMe SSD connectivity. The EZ M.2 Clip II and EZ PCIe Clip II features simplify tool-free installation of these components. Networking is handled by a 2.5G LAN port, providing a stable and fast wired connection suited to both everyday productivity and multimedia workloads. Display outputs on the rear I/O include one HDMI and one DisplayPort, catering to dual-monitor setups using integrated graphics. The board includes MSI’s Frozr Guard thermal solution, which combines an extended heatsink with MOSFET thermal pads rated at 7 W/mK for sustained load operation. Audio Boost provides dedicated audio circuitry for cleaner sound output. The silver colour scheme is designed to complement both white and black PC builds. The internal I/O connector set supports extensive front-panel connectivity and RGB lighting: three Addressable V2 RGB headers (JARGB_V2), one standard RGB header (JRGB), four USB 2.0 internal ports, two USB 5 Gbps Type-A internal ports, and one USB 10 Gbps Type-C internal port. A TPM 2.0 pin header is also present. The rear panel includes USB 2.0 and USB 5 Gbps Type-A ports alongside the LAN port and display outputs. Verified Specifications: – Form Factor: Micro-ATX – Socket: LGA1851 – Chipset: Intel H810 – Compatible CPU: Intel Core Ultra Series 2 – Memory Type: DDR5 (Dual Channel) – Max Memory Speed: 6400 MT/s (OC) – Max Memory Capacity: 128 GB – Memory Features: XMP 3.0, CUDIMM, Non-ECC Unbuffered – Expansion Slots: 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x1 (Chipset) – M.2: 1x PCIe Gen 4 x4 (Lightning Gen 4) – LAN: 2.5G – Display Output: 1x HDMI, 1x DisplayPort – Internal USB: 4x USB 2.0, 2x USB 5 Gbps Type-A, 1x USB 10 Gbps Type-C – RGB Headers: 3x JARGB_V2 (Addressable V2), 1x JRGB – Warranty: 3 Years
