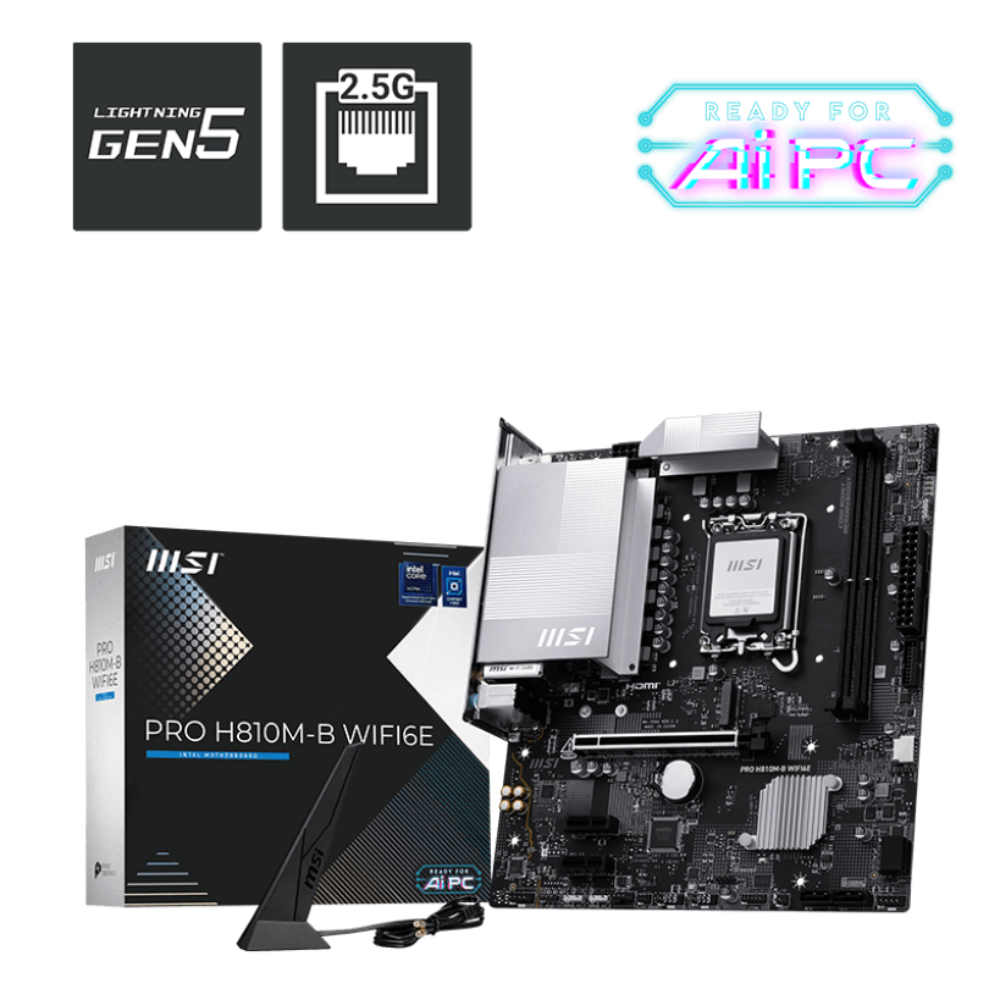

The MSI Pro H810M-B WiFi 6E is a Micro-ATX motherboard built on Intel’s H810 chipset and designed for the LGA 1851 socket, making it fully compatible with Intel Core Ultra processors (Series 2). Its compact 220 mm × 243.84 mm PCB fits standard mATX cases such as the MSI PRO Forge M051R, while its clean silver-accented design integrates naturally into both white and black system builds. Connectivity is a genuine strength of this board. The pre-installed Wi-Fi 6E module supports tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequencies at up to 160 MHz channel width, delivering theoretical wireless throughput up to 2.4 Gbps. MU-MIMO TX/RX and 802.11 a/b/g/n/ac/ax compliance are also included. Wired networking is handled by a Realtek 8125 2.5 Gbps LAN controller, a significant step up from standard 1 Gbps solutions. Bluetooth 5.3 with FIPS and FISMA compliance is also onboard. For memory, two DDR5 UDIMM slots support up to 128 GB of non-ECC unbuffered DDR5. Intel XMP 3.0 is supported, and the board can run memory at up to 6400 MT/s in both single-rank and dual-rank single-DIMM-per-channel configurations. CUDIMM support is also included. The primary PCIe slot (PCI_E1) runs at PCIe 5.0 x16 from the CPU, while two additional PCIe 4.0 x1 slots are routed from the chipset. Storage options include one M.2 slot (PCIe 4.0 x4, from chipset, supporting 2280/2260 form factors) and four SATA 6 Gb/s ports. Display output is available via HDMI 2.1 and DisplayPort 1.4, both capable of 4K 60 Hz output when a CPU with integrated graphics is installed. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD audio. USB connectivity spans rear-panel USB 2.0 and USB 5 Gbps Type-A ports, plus front-panel headers for USB 2.0, USB 5 Gbps Type-A, and a USB 10 Gbps Type-C port. Debugging is aided by four EZ Debug LEDs and one EZ Memory Detection LED. The board includes MSI’s Core Boost power design, Frozr AI Cooling fan management, three Addressable V2 RGB headers, one standard RGB header, and a TPM 2.0 pin header. Windows 11 64-bit is the supported operating system. Verified Specifications: • Chipset: Intel H810 • Socket: LGA 1851 • Form Factor: mATX (220 mm × 243.84 mm) • Memory: 2× DDR5 UDIMM, max 128 GB, up to 6400 MT/s, XMP 3.0, CUDIMM • PCIe: 1× PCIe 5.0 x16 (CPU), 2× PCIe 4.0 x1 (chipset) • Storage: 1× M.2 PCIe 4.0 x4 (2280/2260), 4× SATA 6 Gb/s • Wireless: Wi-Fi 6E (2.4/5/6 GHz, 160 MHz, up to 2.4 Gbps), BT 5.3 • LAN: Realtek 8125 2.5 Gbps • Display: HDMI 2.1 + DisplayPort 1.4 (4K 60 Hz, iGPU required) • Audio: Realtek ALC897, 7.1-channel HD • USB (rear): 4× USB 2.0, 2× USB 5 Gbps Type-A • USB (front headers): 4× USB 2.0, 2× USB 5 Gbps Type-A, 1× USB 10 Gbps Type-C • OS Support: Windows 11 64-bit
MSI Pro B860M-E DDR5 Intel Motherboard
₹10,485.00
MSI B760M Project Zero WiFi DDR5 Intel Motherboard
₹24,505.00
MSI Pro H810M-B Wifi6e DDR5 Intel Motherboard
₹11,735.00
The MSI Pro H810M-B WiFi 6E is a compact mATX motherboard featuring Intel H810 chipset, LGA 1851 socket for Intel Core Ultra Series 2 processors, DDR5 up to 6400 MT/s, PCIe 5.0, Wi-Fi 6E, and 2.5G LAN
Out of stock

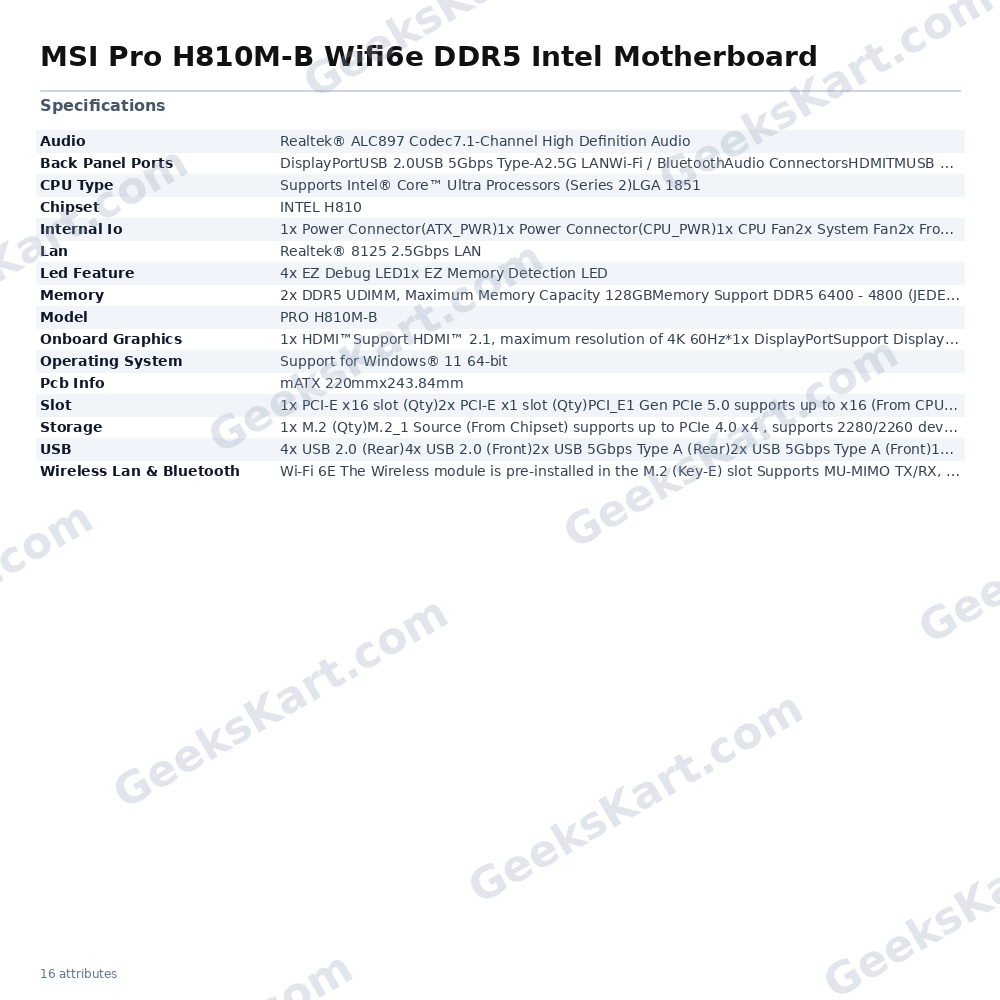

Additional information
| Chipset | INTEL H810 |
|---|---|
| CPU Type | Supports Intel® CoreTM Ultra Processors (Series 2)LGA 1851 |
| Lan | Realtek® 8125 2.5Gbps LAN |
| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front) |
| Slot | 1x PCI-E x16 slot (Qty)2x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Model | PRO H810M-B |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 6400 – 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 6400 MT/s• 1DPC 2R Max speed up to 6400 MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM• The DIMM slots on this motherboard have double-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ |
| Storage | 1x M.2 (Qty)M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G (Qty)*Please refer to the manual for M.2 SSD heatsink restrictions |
| Pcb Info | mATX 220mmx243.84mm |
| Internal Io | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports |
| Led Feature | 4x EZ Debug LED1x EZ Memory Detection LED |
| Back Panel Ports | DisplayPortUSB 2.0USB 5Gbps Type-A2.5G LANWi-Fi / BluetoothAudio ConnectorsHDMITMUSB 2.0 |
| Operating System | Support for Windows® 11 64-bit |
| Onboard Graphics | 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Wireless Lan & Bluetooth | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2 |
