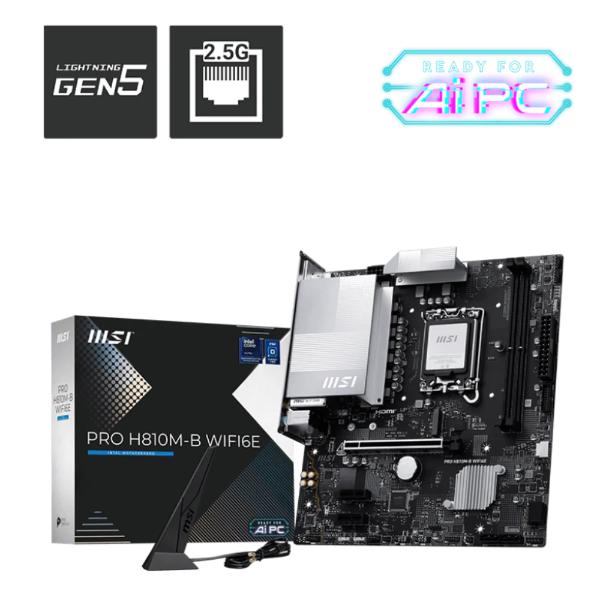

MSI Pro H810M-B WIFI6E DDR5 M-ATX Motherboard
MPN PRO-H810M-B-WIFI6E · Brand MSI · mATX
MSI Pro H810M-B WIFI6E DDR5 M-ATX Motherboard. Highlights: up to 6400
Inclusive of GST · GST invoice available
Overview
The MSI Pro H810M-B WIFI6E DDR5 M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: LGA1851; Chipset: H810; Form Factor: Micro-ATX; Memory Type: DDR5; Memory Speed: up to 6400; Color: Black. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹10999 subject to availability — confirm at checkout
Datasheet
| Platform | INTEL |
|---|---|
| Graphics Port | 1x HDMI,1x DisplayPort |
| Memory Feature | Supports Intel POR Speed and JEDEC Speed Supports Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Motherboard Series | MSI PRO |
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

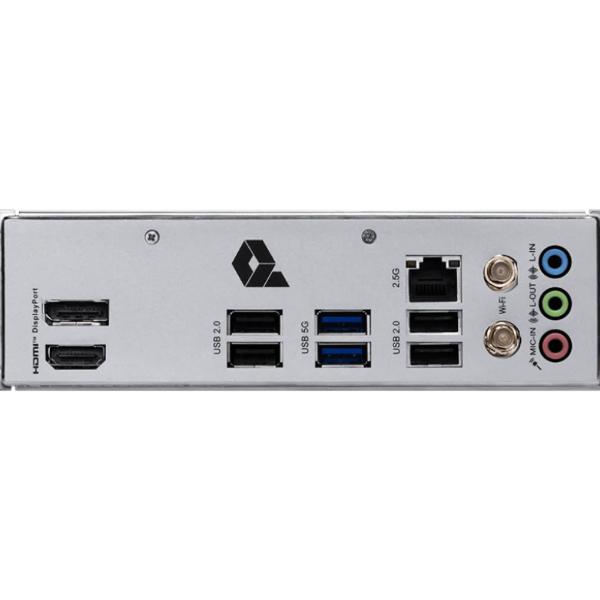

| Back Panel I/O Ports | DisplayPort USB 2.0 USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMITM USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | mATX |
| color | Black |
| Chipset | H810 |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Max Memory | 128 GB |
| Memory Speed | up to 6400 |
