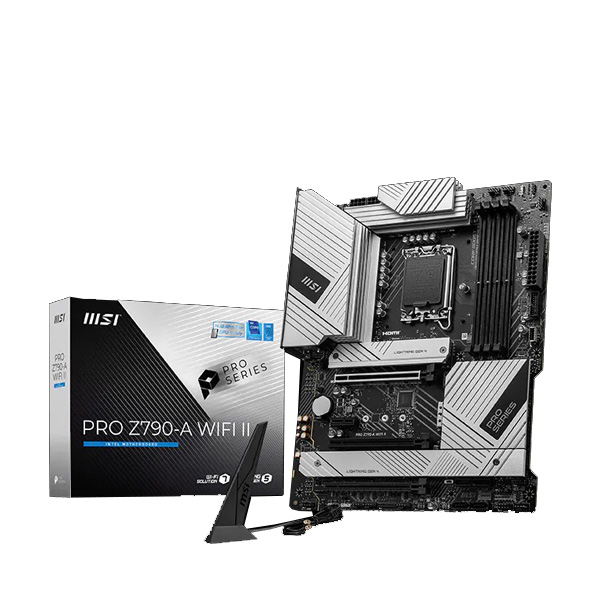

MSI Pro Z790-A WiFi 6E II ATX Motherboard
MPN PRO-Z790-A-WIFI-II · Brand MSI · ATX
MSI PRO Z790-A WiFi II is an ATX motherboard for Intel LGA 1700 processors (12th–14th Gen) with DDR5 memory support, integrated WiFi, and a 3-year warranty
Inclusive of GST · GST invoice available
Overview
The MSI PRO Z790-A WiFi II is a full-size ATX motherboard built on Intel's Z790 chipset and designed for the LGA 1700 socket. It is compatible with Intel Core 12th, 13th, and 14th generation processors, as well as Intel Pentium Gold and Celeron processors that use the same socket, giving it a broad upgrade path within the Intel 700-series platform ecosystem. Memory support is based on the DDR5 standard, which delivers higher bandwidth and improved power efficiency compared to the previous DDR4 generation. The ATX form factor ensures compatibility with the vast majority of mid-tower and full-tower PC cases, and the board's black PCB and component layout suit both professional workstation builds and productivity-focused desktop systems. MSI's PRO series positions this board as a reliability-oriented choice for business, creative, and mainstream enthusiast users who want a stable, feature-complete platform without the premium pricing of high-end gaming lines. The integrated WiFi module supports wireless connectivity out of the box, reducing the need for a separate adapter. A three-year manufacturer warranty is included, providing medium-term coverage for professional deployments or home builds alike. Verifiable Specifications: - Socket: Intel LGA 1700 - Chipset: Intel Z790 - Compatible CPUs: Intel Core 14th / 13th / 12th Gen; Intel Pentium Gold; Intel Celeron (LGA 1700) - Memory Type: DDR5 - Form Factor: ATX - Connectivity: Integrated WiFi - Color: Black - Warranty: 3 Years - SKU: PRO Z790-A WIFI II - Brand: MSI This motherboard is well suited as the foundation of a DDR5-based Intel build, whether for content creation, office productivity, or a capable everyday computing system. Pair it with an LGA 1700-compatible processor and DDR5 memory modules to take full advantage of the platform's capabilities

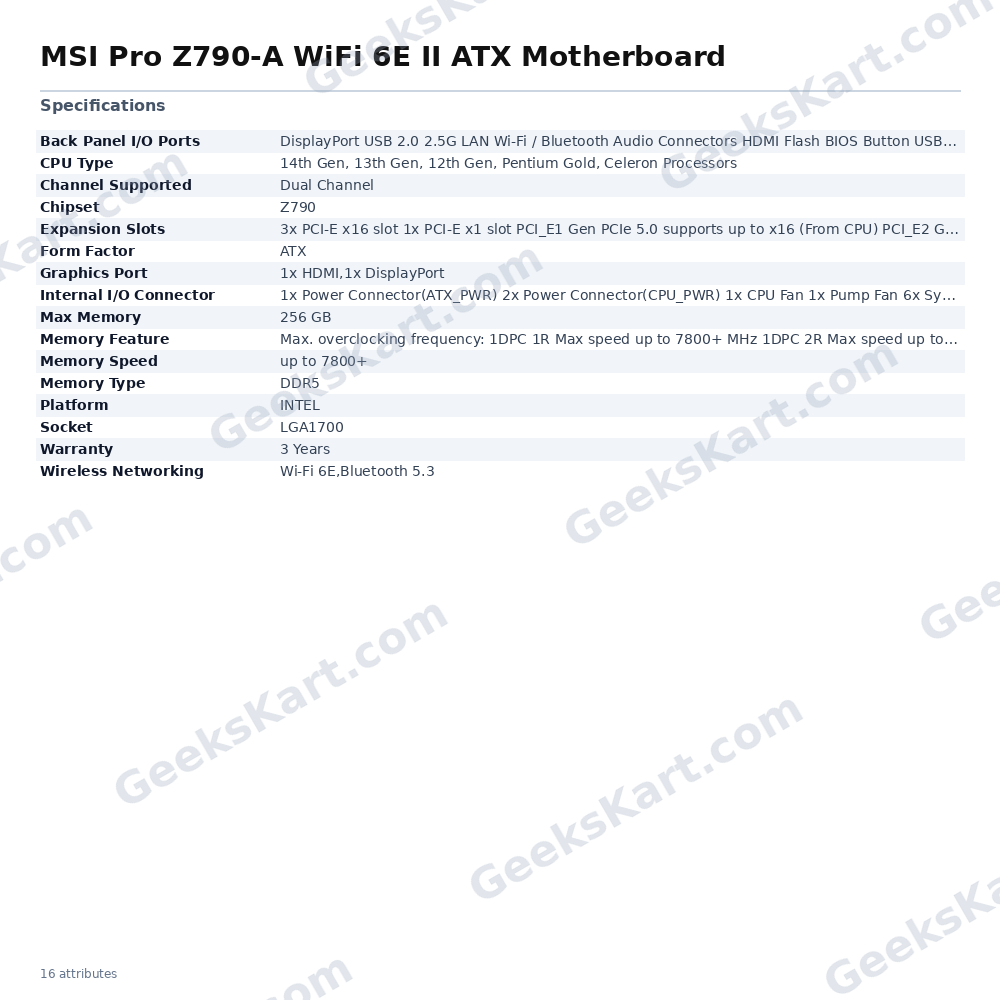

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | Z790 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 256 GB |
| Memory Speed | up to 7800+ |
| Platform | INTEL |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Memory Feature | Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI Flash BIOS Button USB 5Gbps Type-A USB 10Gbps Type-A USB 20Gbps Type-C S/PDIF-OUT |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
