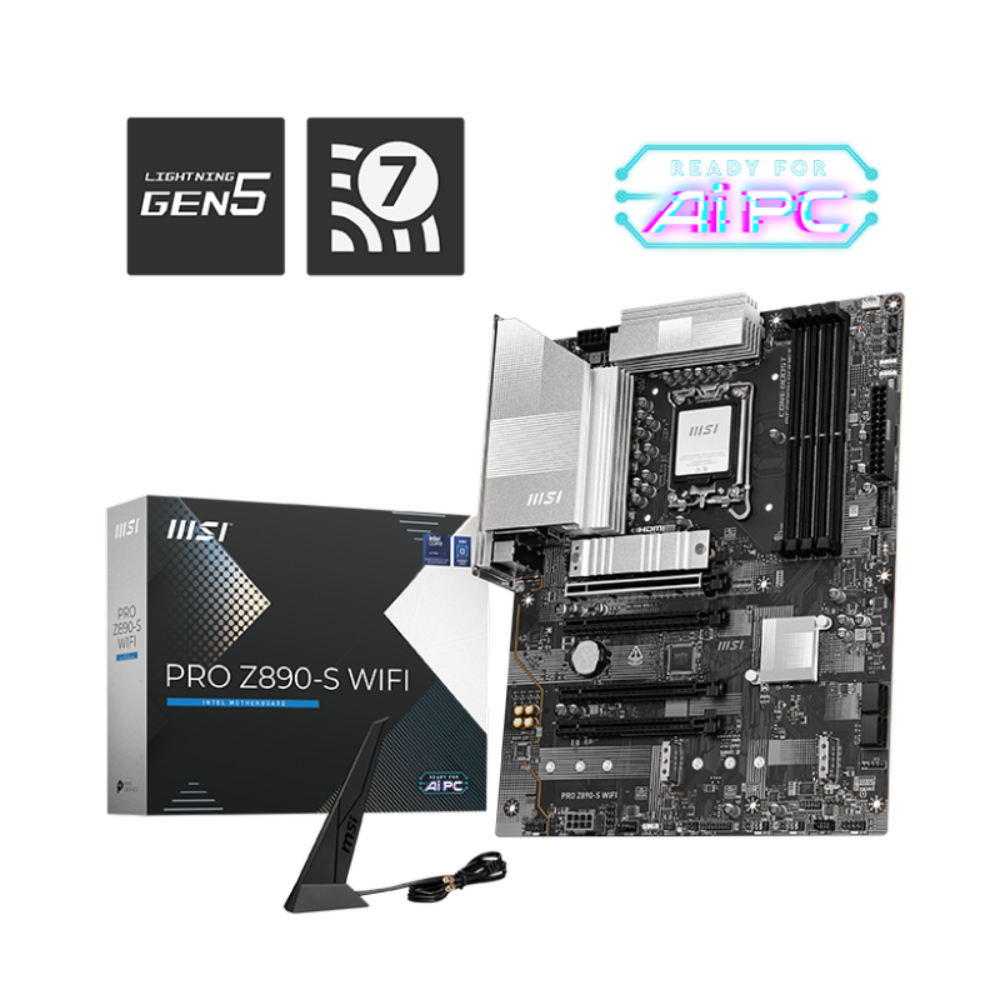

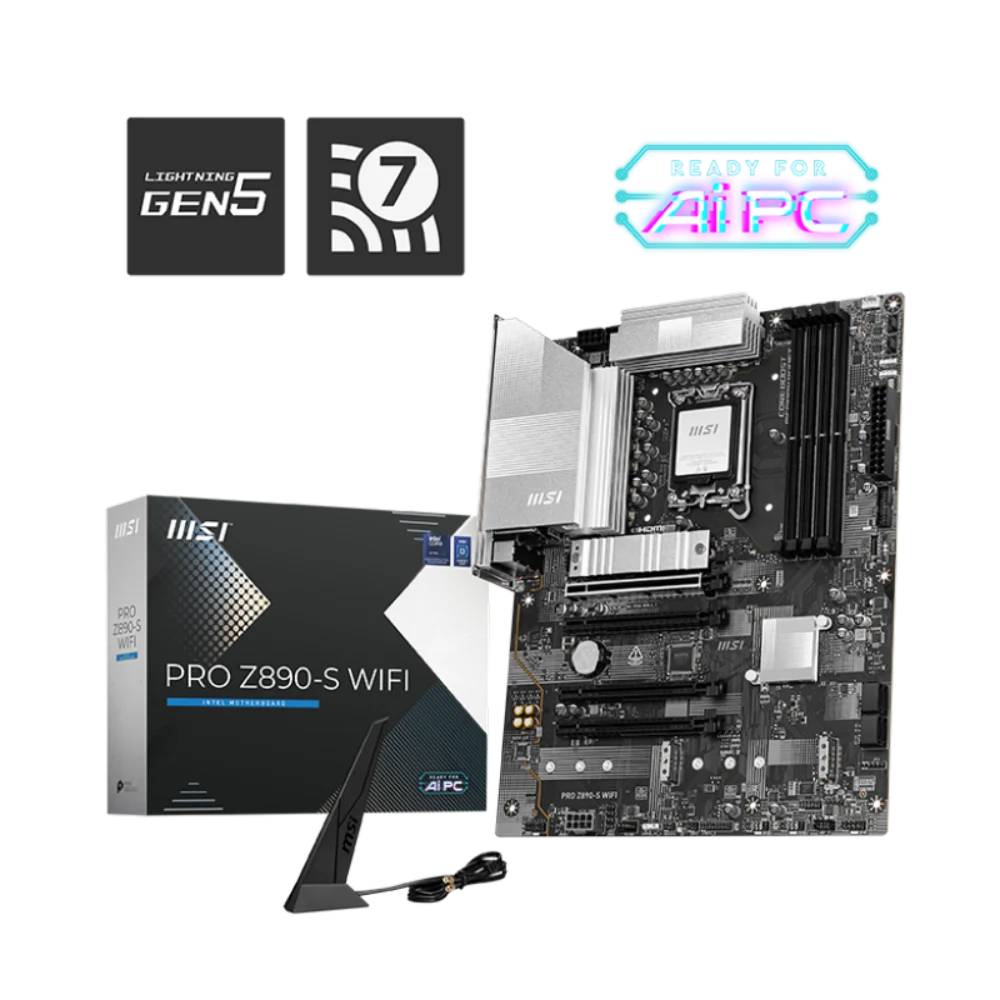

MSI Pro Z890-S Wifi DDR5 Intel Motherboard
MPN MSI-PRO-Z890-S-WIFI-DDR5 · Brand MSI
The MSI Pro Z890-S WiFi 7 DDR5 is an Intel Z890 ATX motherboard for LGA 1851 Core Ultra Series 2 processors, featuring PCIe 5.0 M.2, Thunderbolt 4, Intel Wi-Fi 7, 2.5G LAN, and support for DDR5 memory up to 8600+ MT/s
Inclusive of GST · GST invoice available
Overview
The MSI Pro Z890-S WiFi 7 DDR5 is an ATX form-factor motherboard built on the Intel Z890 chipset, designed for Intel Core Ultra Series 2 processors using the LGA 1851 socket. It delivers a professional-grade platform for demanding productivity, content creation, and AI-accelerated workloads. At the heart of its connectivity is Intel Wi-Fi 7, supporting tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz (320 MHz channel width) with speeds up to 5.8 Gbps, alongside Bluetooth 5.4 with MLO and 4K-QAM support. Wired networking is handled by a Realtek 8125D 2.5 Gbps LAN controller. A rear Thunderbolt 4 port provides up to 40 Gbps transfer bandwidth and supports daisy-chaining of up to three Thunderbolt 4 devices, with USB4 (20 Gbps) and USB 3.2 (10 Gbps) backward compatibility. The board supports four DDR5 UDIMM slots with a maximum capacity of 256 GB. In single DIMM-per-channel single-rank configurations, memory can be overclocked up to 8600+ MT/s, with Intel XMP 3.0 and CUDIMM support included. JEDEC speeds range from 4800 to 6400 MT/s. Storage options include three M.2 slots — the primary slot from the CPU runs at PCIe 5.0 x4, while the remaining two from the chipset support PCIe 4.0 x4 (one also supports SATA mode) — plus four SATA 6 Gb/s ports. The board supports RAID 0, 1, 5, and 10 for SATA and RAID 0, 1, 5 for NVMe. Power delivery is handled by a 12+1+1+1 digital power phase design with dual CPU power connectors and a supplemental PCIe 8-pin power connector. The thermal solution includes an extended VRM heatsink, M.2 Shield Frozr thermal covers, 7 W/mK MOSFET thermal pads, and a chipset heatsink. Transient Voltage Suppressors (TVS) are fitted to guard against voltage spikes. Display output options from the rear panel include HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 (4K 60 Hz), and Thunderbolt 4 Type-C supporting DisplayPort 2.1 UHBR20 (up to 4K 120 Hz / 8K 60 Hz) — active only when a compatible CPU with integrated graphics is installed. Audio is powered by a Realtek ALC897 codec delivering 7.1-channel HD audio. Verified Specifications: - Form Factor: ATX (243.84 mm x 304.8 mm) - Chipset: Intel Z890 - CPU Socket: LGA 1851 (Intel Core Ultra Series 2) - Memory: 4x DDR5 UDIMM, max 256 GB, up to 8600+ MT/s (OC), XMP 3.0, CUDIMM - PCIe Slots: PCIe 5.0 x16 (CPU), PCIe 4.0 x4 (CPU), PCIe 4.0 x4 (chipset), PCIe 3.0 x1 (chipset) - Storage: 3x M.2 (PCIe 5.0 x4 / PCIe 4.0 x4 / PCIe 4.0 x4 or SATA), 4x SATA 6 Gb/s - Wireless: Intel Wi-Fi 7 (802.11be), Bluetooth 5.4 - LAN: Realtek 8125D 2.5 Gbps - USB (Rear): 6x USB 5 Gbps Type-A, 1x USB 20 Gbps Type-C, 1x Thunderbolt 4 Type-C - Display Out: HDMI 2.1, DisplayPort 1.4, Thunderbolt 4 Type-C (DP 2.1) - Audio: Realtek ALC897, 7.1-channel HD - OS: Windows 11 64-bit

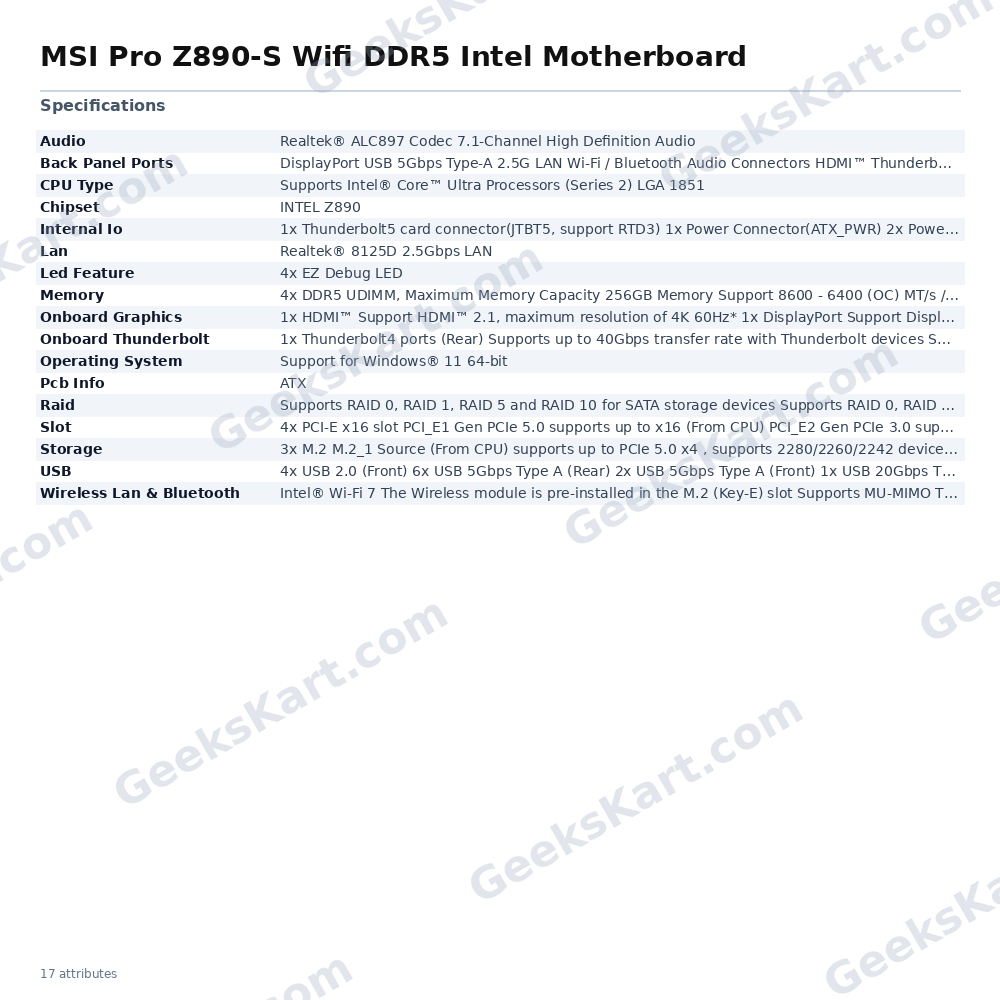

Datasheet
| Chipset | Intel Z890 |
|---|---|
| CPU Type | Supports Intel® CoreTM Ultra Processors (Series 2) LGA 1851 |
| Lan | Realtek® 8125D 2.5Gbps LAN |
| USB | 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ |
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions |
| Pcb Info | ATX |
| Internal Io | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Led Feature | 4x EZ Debug LED |
| Back Panel Ports | DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 20Gbps Type-C USB 5Gbps Type-A |
| Operating System | Support for Windows® 11 64-bit |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Onboard Thunderbolt | 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.' |
