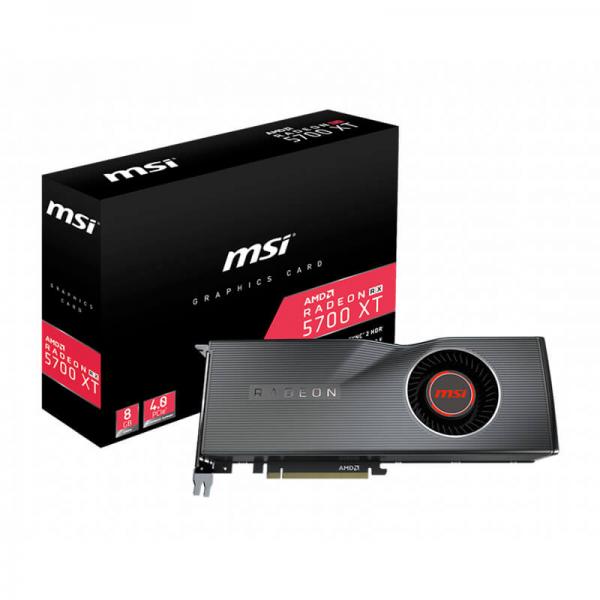

MSI Radeon RX 5700 XT 8GB AMD Graphic Card
MPN MSI-RX5700XT · Brand MSI
Features of MSI Radeon RX 5700 XT 8G Graphics Card Core/Memory Boost Clock / Game Clock* / Base Clock / Memory Speed Up to 1925 MHz / Up to 1815 MHz / 1670 MHz /14Gbps 8GB GDDR6 DisplayPort x 3 / HDMI x 1 TORX Fan 3.0 Dispersion fan blade: Steep curved blade accelerating the airflow Traditional fan blade: Provides steady airflow to massive heat sink below Afterburner Overclocking Utility Kombustor: The latest DirectX versions benchmark supporting. Predator: In-game video recording. AMD Radeon Fr
Inclusive of GST · GST invoice available
Overview
Features of MSI Radeon RX 5700 XT 8G Graphics Card
Core/Memory
- Boost Clock / Game Clock* / Base Clock / Memory Speed
- Up to 1925 MHz / Up to 1815 MHz / 1670 MHz /14Gbps
- 8GB GDDR6
- DisplayPort x 3 / HDMI x 1
TORX Fan 3.0
- Dispersion fan blade: Steep curved blade accelerating the airflow
- Traditional fan blade: Provides steady airflow to massive heat sink below
Afterburner Overclocking Utility
- Kombustor: The latest DirectX versions benchmark supporting.
- Predator: In-game video recording.
AMD Radeon FreeSync™
- Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
- * 'Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
- Core/Memory
- All Solid Capacitors
- Afterburner Overclocking Utility
- RDNA Architecture with 2nd Gen 7nm GPU
- AMD Radeon FreeSync™

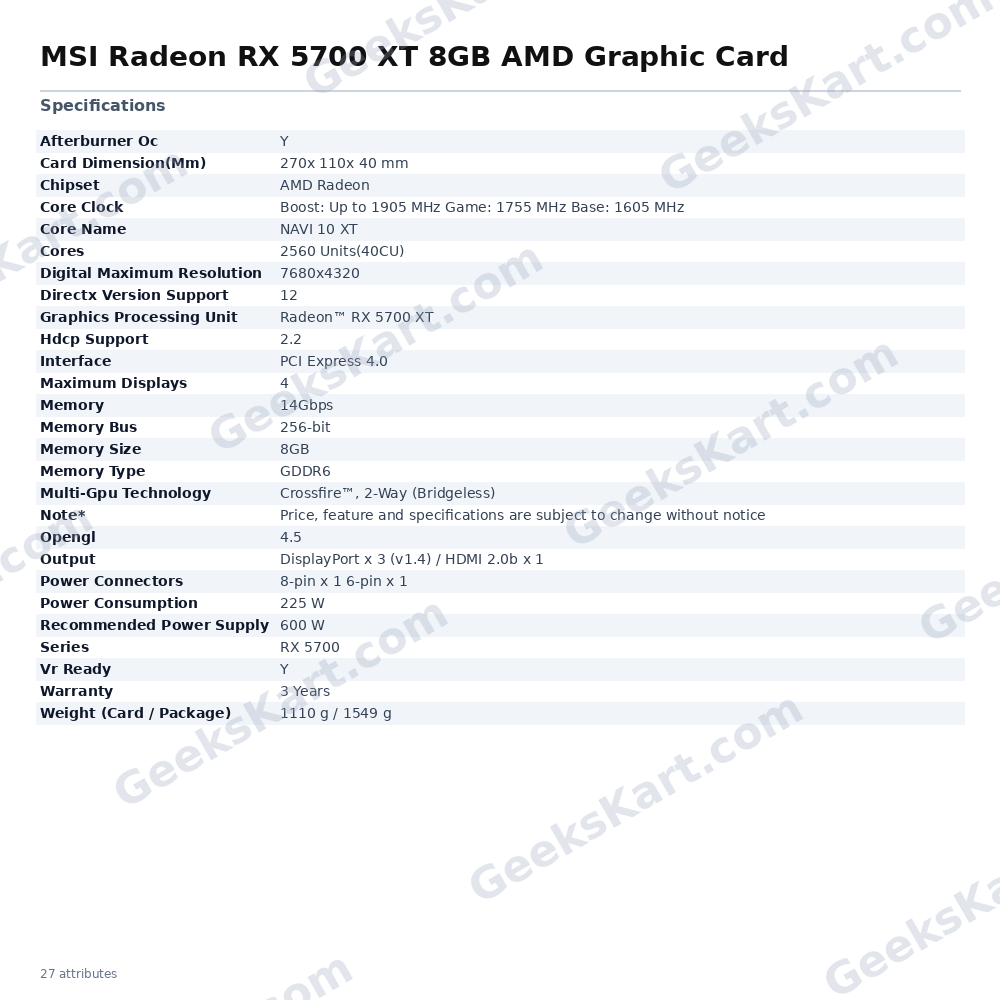

Specifications of MSI Radeon RX 5700 XT 8GB AMD Graphic Card
| MEMORY SIZE | 8GB |
| Output | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| Memory | 14Gbps |
| MEMORY TYPE | GDDR6 |
| OpenGL | 4.5 |
| Core Name | NAVI 10 XT |
| Memory Bus | 256-bit |
| Core clock | Boost: Up to 1905 MHz Game: 1755 MHz Base: 1605 MHz |
| GRAPHICS PROCESSING UNIT | Radeon™ RX 5700 XT |
| SERIES | RX 5700 |
| Cores | 2560 Units(40CU) |
| DirectX Version Support | 12 |
| Digital Maximum Resolution | 7680x4320 |
| HDCP Support | 2.2 |
| Interface | PCI Express 4.0 |
| CHIPSET | AMD Radeon |
| Power Consumption | 225 W |
| Weight (Card / Package) | 1110 g / 1549 g |
| Maximum Displays | 4 |
| Afterburner OC | Y |
| Recommended Power Supply | 600 W |
| Multi-GPU Technology | Crossfire™, 2-Way (Bridgeless) |
| Card Dimension(mm) | 270x 110x 40 mm |
| VR Ready | Y |
| Power Connectors | 8-pin x 1 6-pin x 1 |
| WARRANTY | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice |
Datasheet
| Memory Type | GDDR6 |
|---|---|
| Warranty | 3 Years |
| Chipset | AMD RADEON |
| Cores | 2560 Units(40CU) |
| Memory Size | 8GB |
| Interface | PCI Express 4.0 |
| Power Consumption | 225 W |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | 14Gbps |
| Opengl | 4.5 |
| Output | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| Series | RX 5700 |
| Vr Ready | Y |
| Core Name | NAVI 10 XT |
| Core Clock | Boost: Up to 1905 MHz Game: 1755 MHz Base: 1605 MHz |
| Memory Bus | 256-bit |
| Hdcp Support | 2.2 |
| Afterburner Oc | Y |
| Maximum Displays | 4 |
| Power Connectors | 8-pin x 1 6-pin x 1 |
| Card Dimension(Mm) | 270x 110x 40 mm |
| Multi-Gpu Technology | Crossfire™, 2-Way (Bridgeless) |
| Directx Version Support | 12 |
| Weight (Card / Package) | 1110 g / 1549 g |
| Graphics Processing Unit | Radeon™ RX 5700 XT |
| Recommended Power Supply | 600 W |
| Digital Maximum Resolution | 7680×4320 |
