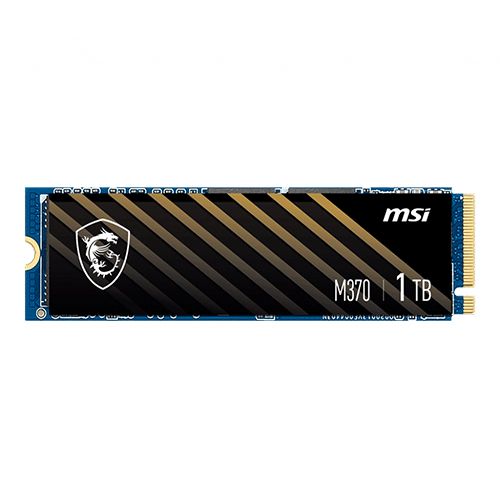

MSI Spatium M370 1TB NVME M.2 NVME Gen3 Solid State Drive ( SSD )
MPN MSI-SPATIUM-M370-1TB-SSD · Brand MSI · M.2 2280
Feature of MSI Spatium M370 1TB NVME M.2 NVME Gen3 Solid State Drive ( SSD ) MSI PCIe Gen3x4 interface and complies with the NVMe 1.3 standard Sequential Read speeds up to 2400MB/s and Write speeds up to 1850MB/s Up to 1600 TBW Built-in data security and error-correction capabilities 256GB to 2TB capacities in M.2 2280 form factor Suitable for both desktop and notebook. A NEED FOR SPEED! Optimized for the PCIe Gen3 interface, MSI SPATIUM M370 NVMe ssd reaches read/write speeds up to 2400/1750 MB
Inclusive of GST · GST invoice available
Overview
Feature of MSI Spatium M370 1TB NVME M.2 NVME Gen3 Solid State Drive ( SSD )
- MSI PCIe Gen3x4 interface and complies with the NVMe 1.3 standard
- Sequential Read speeds up to 2400MB/s and Write speeds up to 1850MB/s
- Up to 1600 TBW
- Built-in data security and error-correction capabilities
- 256GB to 2TB capacities in M.2 2280 form factor
- Suitable for both desktop and notebook.
A NEED FOR SPEED!
Optimized for the PCIe Gen3 interface, MSI SPATIUM M370 NVMe ssd reaches read/write speeds up to 2400/1750 MB/s, allowing for rapid data transfer and shortened game load times.
SMALL SIZE, MORE STORAGE
The latest 3D NAND flash technology of this MSI SSD brings dense storage in a compact design and allows MSI SPATIUM M370 NVMe storage capacities up to 2TB
DON’T STOP GAMING
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.
TAKE CARE OF YOUR DATA
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.
5-YEAR WARRANTY
MSI stands by the quality and reliability of the MSI SPATIUM M370 NVMe with a 5-Year comprehensive warranty. If you need assistance or are not satisfied with your product, MSI support is available to help and assist.
Advanced Features:
- TRIM (Performance Optimization, OS support required)
- SMART (Self-Monitoring, Analysis and Reporting Technology)
- LDPC (Low Density Parity Check) ECC Algorithm
- End to End Data Path Protection
- APST (Autonomous Power State Transition)
- AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
Specifications of MSI Spatium M370 1TB NVME M.2 NVME Gen3 Solid State Drive ( SSD )
| MODEL NAME | SPATIUM M370 NVMe M.2 |
| CAPACITY | 1TB |
| CONTROLLER | PHISON E13T |
| FLASH MEMORY | 3D NAND |
| FORM FACTOR | M.2 2280 |
| INTERFACE | PCIe Gen3x4, NVMe 1.3 |
| COMPATIBILITY | PCIe Gen3 / Gen2 / Gen1 |
| DIMENSIONS | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| SEQUENTIAL READ UP TO (MB/S) | 2400 |
| SEQUENTIAL WRITE UP TO (MB/S) | 1750 |
| RANDOM READ 4KB UP TO (IOPS) | 215,000 |
| RANDOM WRITE 4KB UP TO (IOPS) | 330,000 |
| MAXIMUM OPERATING POWER (W) | 3.6 |
| IDLE POWER PS3 (MW) | 20 |
| LOW POWER L1.2 (MW) | 2 |
| OPERATING TEMPERATURES | 0°C – 70°C |
| STORAGE TEMPERATURES | -40°C – 85°C |
| TERABYTES WRITTEN (TBW) | 800 |
| MEAN TIME BETWEEN FAILURE (MTBF) | Up to 1,500,000 Hours |
| ADVANCED FEATURES | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security) |
| LIMITED WARRANTY | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. |
| Note* | Price, feature and specifications are subject to change without notice. |

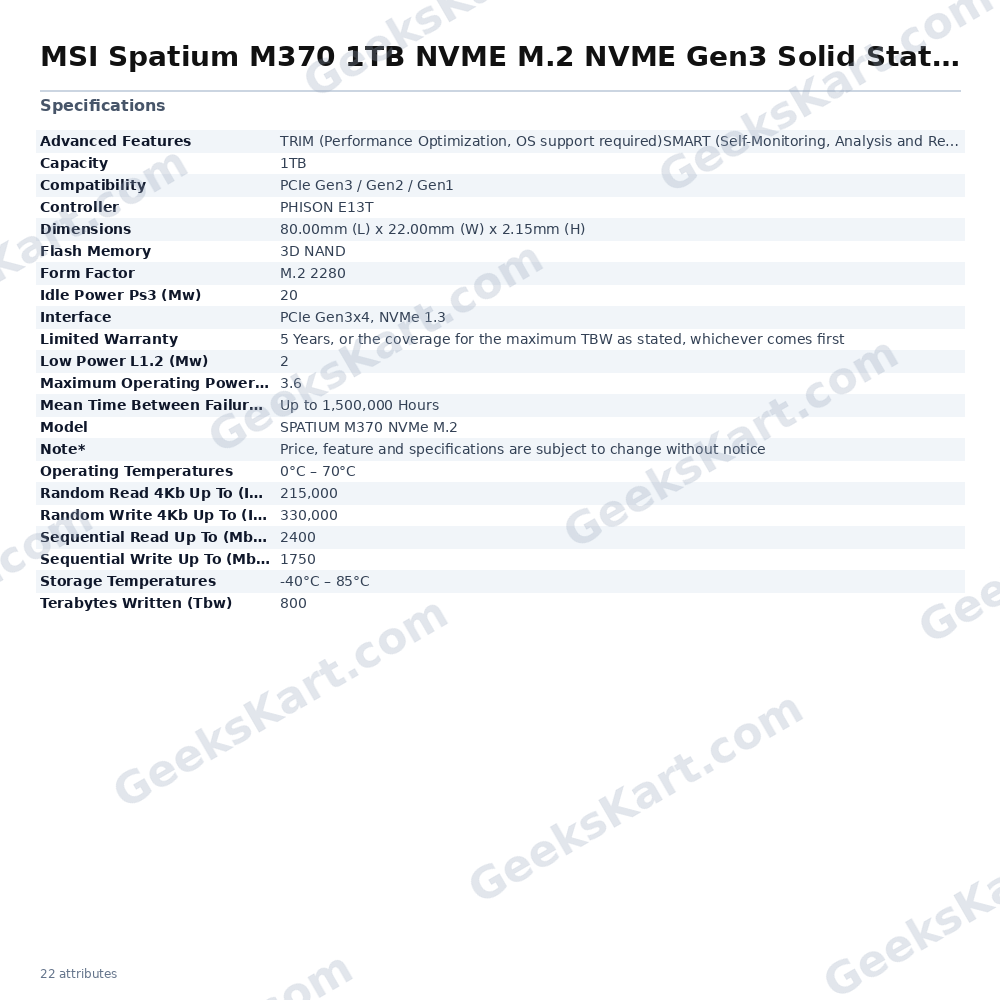

Datasheet
| Capacity | 1TB |
|---|---|
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3x4, NVMe 1.3 |
| Note* | Price, feature and specifications are subject to change without notice |
| Controller | PHISON E13T |
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| Model | SPATIUM M370 NVMe M.2 |
| Flash Memory | 3D NAND |
| Compatibility | PCIe Gen3 / Gen2 / Gen1 |
| Limited Warranty | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first |
| Advanced Features | TRIM (Performance Optimization, OS support required)SMART (Self-Monitoring, Analysis and Reporting Technology)LDPC (Low Density Parity Check) ECC AlgorithmEnd to End Data Path ProtectionAPST (Autonomous Power State Transition)AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security) |
| Idle Power Ps3 (Mw) | 20 |
| Low Power L1.2 (Mw) | 2 |
| Storage Temperatures | -40°C – 85°C |
| Operating Temperatures | 0°C – 70°C |
| Terabytes Written (Tbw) | 800 |
| Maximum Operating Power (W) | 3.6 |
| Random Read 4Kb Up To (Iops) | 215,000 |
| Sequential Read Up To (Mb/S) | 2400 |
| Random Write 4Kb Up To (Iops) | 330,000 |
| Sequential Write Up To (Mb/S) | 1750 |
| Mean Time Between Failure (Mtbf) | Up to 1,500,000 Hours |
