MSI Spatium S270 480GB 2.5 SATA SATA3 Internal Solid State Drive ( SSD )
MPN MSI-SPATIUM-S270-480GB-2-5-SATA-SSD · Brand MSI · SATA 2.5"
The MSI Spatium S270 480GB is a 2.5-inch SATA III SSD with sequential read/write speeds up to 500/450 MB/s, 250 TBW endurance, and a 5-year warranty — compatible with both desktop and laptop systems
Inclusive of GST · GST invoice available
Overview
The MSI Spatium S270 480GB is a 2.5-inch SATA III internal solid-state drive designed to deliver a meaningful performance upgrade over traditional hard drives in both desktop and laptop systems. Built on MSI's SPATIUM storage platform, the S270 targets everyday computing, productivity workloads, and gaming environments where a reliable, fast boot drive or secondary storage solution is needed without the added complexity of an NVMe slot. Powered by the Phison S11 controller and utilizing 3D NAND flash memory, the Spatium S270 achieves sequential read speeds of up to 500 MB/s and sequential write speeds of up to 450 MB/s over the SATA III 6 Gbps interface. These figures represent a significant improvement over mechanical hard drives and make the drive well suited for reducing application launch times, shortening game load screens, and accelerating file transfers within the bandwidth constraints of the SATA protocol. For random I/O performance, the drive is rated at up to 55,000 IOPS for 4K random reads and up to 80,000 IOPS for 4K random writes — figures that contribute to snappier system responsiveness in multi-tasking scenarios. Maximum operating power is rated at 2W, with idle power (PS3 state) at 325mW and low-power L1.2 state at just 4.9mW, making it a power-conscious choice for notebooks where battery longevity matters. The drive carries a rated endurance of 250 TBW (Terabytes Written) and an MTBF of up to 2,000,000 hours. Reliability features include LDPC ECC error-correction, TRIM support for sustained long-term performance, SMART self-monitoring, and an over-provisioning scheme to manage NAND wear. Storage temperatures are specified 40°C to 85°C. The SATA interface provides backward compatibility with SATA II (3 Gbps) and SATA I (1.5 Gbps) systems, though peak speeds require a SATA III host. MSI backs the drive with a 5-year warranty. --- Verified Specifications --- Model: SPATIUM-S270-480GB | Controller: Phison S11 | Flash: 3D NAND | Form Factor: 2.5-inch SATA | Interface: SATA III 6 Gbps | Dimensions: 100.20 mm (L) × 69.85 mm (W) × 7.00 mm (H) | Sequential Read: up to 500 MB/s | Sequential Write: up to 450 MB/s | Random Read 4K: up to 55,000 IOPS | Random Write 4K: up to 80,000 IOPS | TBW: 250 | MTBF: up to 2,000,000 hours | Max Operating Power: 2W | Idle Power (PS3): 325 mW | Low Power (L1.2): 4.9 mW | Storage Temp: -40°C to 85°C | Warranty: 5 Years

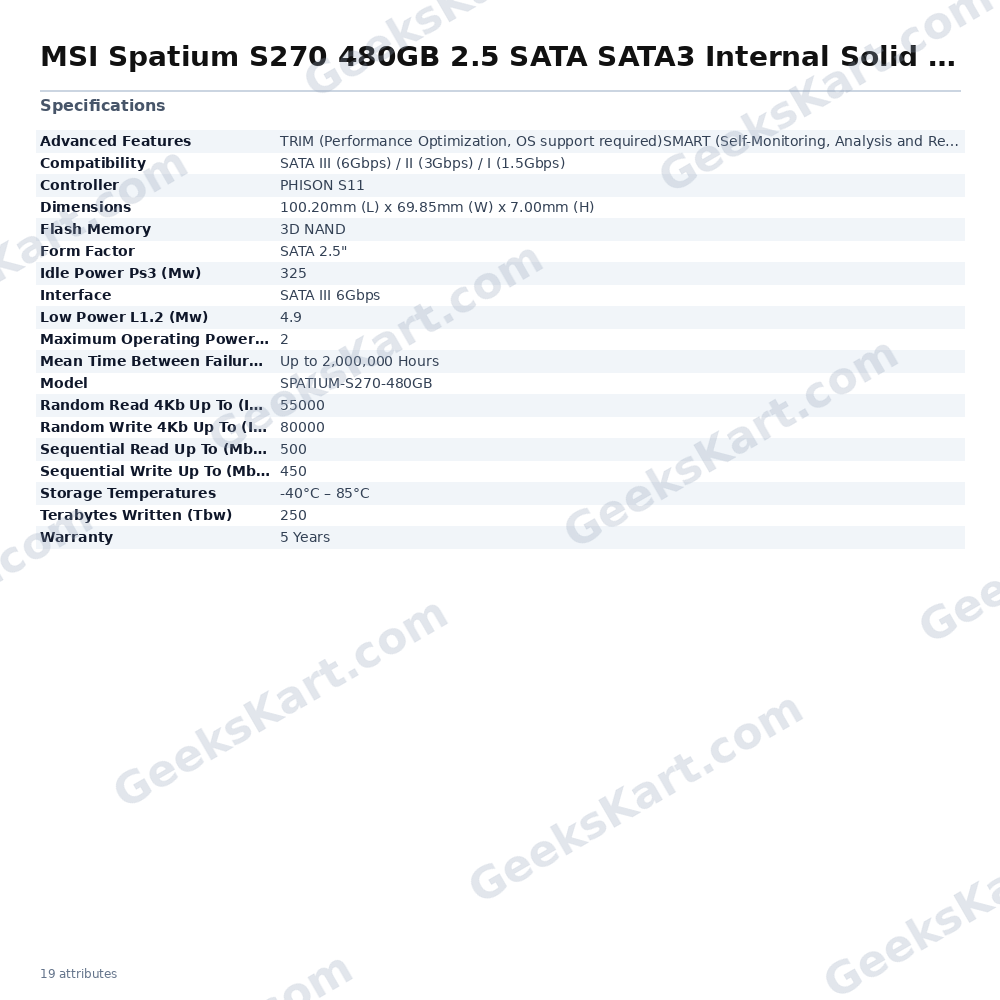

Datasheet
| Warranty | 5 Years |
|---|---|
| Interface | SATA III 6Gbps |
| Controller | PHISON S11 |
| Dimensions | 100.20mm (L) x 69.85mm (W) x 7.00mm (H) |
| Model | SPATIUM-S270-480GB |
| Flash Memory | 3D NAND |
| Compatibility | SATA III (6Gbps) / II (3Gbps) / I (1.5Gbps) |
| Advanced Features | TRIM (Performance Optimization, OS support required)SMART (Self-Monitoring, Analysis and Reporting Technology)LDPC (Low Density Parity Check) ECC AlgorithmOver-Provision |
| Idle Power Ps3 (Mw) | 325 |
| Low Power L1.2 (Mw) | 4.9 |
| Storage Temperatures | -40°C – 85°C |
| Terabytes Written (Tbw) | 250 |
| Maximum Operating Power (W) | 2 |
| Random Read 4Kb Up To (Iops) | 55000 |
| Sequential Read Up To (Mb/S) | 500 |
| Random Write 4Kb Up To (Iops) | 80000 |
| Sequential Write Up To (Mb/S) | 450 |
| Mean Time Between Failure (Mtbf) | Up to 2,000,000 Hours |
| Form Factor | SATA 2.5" |
