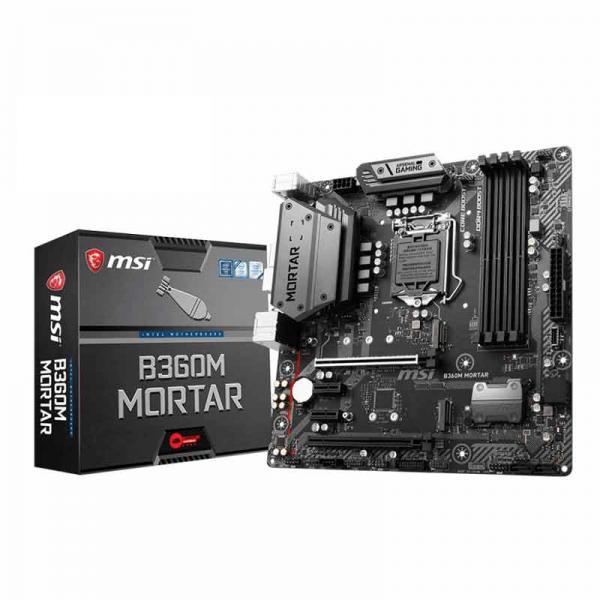

The MSI B360M Mortar is a Micro-ATX motherboard with Intel B360 chipset supporting 8th/9th Gen Intel processors, up to 64GB DDR4, dual M.2 NVMe slots, USB 3.1 Gen2, and Intel I219-V Gigabit LAN — built for reliable gaming and everyday desktop use
Inclusive of GST · GST invoice available
Overview
The MSI B360M Mortar is a Micro-ATX form factor motherboard built on Intel's B360 chipset, designed for 8th and 9th generation Intel Core, Pentium Gold, and Celeron processors using the LGA1151 socket. It is a compact yet feature-rich platform suited to gaming builds and space-conscious desktop configurations where reliability and connectivity are priorities. Memory support extends to four DDR4 slots capable of holding up to 64GB total across a dual-channel architecture. Supported speeds include 2133MHz, 2400MHz, and 2666MHz, with compatibility for Intel Extreme Memory Profile (XMP). The board accepts non-ECC UDIMM modules, keeping mainstream upgrade paths straightforward. Storage options are generous for a board of this class. Four SATA 6Gb/s ports serve traditional drives, while two Key-M M.2 slots provide high-speed NVMe connectivity. The first M.2 slot supports PCIe 3.0 x4 and SATA 6Gb/s across 2242, 2260, 2280, and 22110 form factors. The second supports PCIe 3.0 x4 with 2242, 2260, and 2280 devices, and is also Intel Optane Memory Ready. Note that the SATA2 port is unavailable when a SATA M.2 SSD occupies M2_1, and the M2_2 slot is unavailable when a PCIe device occupies the PCI_E4 slot. Expansion is handled by two PCIe 3.0 x16 slots operating in x16 or x4 modes, plus two PCIe 3.0 x1 slots. Two-way AMD CrossFire multi-GPU configurations are supported via the reinforced Steel Armor PCIe slot. USB connectivity is extensive: three USB 3.1 Gen2 (10Gbps) ports are available — one Type-A and one Type-C on the rear panel, plus one internal Type-C header. Two additional USB 3.1 Gen1 ports are available via internal header, and six USB 2.0 ports round out the complement. Networking is handled by the Intel I219-V Gigabit LAN controller. Onboard display outputs include DVI-D (up to 1920×1200 at 60Hz), DisplayPort (up to 4096×2304 at 60Hz), and HDMI (up to 4096×2160 at 30Hz); display output is not available when using an "F"-suffix processor. Audio is driven by dual Realtek ALC892 codecs delivering 7.1-channel HD audio with optical S/PDIF output. Fan control is addressed by one 4-pin CPU fan header and three 4-pin system fan headers. A 5050 RGB LED strip header (12V) is present for lighting customisation. Verified Specifications: Chipset: Intel B360 | Socket: LGA1151 | Form Factor: Micro-ATX, 9.6 in. × 9.6 in. (24.3 cm × 24.3 cm) | Memory: 4× DDR4 UDIMM, up to 64GB, 2133/2400/2666MHz, dual-channel, XMP | PCIe Slots: 2× PCIe 3.0 x16, 2× PCIe 3.0 x1 | Storage: 4× SATA 6Gb/s, 2× M.2 PCIe 3.0 x4 | USB: 3× USB 3.1 Gen2 (10Gbps), 2× USB 3.1 Gen1, 6× USB 2.0 | LAN: Intel I219-V Gigabit | Audio: Dual Realtek ALC892, 7.1-CH HD, S/PDIF | Display: DVI-D, DisplayPort, HDMI | Warranty: 3 Years | OS Support: Windows 10 64-bit

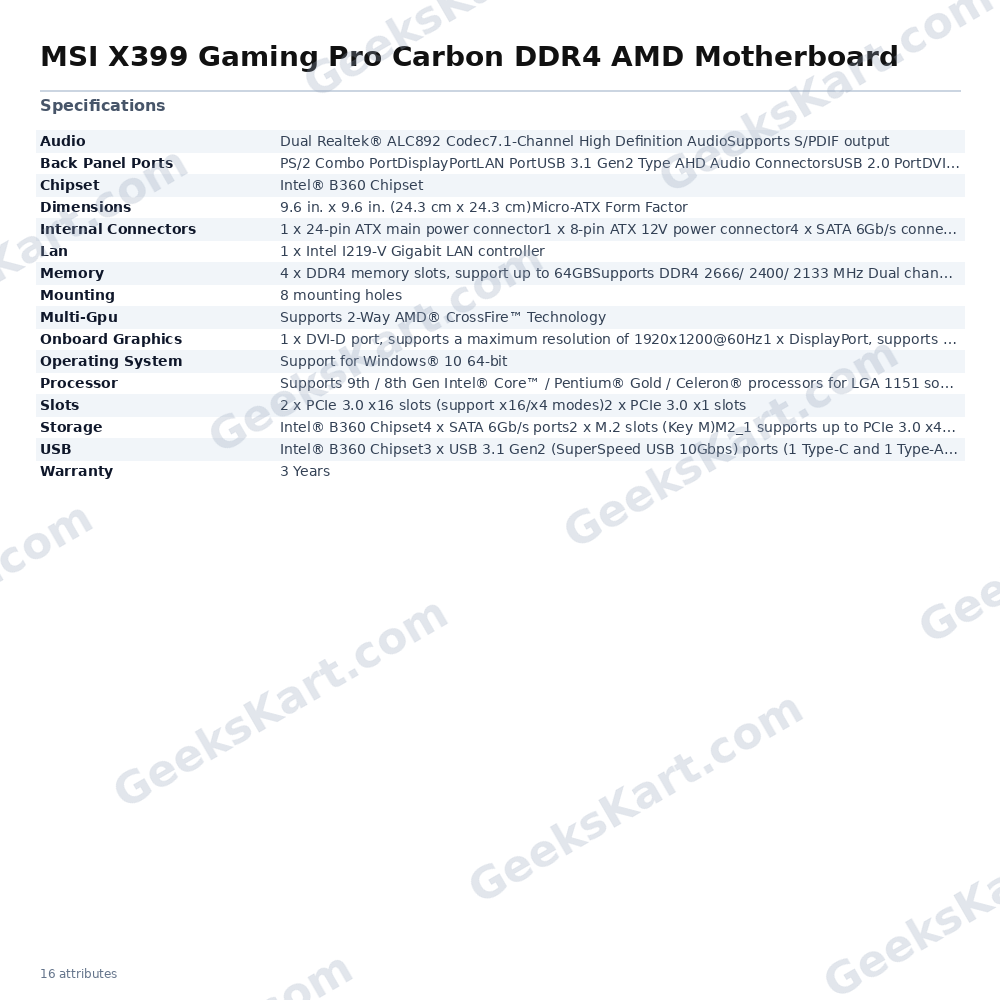

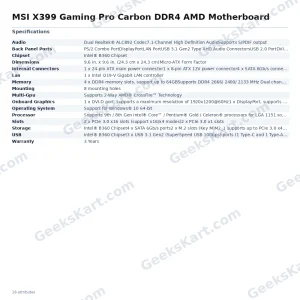

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® B360 Chipset |
| Lan | 1 x Intel I219-V Gigabit LAN controller |
| USB | Intel® B360 Chipset3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector) |
| Audio | Dual Realtek® ALC892 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Slots | 2 x PCIe 3.0 x16 slots (support x16/x4 modes)2 x PCIe 3.0 x1 slots |
| Memory | 4 x DDR4 memory slots, support up to 64GBSupports DDR4 2666/ 2400/ 2133 MHz Dual channel memory architectureSupports non-ECC UDIMM memoryeSupports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® B360 Chipset4 x SATA 6Gb/s ports2 x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices**2Intel® Optane™ Memory Ready ,supported on M2_2 3SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website |
| Mounting | 8 mounting holes |
| Multi-Gpu | Supports 2-Way AMD® CrossFire™ Technology |
| Processor | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Dimensions | 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)Micro-ATX Form Factor |
| Back Panel Ports | PS/2 Combo PortDisplayPortLAN PortUSB 3.1 Gen2 Type AHD Audio ConnectorsUSB 2.0 PortDVI-D PortHDMI PortUSB 2.0 PortUSB 3.1 Gen2 Type COptical S/PDIF OUT |
| Onboard Graphics | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1 x DisplayPort, supports a maximum resolution of 4096X2304@60Hz1 x HDMI™ port, supports a maximum resolution of 4096×2160@30Hz*No Display support when using the Processor model with suffix “F” |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x USB 3.1 Gen2 Type-C port1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)1 x 4-pin CPU fan connector3 x 4-pin system fan connectors1 x Front panel audio connector2 x Front panel connectors1 x 5050 RGB LED strip 12V connector1 x Thunderbolt add-on card connector1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper |
