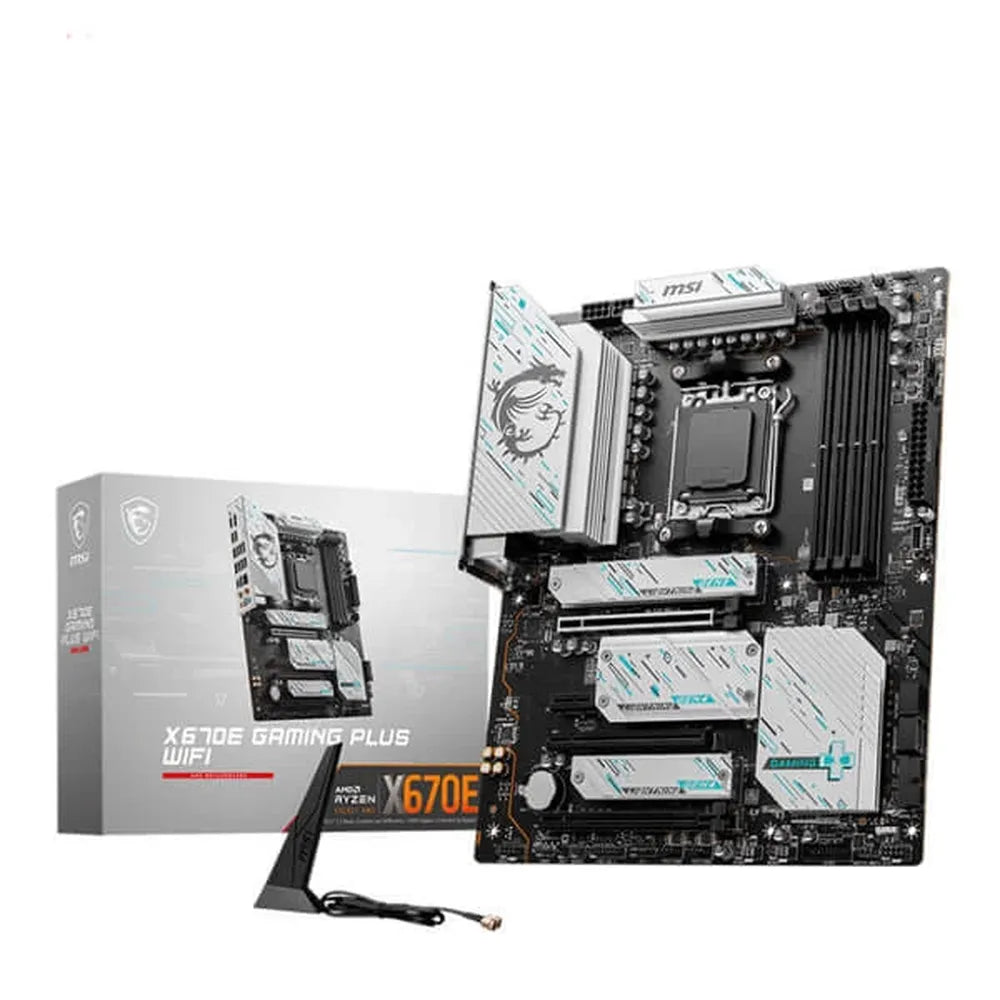

MSI X670E Gaming Plus WIFI AMD DDR5 Motherboard

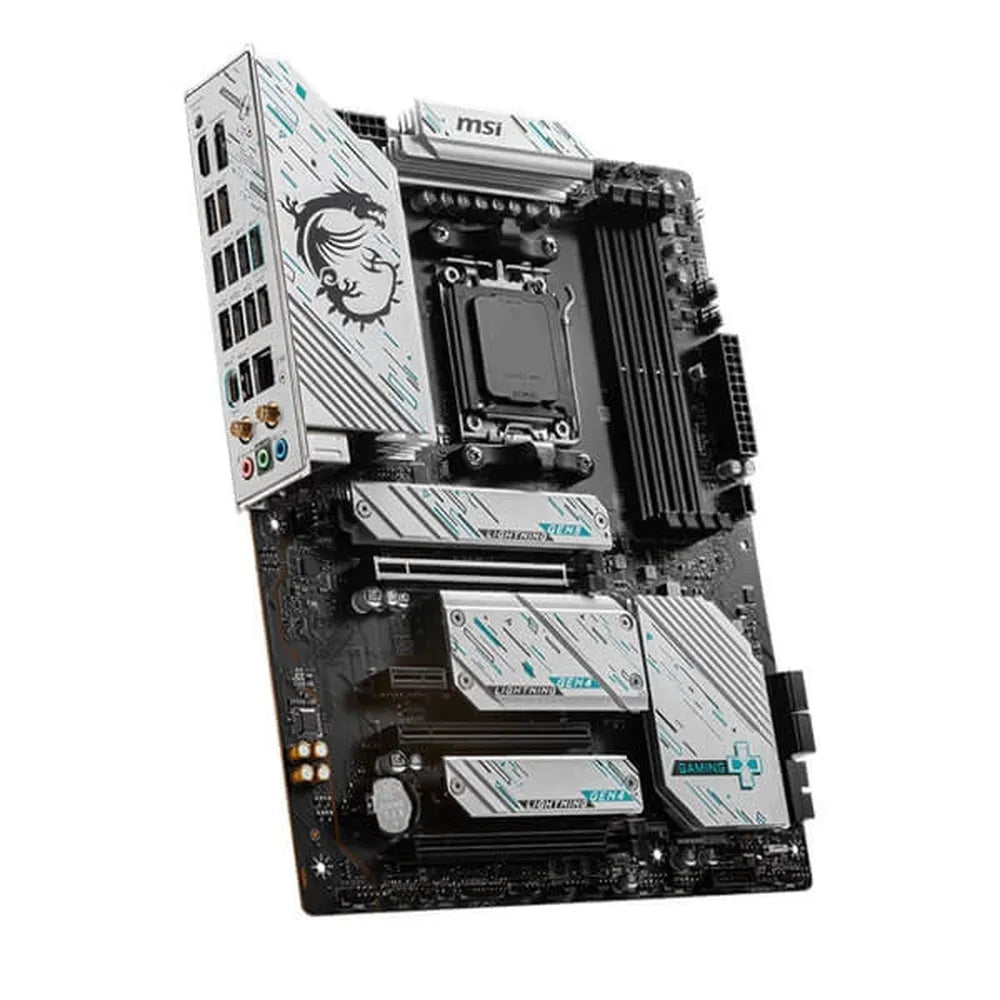

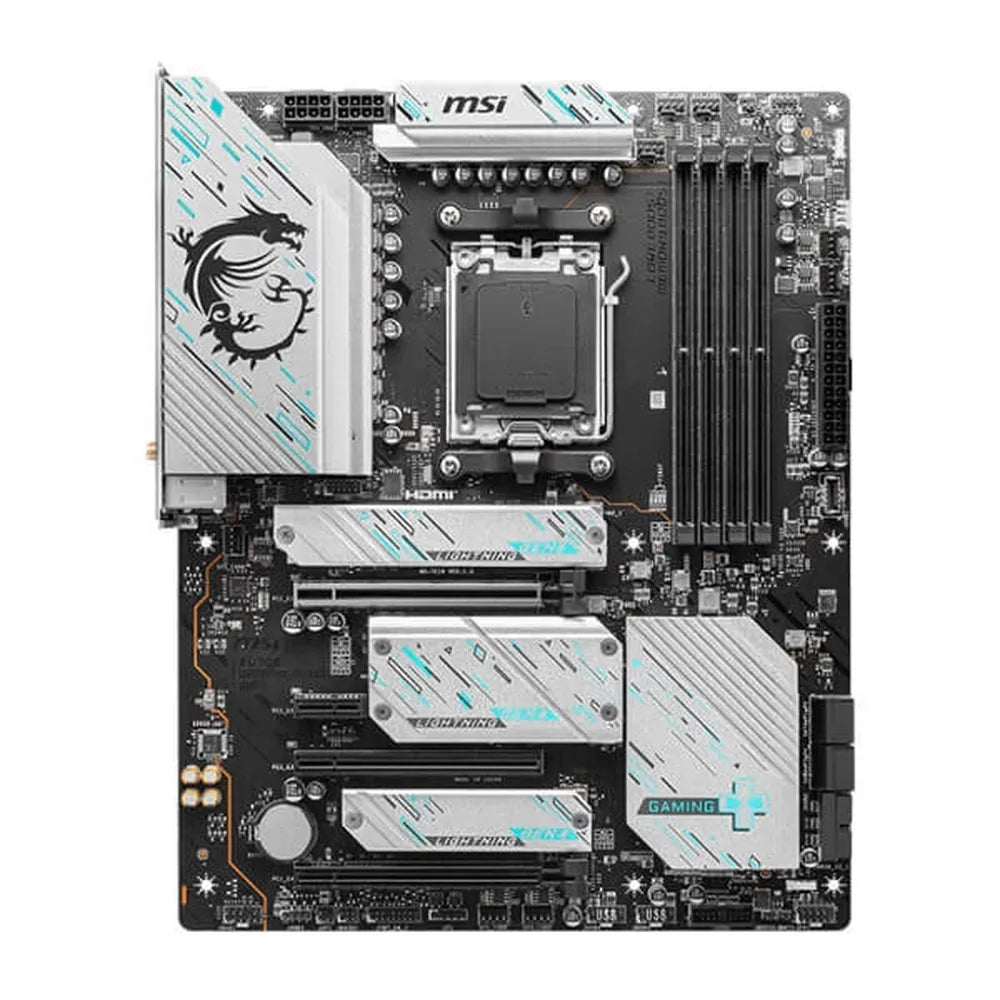

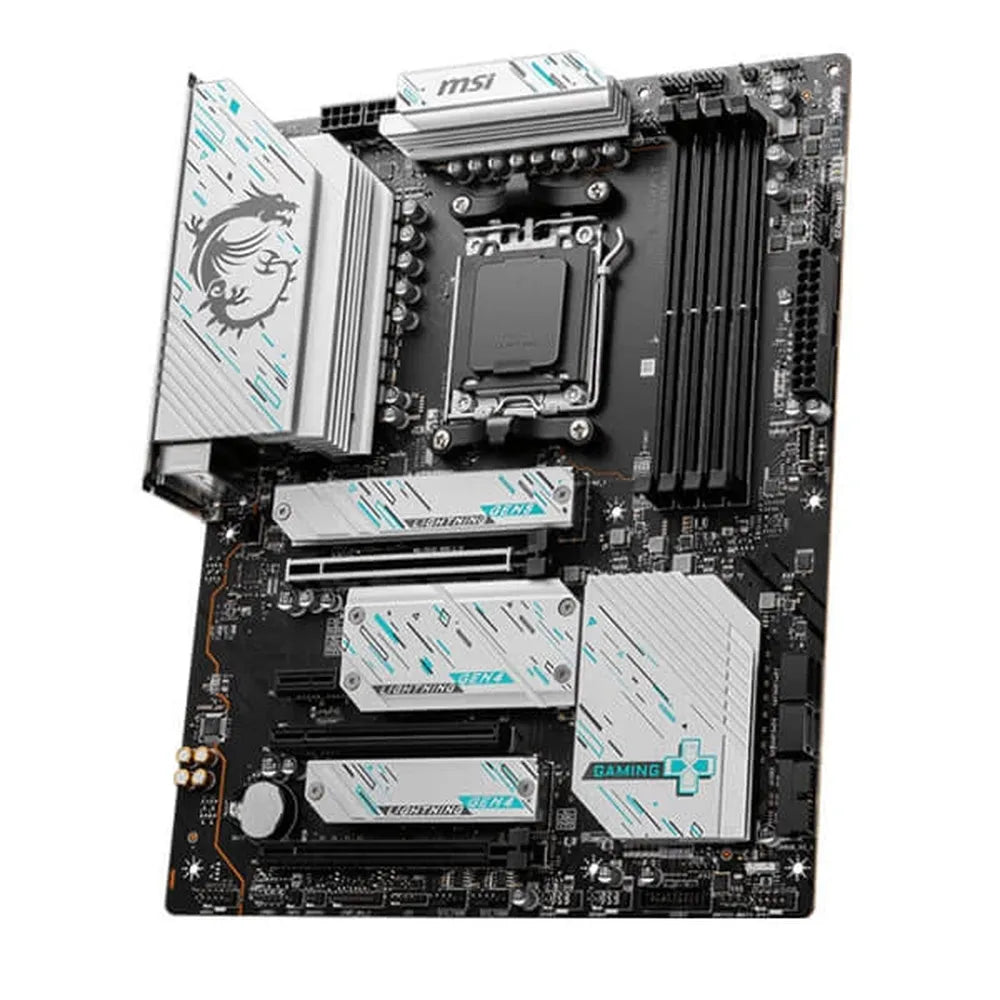

The MSI X670E Gaming Plus WIFI is a full-size ATX motherboard built on the AMD X670E chipset and Socket AM5 platform, designed to support AMD Ryzen 7000 and 8000 series desktop processors. With its forward-looking feature set and robust power delivery, it serves as a capable foundation for high-performance gaming and content-creation builds alike. At the heart of its power design sits a 14+2+1 Duet Rail Power System paired with dual 8-pin CPU power connectors, enabling stable delivery under sustained workloads. The board's thermal solution combines an Extended Heatsink, a Heavy Plated VRM Heatsink, and M.2 Shield Frozr covers, all reinforced with 7W/mK MOSFET thermal pads and additional choke thermal pads to maintain consistent temperatures across all cores. For storage, the board provides four M.2 slots: M.2_1 (CPU-direct, PCIe 5.0 x4, up to 22110/2280 form factor), M.2_2 (CPU-direct, PCIe 4.0 x4), M.2_3, and M.2_4 (both Chipset, PCIe 4.0 x4), supplemented by four SATA 6G ports. The primary PCIe x16 slot (PCI_E1) runs at PCIe 5.0 x16 from the CPU, delivering up to 128 GB/s of bandwidth for discrete graphics cards. The slot uses Surface Mount Technology (SMT) soldering to reduce electrical noise and reinforce support for heavy GPUs. Memory support spans four DDR5 UDIMM slots with a maximum capacity of 192 GB. Rated JEDEC base speed is DDR5-4800, with overclocking profiles reaching DDR5-7800+ MHz in a 1DPC 1R configuration via AMD EXPO. Dual-channel operation is supported; ECC and registered memory are not. Connectivity is extensive: AMD Wi-Fi 6E (802.11ax, 2.4/5/6 GHz bands, MU-MIMO, 160 MHz channel support) with Bluetooth 5.3 is pre-installed in the Key-E M.2 slot, and a Realtek RTL8125BG 2.5 Gbps wired LAN port covers high-speed wired networking. The rear I/O includes a USB 3.2 Gen 2x2 Type-C (20 Gbps), three USB 3.2 Gen 2 Type-A (10 Gbps), four USB 3.2 Gen 1 Type-A (5 Gbps), four USB 2.0, HDMI 2.1 (4K 60Hz), DisplayPort 1.4 (4K 60Hz), and a Flash BIOS Button for out-of-band firmware recovery. Audio is handled by a Realtek ALC897 codec in a 7.1-channel High Definition Audio configuration, with an Isolated Analogy Structure separating the audio connector shell from the board layout to reduce interference. RGB personalisation is available via two ARGB V2 headers and two standard RGB headers, controllable through MSI's Mystic Light. Four EZ Debug LEDs assist with rapid troubleshooting during POST. Verifiable Specifications: - Chipset: AMD X670E | Socket: AM5 - CPU Support: AMD Ryzen 7000 / 8000 Series Desktop - Form Factor: ATX (243.84 mm x 304.8 mm) - Memory: 4x DDR5 UDIMM, max 192 GB, DDR5-4800 JEDEC / up to DDR5-7800+(OC), AMD EXPO - PCIe: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 3.0 x1 (Chipset) - Storage: 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) + 4x SATA 6G - LAN: Realtek RTL8125BG 2.5 Gbps - Wireless: AMD Wi-Fi 6E + Bluetooth 5.3 - Audio: Realtek ALC897, 7.1-channel HD Audio - Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 3x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1 Type-A, 4x USB 2.0 - Video Out: HDMI 2.1 (4K 60Hz), DisplayPort 1.4 (4K 60Hz) - PCB: 6-layer, 2oz copper - OS: Windows 11 / Windows 10 (64-bit) - Warranty: 3 Years
