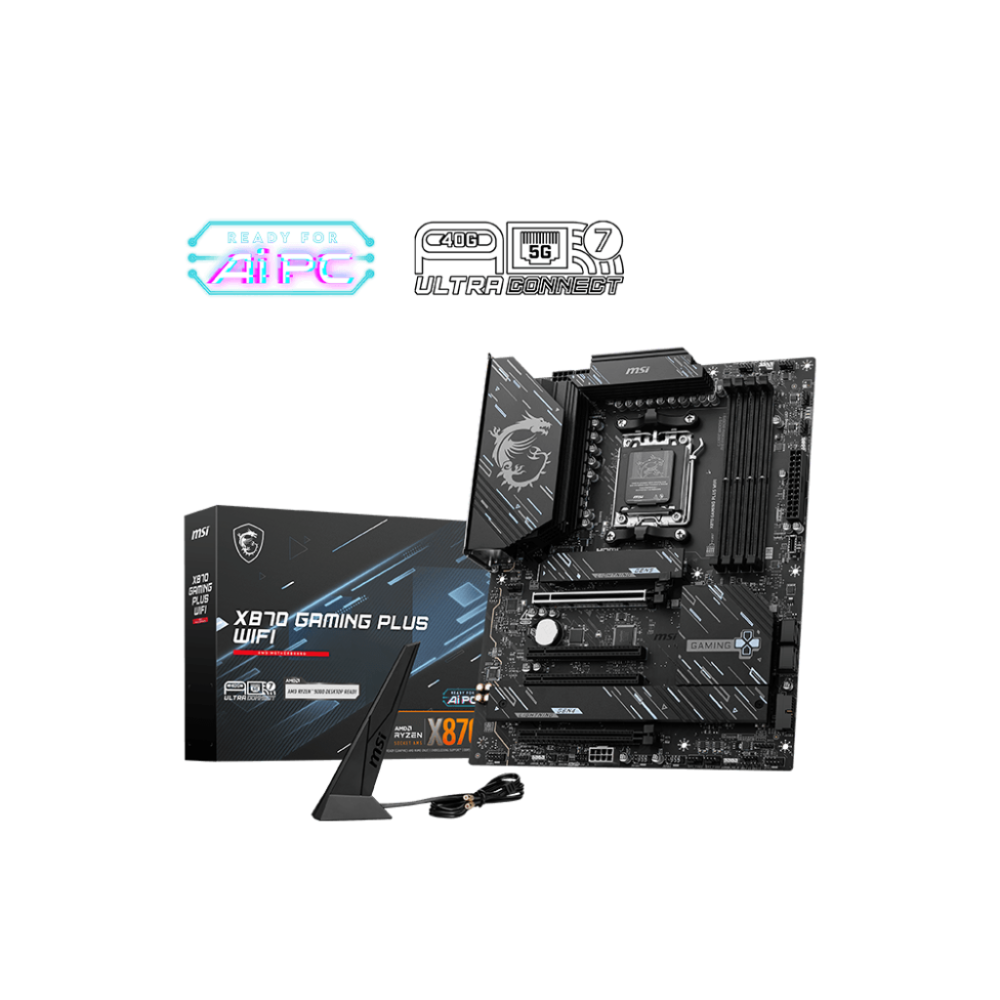

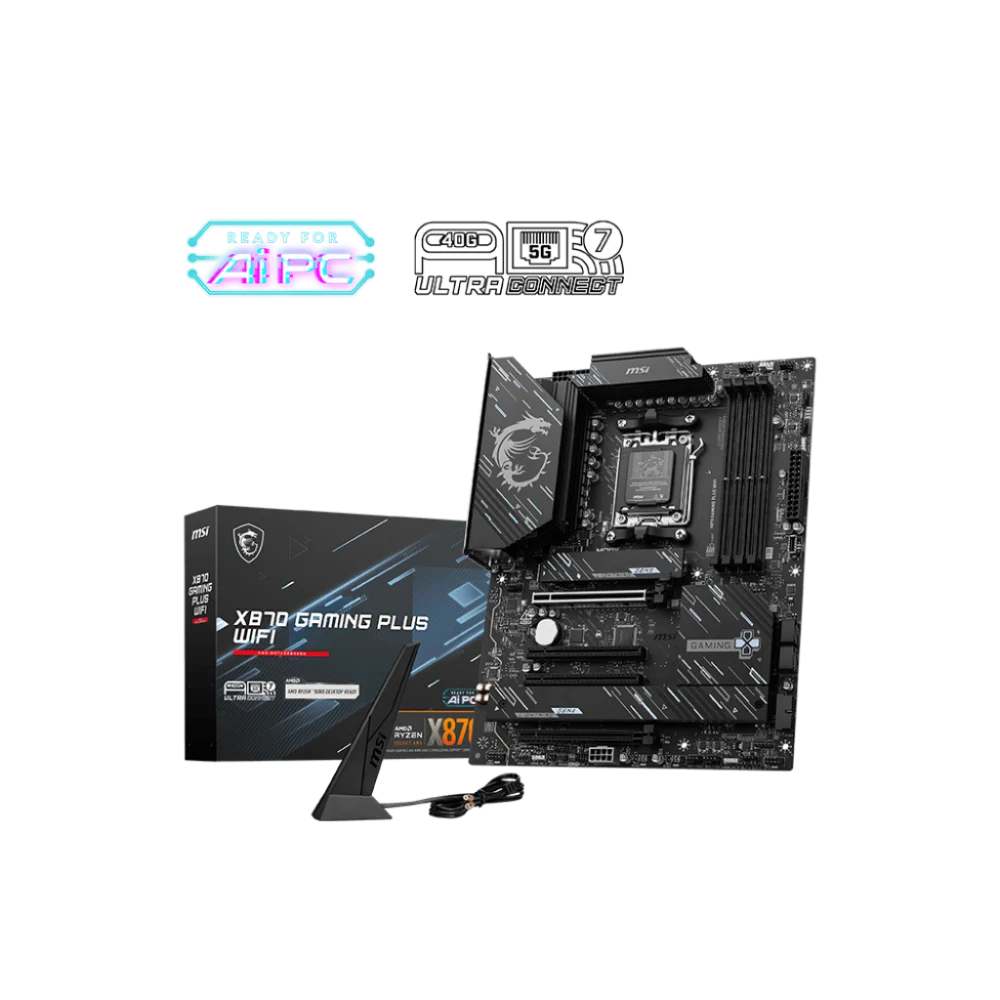

MSI X870 Gaming Plus WIFI DDR5 AMD Motherboard

The MSI X870 Gaming Plus WIFI is an ATX form-factor motherboard built on the AMD X870 chipset, designed for AMD Ryzen 9000, 8000, and 7000 series desktop processors via the AM5 socket. It is a capable platform for enthusiast gaming and content-creation builds that demand cutting-edge connectivity and memory performance. At the heart of its power delivery sits a 14+2+1 digital power phase design, paired with dual 8-pin CPU power connectors and 60A Smart Power Stage components. The PCB is constructed with 8-layer, 2oz thickened copper, reinforcing signal integrity and thermal conductivity. Complementing this is MSI's Frozr Guard cooling solution, which incorporates an extended heatsink, MOSFET thermal pads rated at 7W/mK, and EZ M.2 Shield Frozr II heatsinks to keep storage temperatures in check during sustained workloads. Memory support is provided through four DDR5 UDIMM slots with a maximum capacity of 256 GB. With AMD EXPO and XMP-style overclocking enabled, a single-rank, single-DIMM-per-channel configuration can reach DDR5 8200 MT/s (OC). Standard JEDEC speeds range from 4800 to 5600 MT/s. CUDIMM is supported in clock-driver bypass mode. Connectivity is a standout area: a single primary PCIe 5.0 x16 slot serves the GPU (for Ryzen 9000/7000 series), while the primary M.2 slot (from CPU) supports PCIe 5.0 x4 NVMe drives. Two additional M.2 slots from the chipset support PCIe 4.0 x4 and PCIe 4.0 x2 respectively, and four SATA 6 Gbps ports are also available. RAID 0 and RAID 1 are supported for M.2 NVMe devices. Networking is handled by a Realtek 8126VB 5G wired LAN controller alongside an integrated Wi-Fi 7 module (802.11be) supporting 2.4 GHz, 5 GHz, and 6 GHz bands with MU-MIMO and up to 5.8 Gbps throughput, as well as Bluetooth 5.4 with MLO and 4K-QAM. USB connectivity spans a USB 40Gbps Type-C port (USB4), a USB 20Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, and USB 2.0 ports across rear and front headers. Display output includes HDMI 2.1 (4K 60 Hz) and DisplayPort 1.4 via the USB4 Type-C port, available on processors with integrated graphics. Additional features include EZ DIY elements—EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna—for tool-reduced component installation, four EZ Debug LEDs for rapid POST diagnosis, three addressable RGB V2 headers and one standard RGB header, Transient Voltage Suppressors across critical circuits, and a Flash BIOS Button with Clear CMOS Button on the rear I/O. Audio is provided via a Realtek ALC897 codec with 7.1-channel HD audio output. The board carries a 3-year warranty and supports Windows 11 64-bit. Verified Specifications: - Chipset: AMD X870 - Socket: AM5 - CPU Compatibility: AMD Ryzen 9000 / 8000 / 7000 Series Desktop - Form Factor: ATX (243.84 mm x 304.8 mm) - Memory: 4x DDR5 UDIMM; max 256 GB; up to DDR5 8200 MT/s (OC, 1DPC 1R); 4800–5600 MT/s JEDEC - Primary M.2: PCIe 5.0 x4 (CPU); secondary M.2 slots: PCIe 4.0 x4 and PCIe 4.0 x2 (chipset) - SATA: 4x SATA 6 Gbps - GPU Slot: PCIe 5.0 x16 (primary, from CPU) - LAN: Realtek 8126VB 5G - Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4 - USB (Rear): 1x USB4 40Gbps Type-C, 1x 20Gbps Type-C, 2x 10Gbps Type-A, 2x 5Gbps Type-A, 4x USB 2.0 - Audio: Realtek ALC897, 7.1-channel HD - Power Phases: 14+2+1 - Warranty: 3 Years
